Browse by terminal block family or search a model and pitch. Product data supports initial selection; final ratings and configuration are confirmed before order.
53 models shown
Pluggable Terminal Blocks
Plugs and headers for serviceable PCB connections, with vertical, right-angle, latch and flange options.

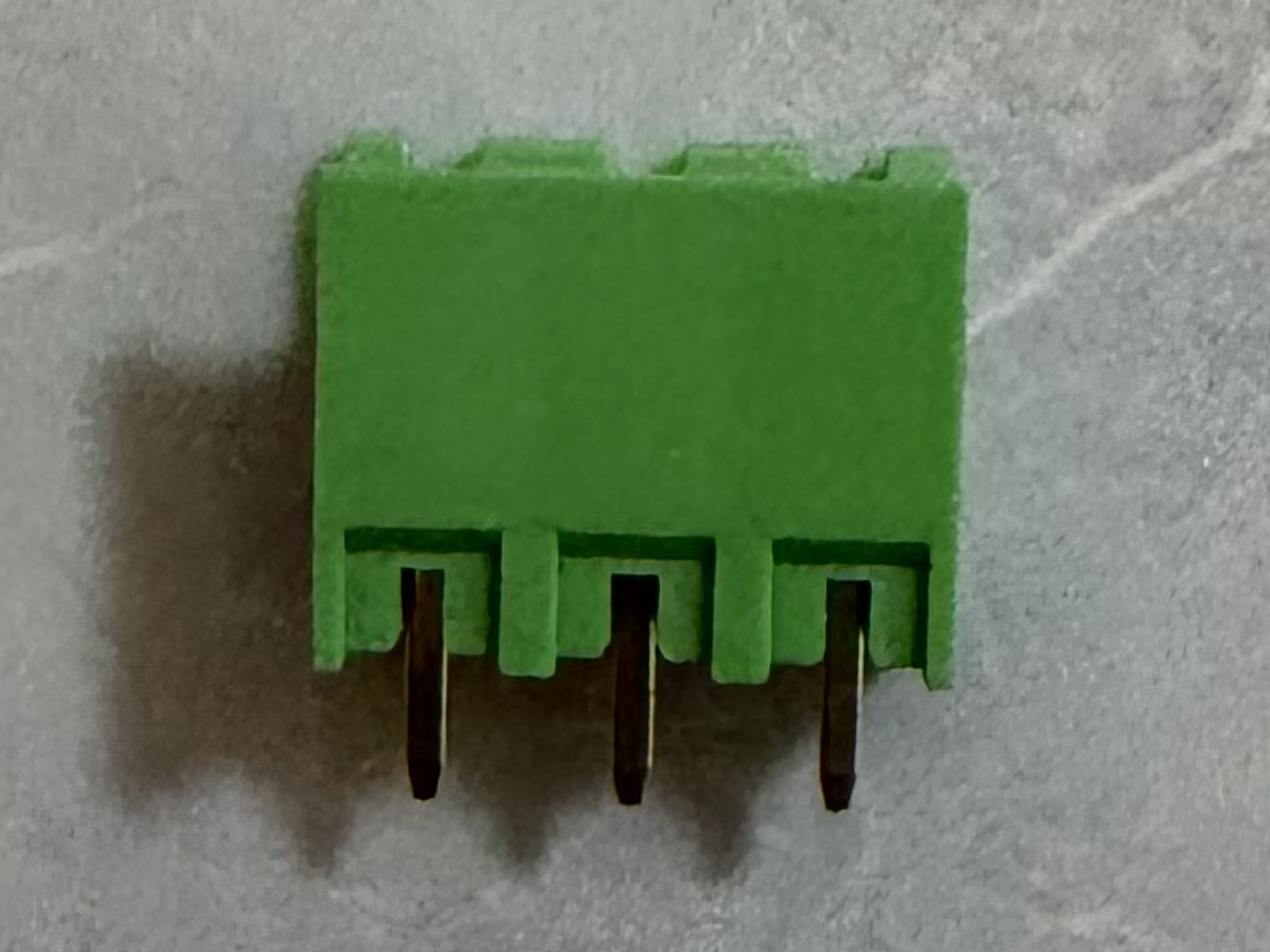

KF2EDG-5.08
5.08mm pluggable terminal block
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

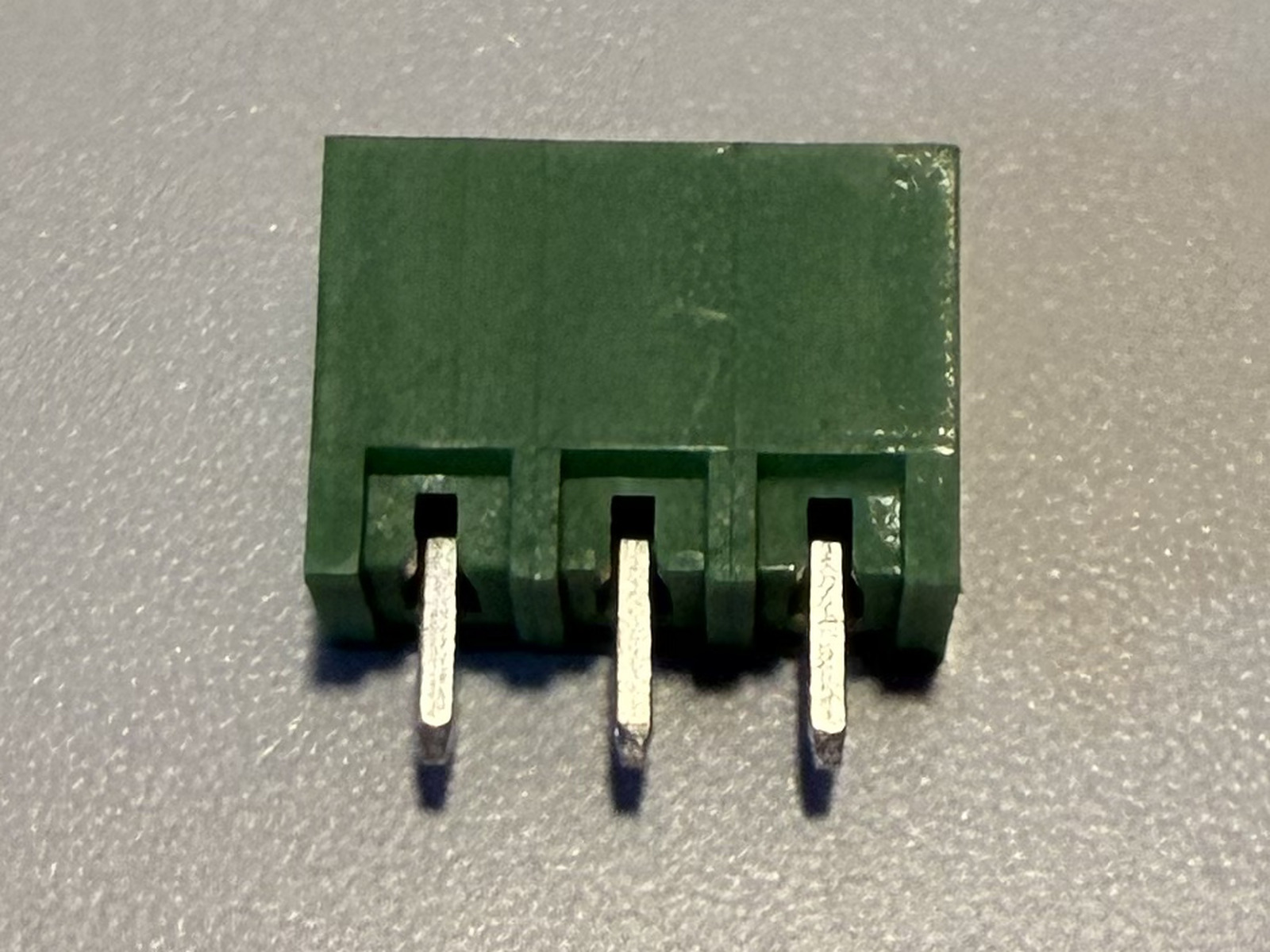

KF2EDG-5.08 Pin Header
Male pin header
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

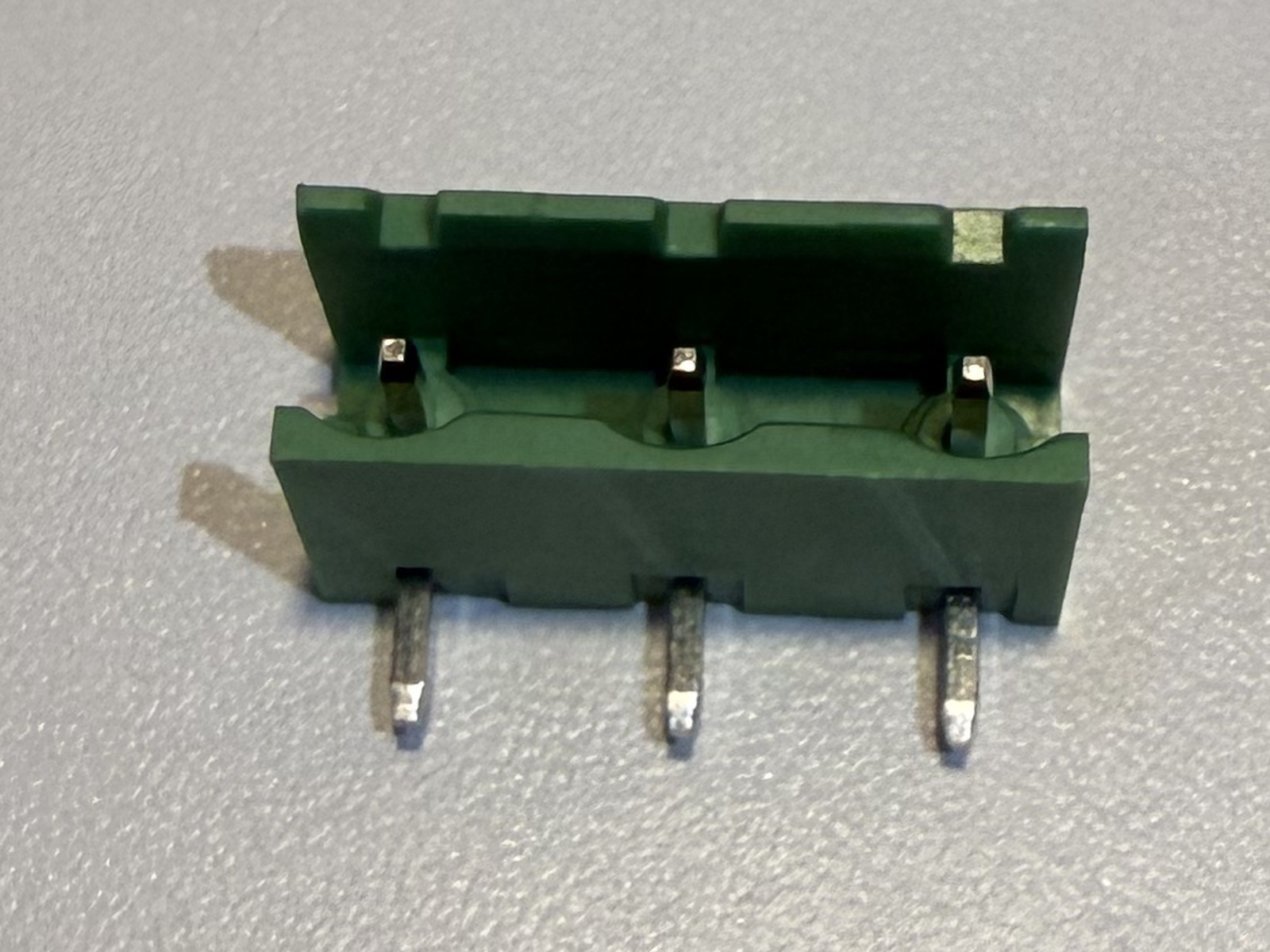

KF2EDG-7.62 Pin Header
Wide-pitch, high-current male pin header
- Pitch
- 7.62mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A (UL) / 30A (IEC)

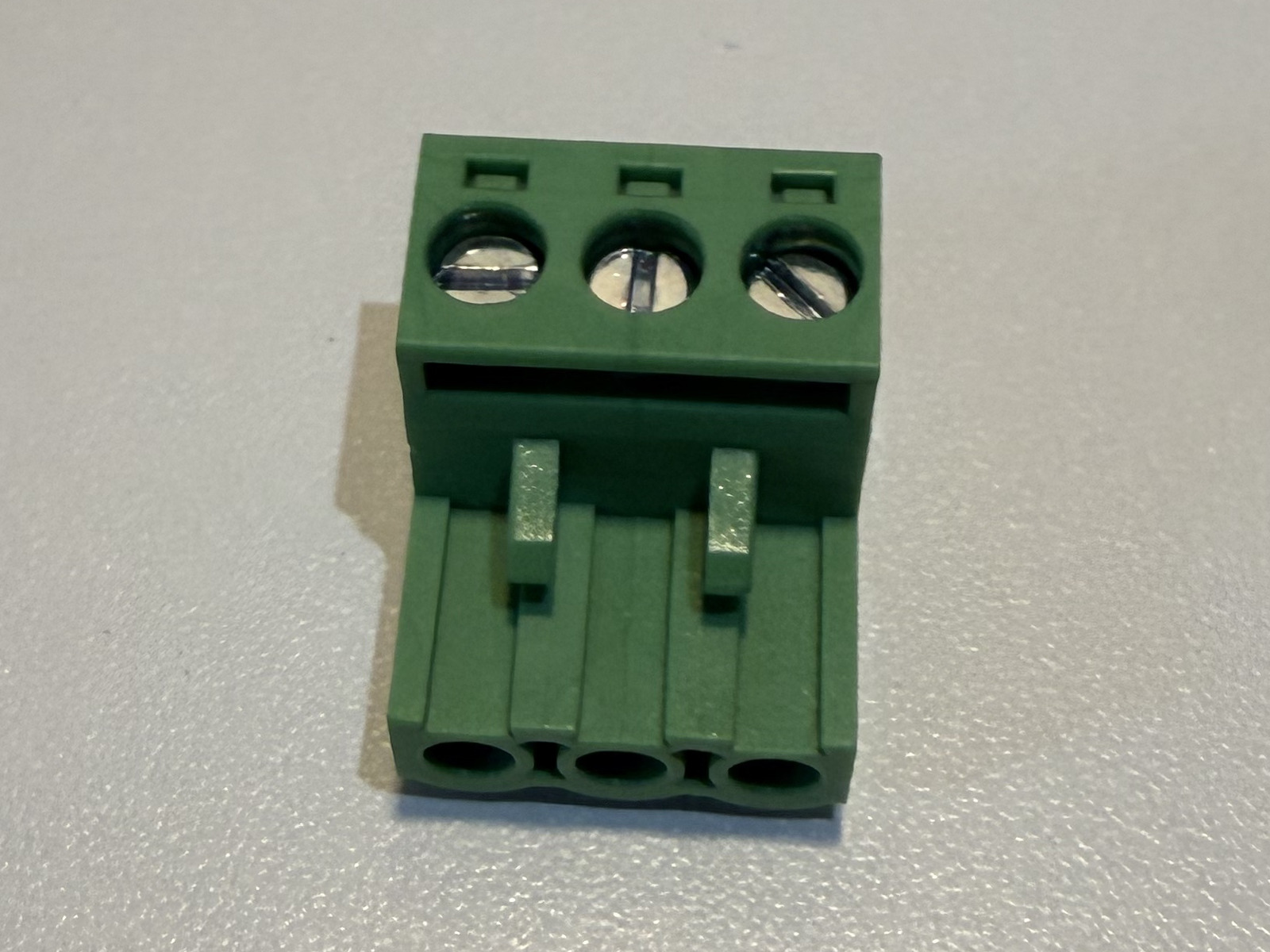

KF2EDGK-5.0
Locking latch for a secure connection
- Pitch
- 5.0mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

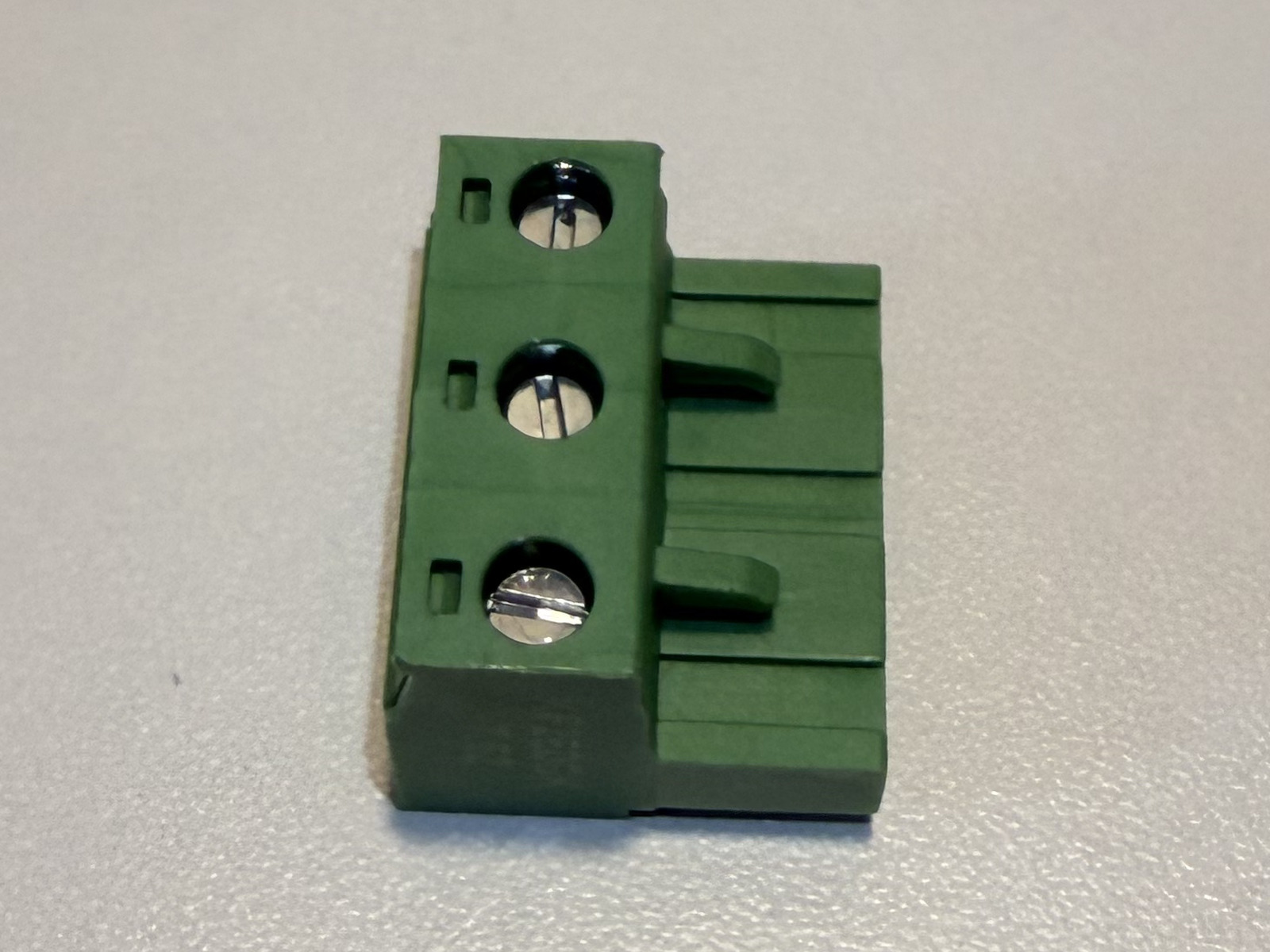

KF2EDGK-7.62
Wide-pitch, high-current design with locking latch
- Pitch
- 7.62mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A (UL) / 30A (IEC)

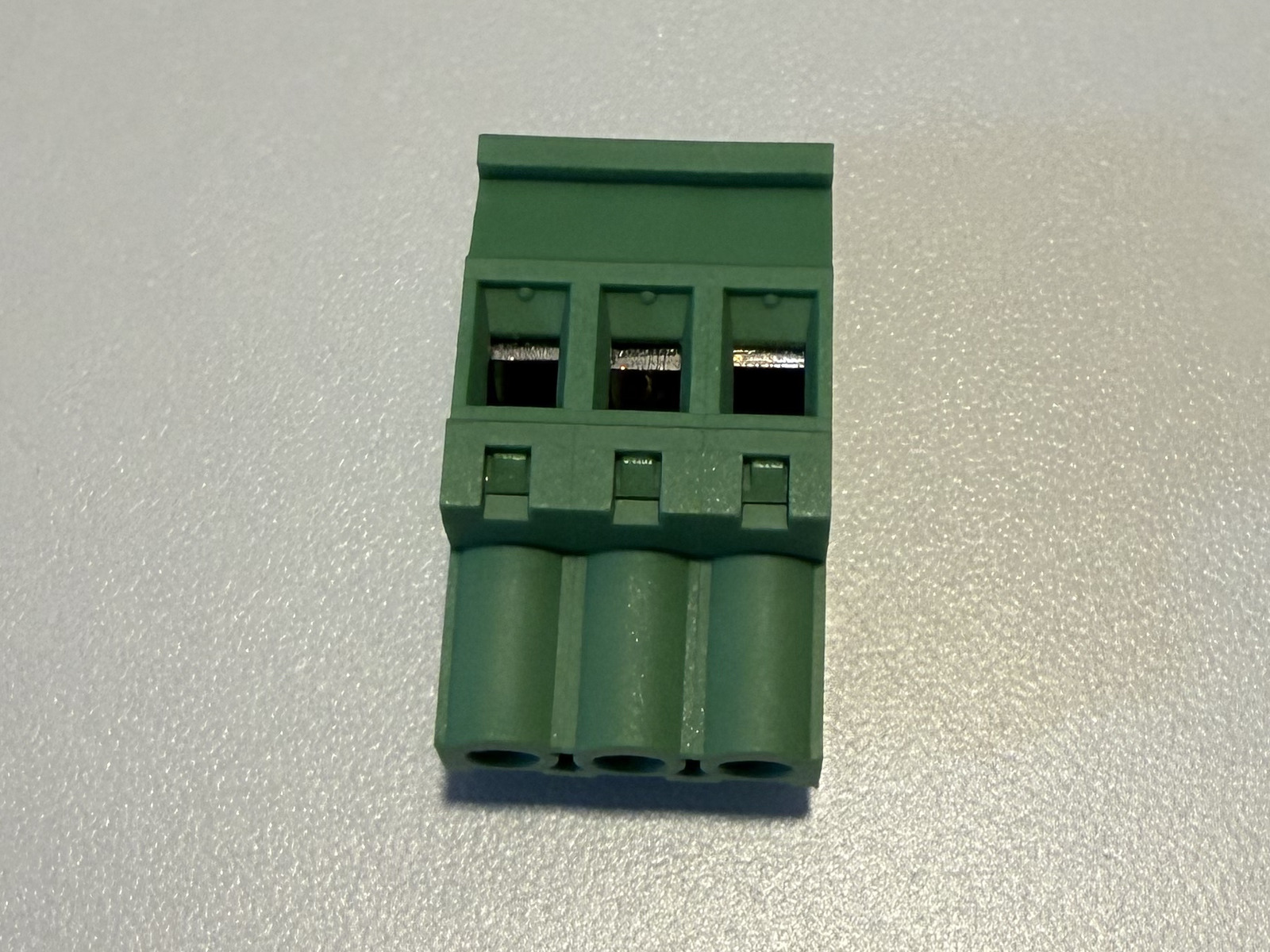

KF2EDGKA(B)-5.08
A/B latch options for multiple locking configurations
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

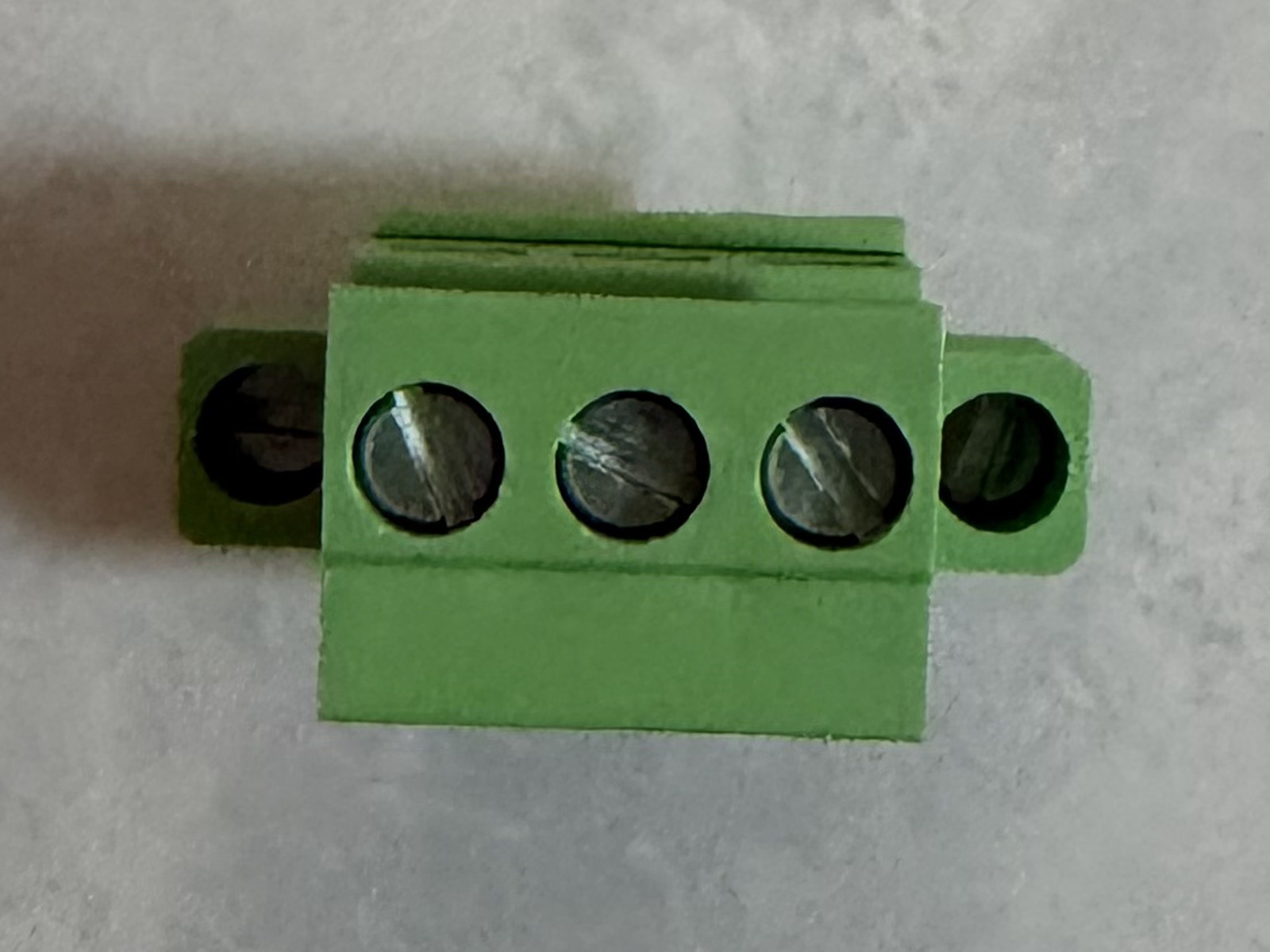

KF2EDGKA(B)M-5.08
A/B latch options with mounting flange
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

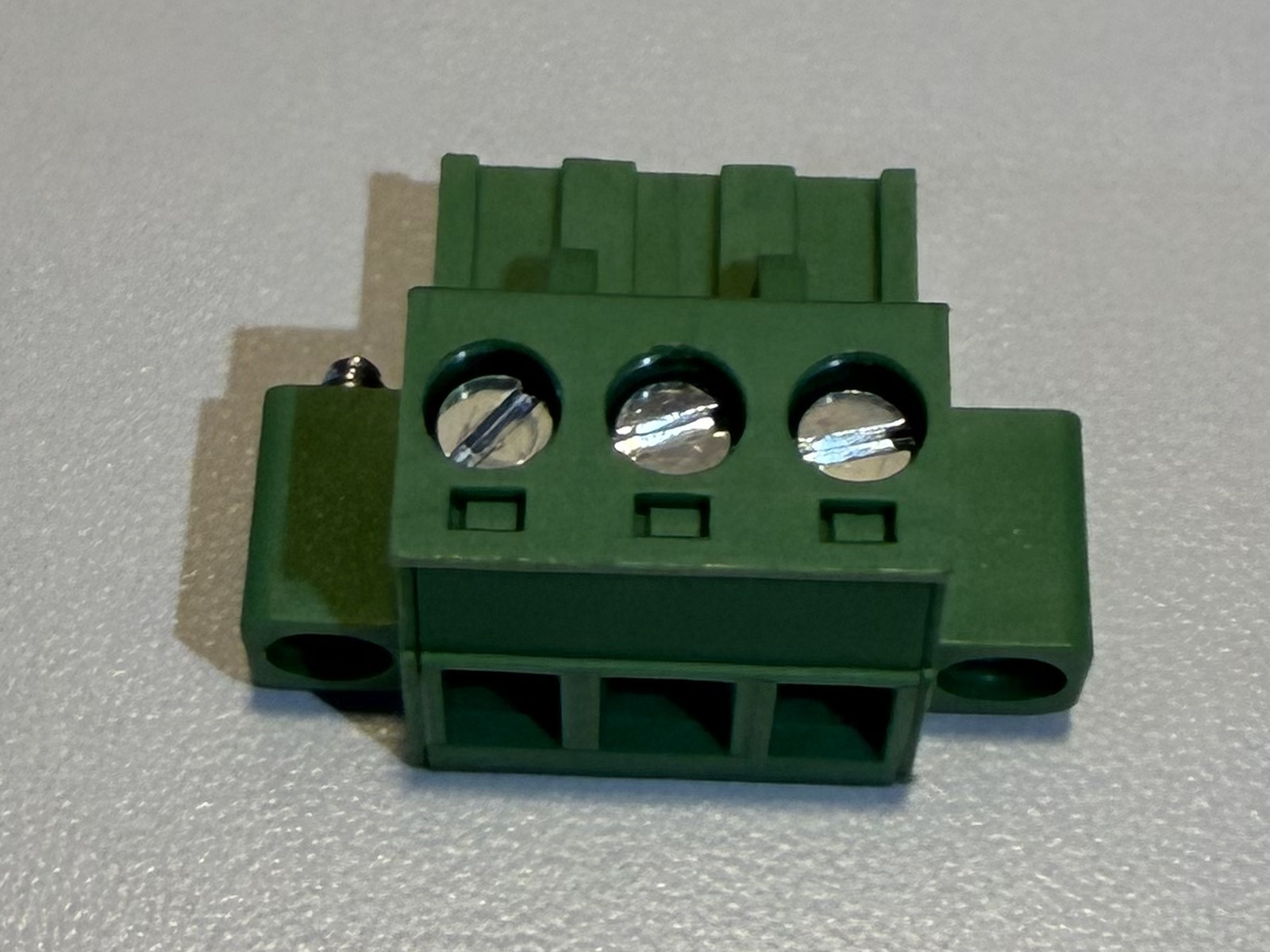

KF2EDGKM-5.08
Locking latch with mounting flange
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

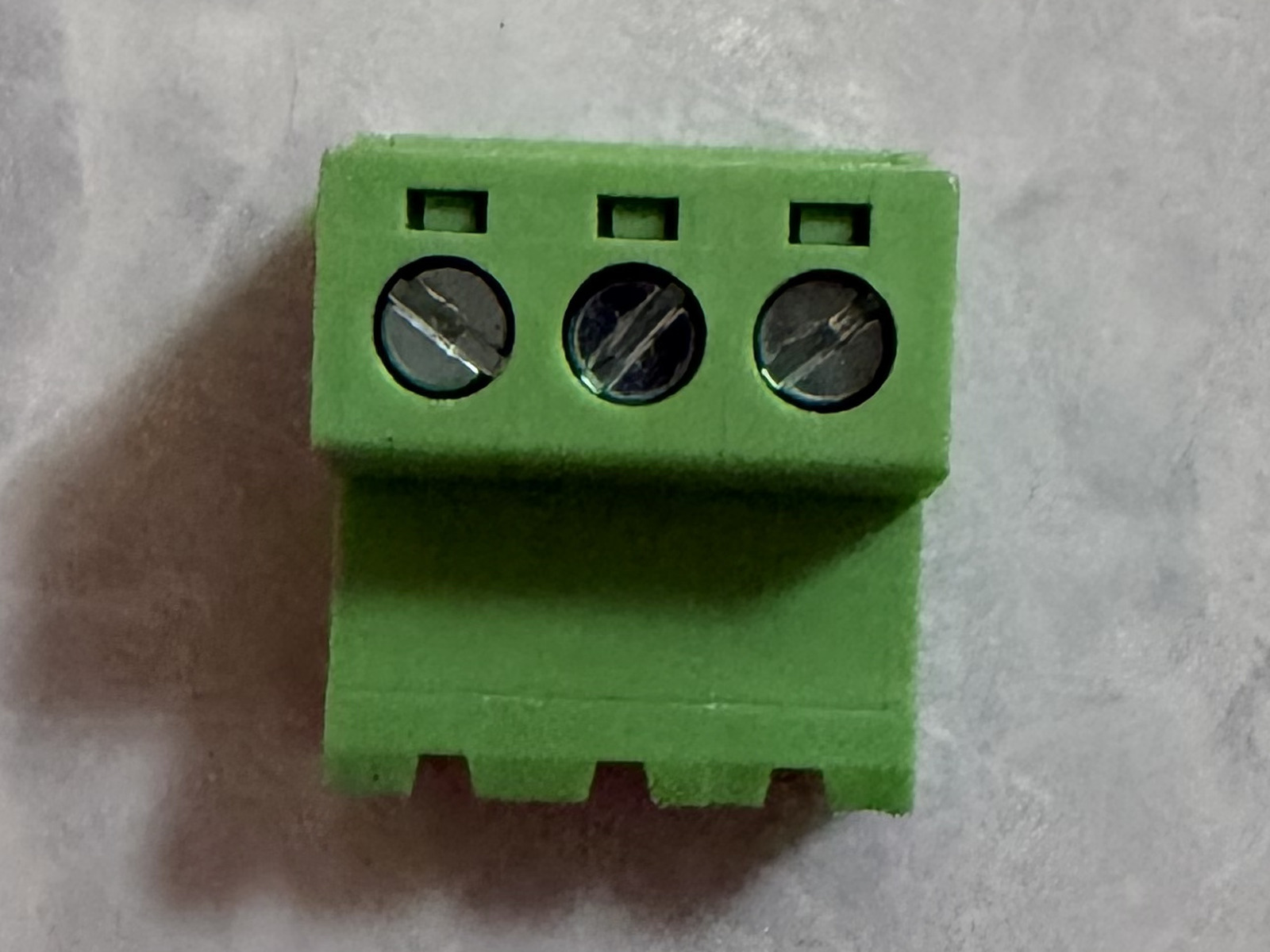

KF2EDGRK-5.08
Right-angle pins with locking latch
- Pitch
- 5.08mm
- Mounting
- Right-angle PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

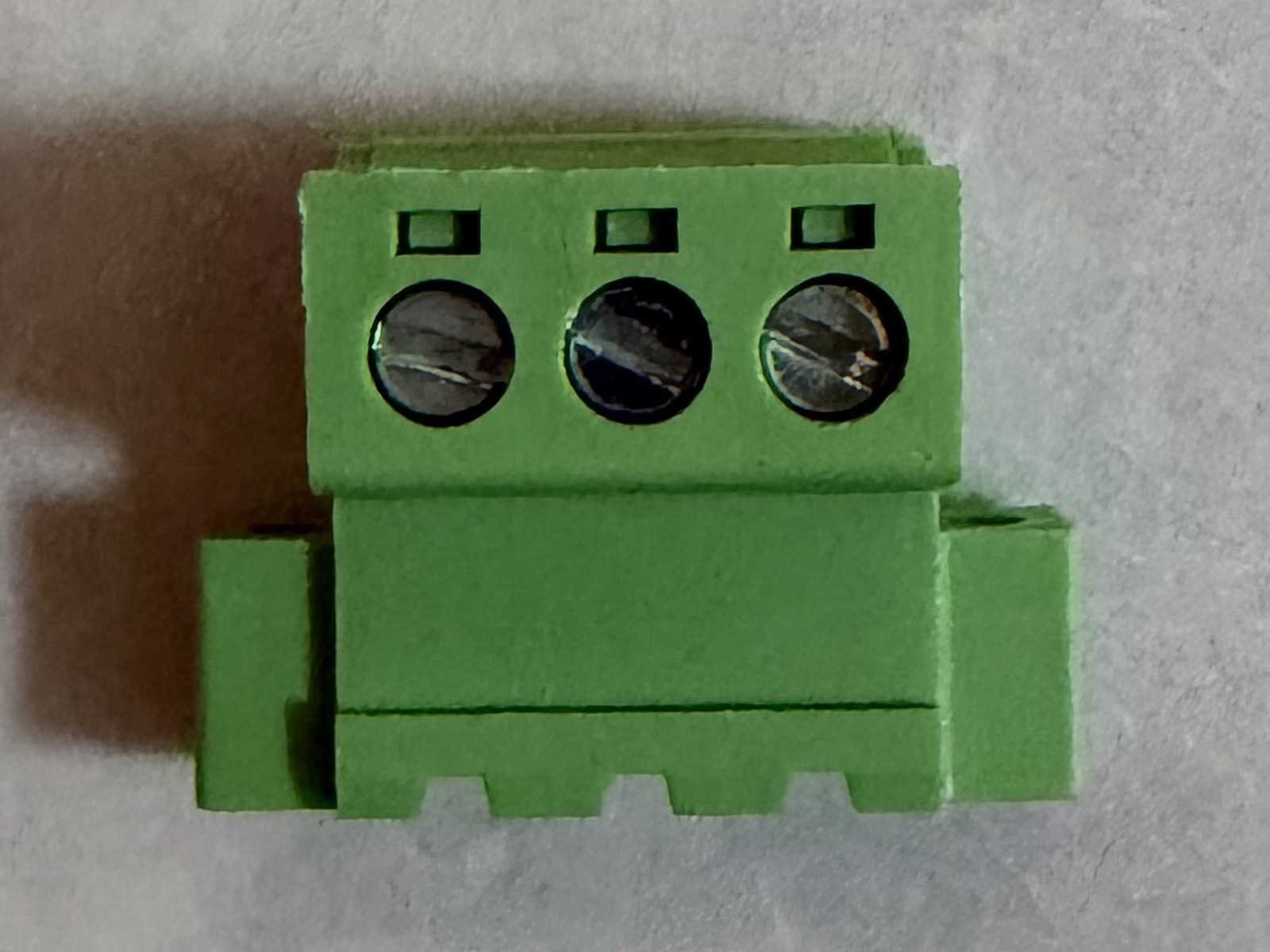

KF2EDGRKP-5.08
Right-angle pins, locking latch and mounting flange
- Pitch
- 5.08mm
- Mounting
- Right-angle PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

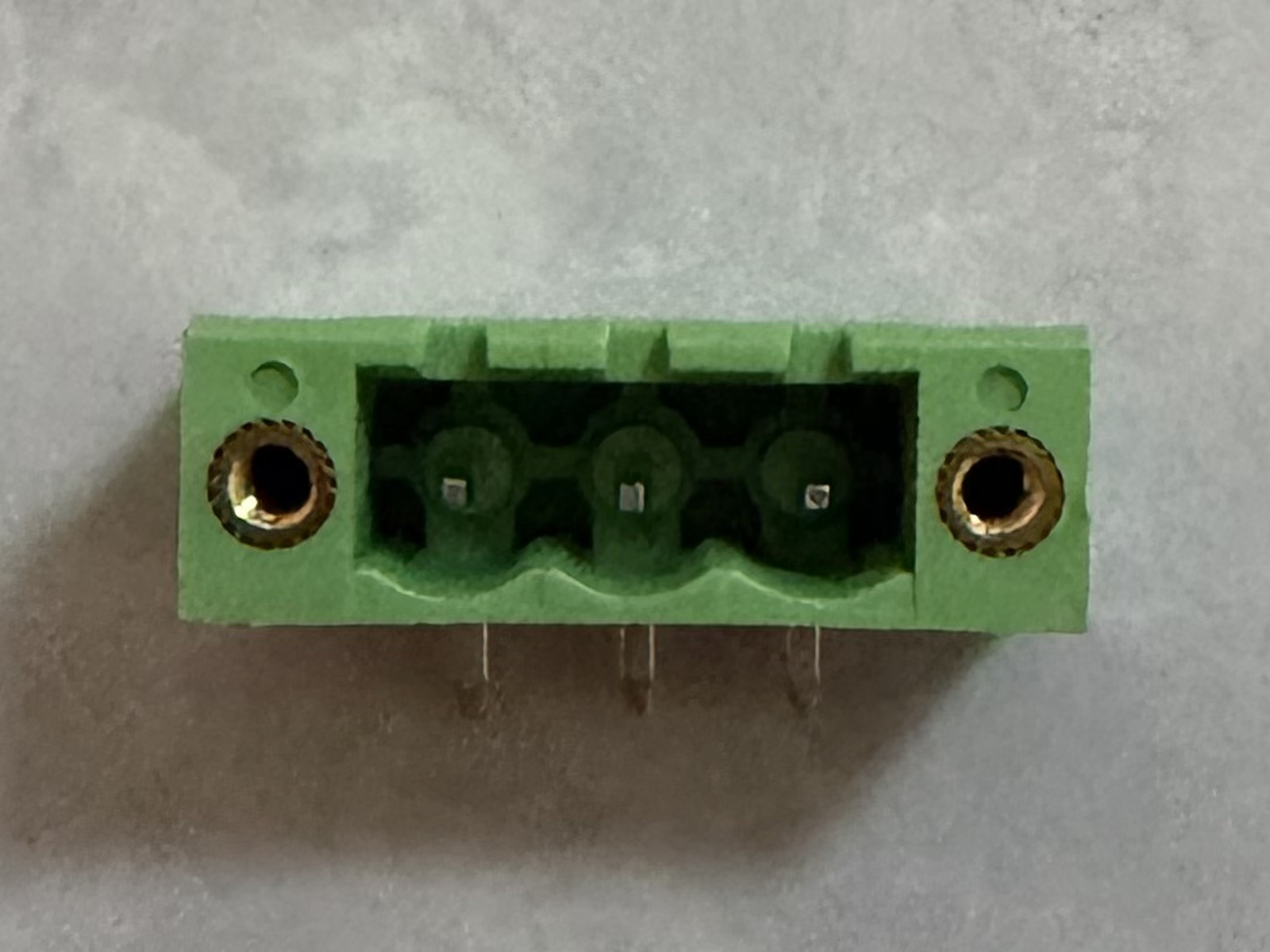

KF2EDGRP-5.08 Pin Header
Right-angle male pin header with mounting flange
- Pitch
- 5.08mm
- Mounting
- Right-angle PCB mount
- Rated current
- 15A (UL) / 20A (IEC)

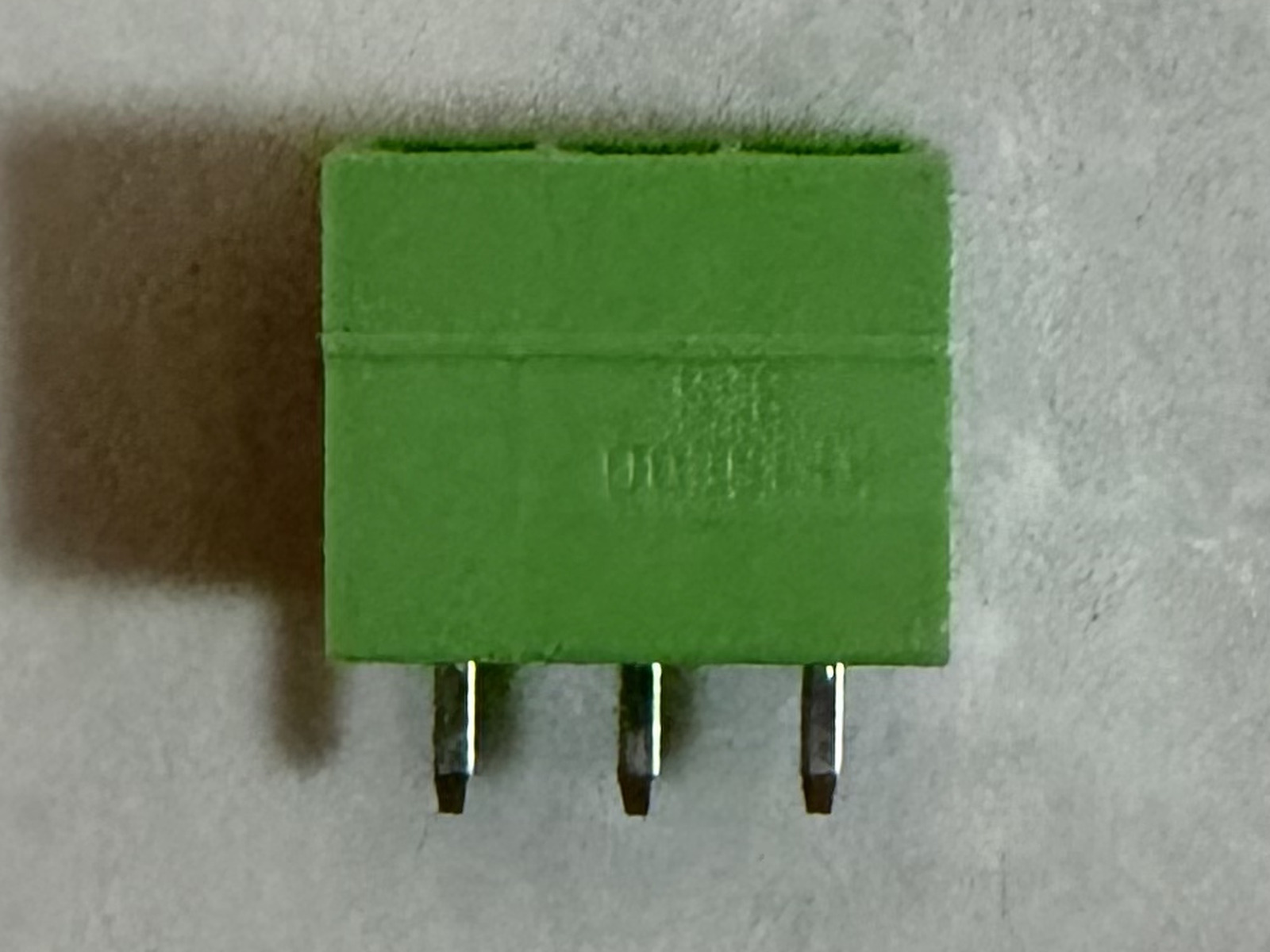

KF15EDG-3.5
3.5mm pluggable terminal block
- Pitch
- 3.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 8A

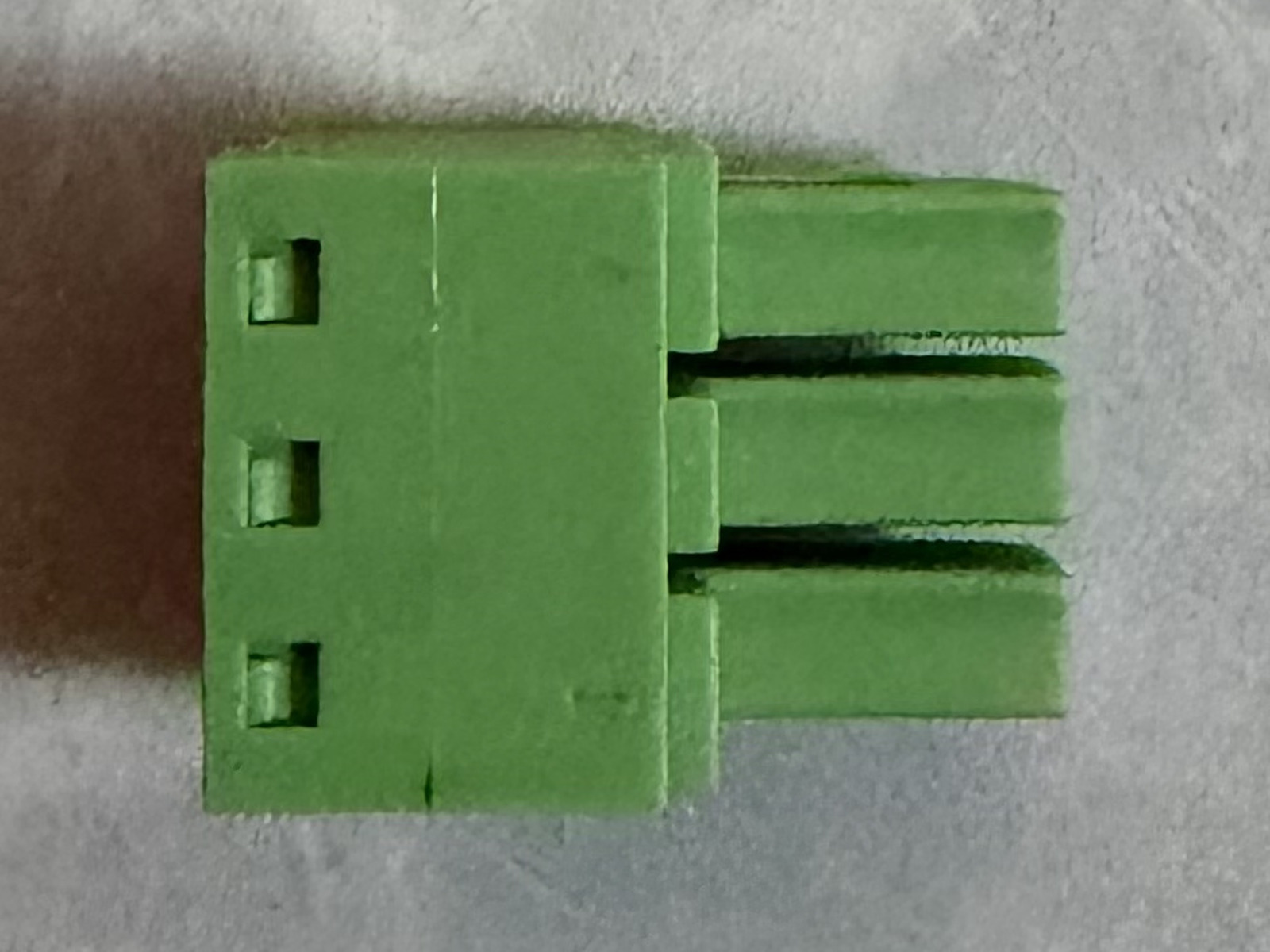

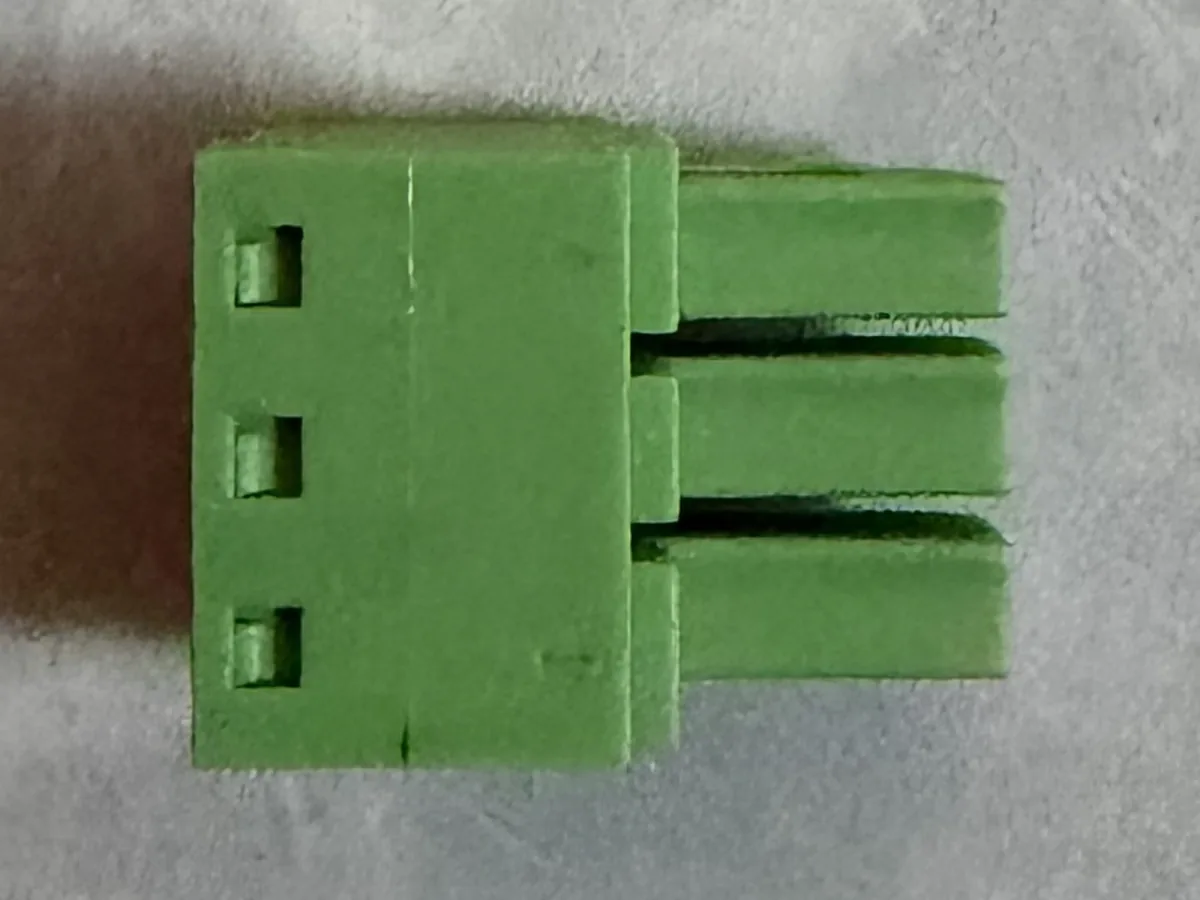

KF15EDGK-3.5
Locking latch for a secure connection
- Pitch
- 3.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 7A

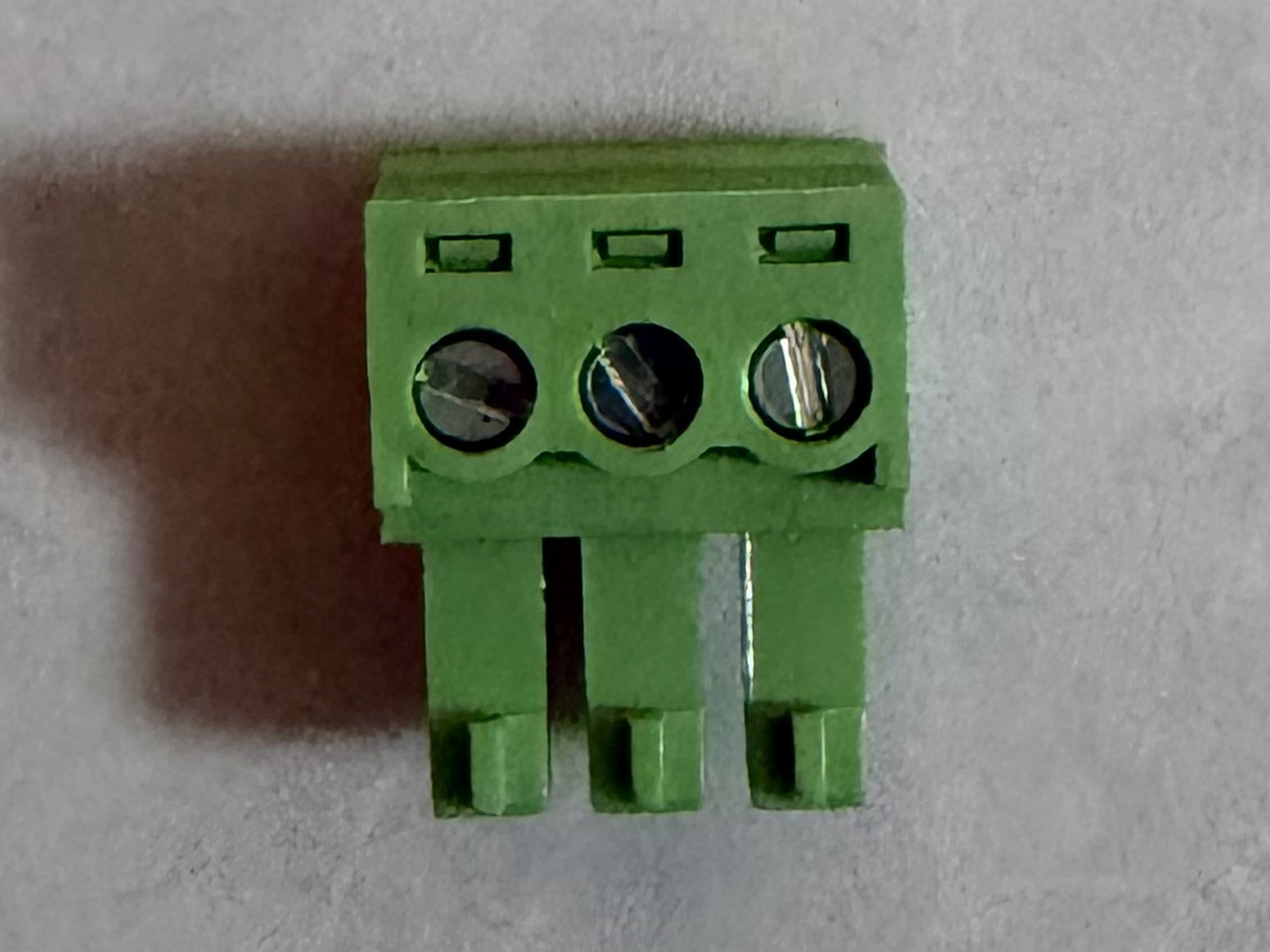

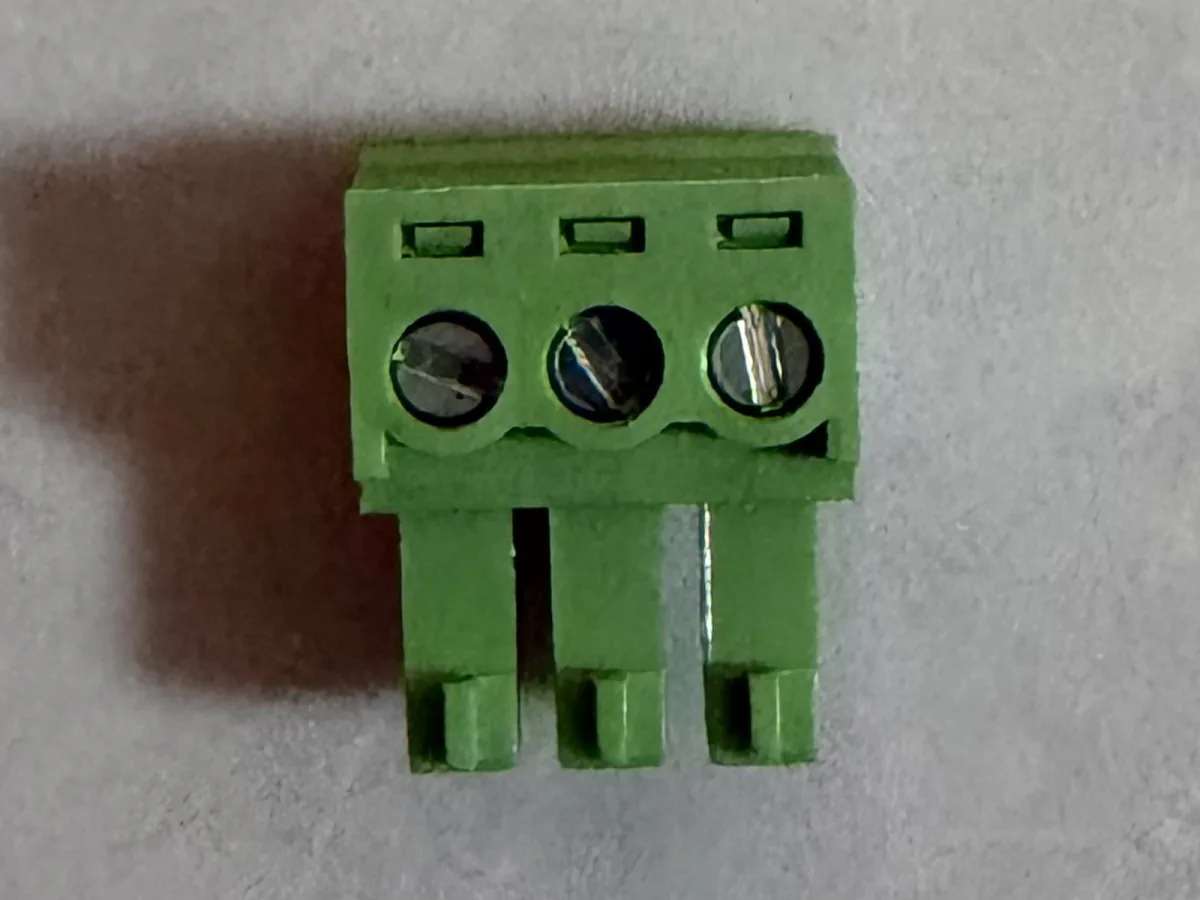

KF15EDGK-3.81
Locking latch for a secure connection
- Pitch
- 3.81mm
- Mounting
- Vertical PCB mount
- Rated current
- 10A

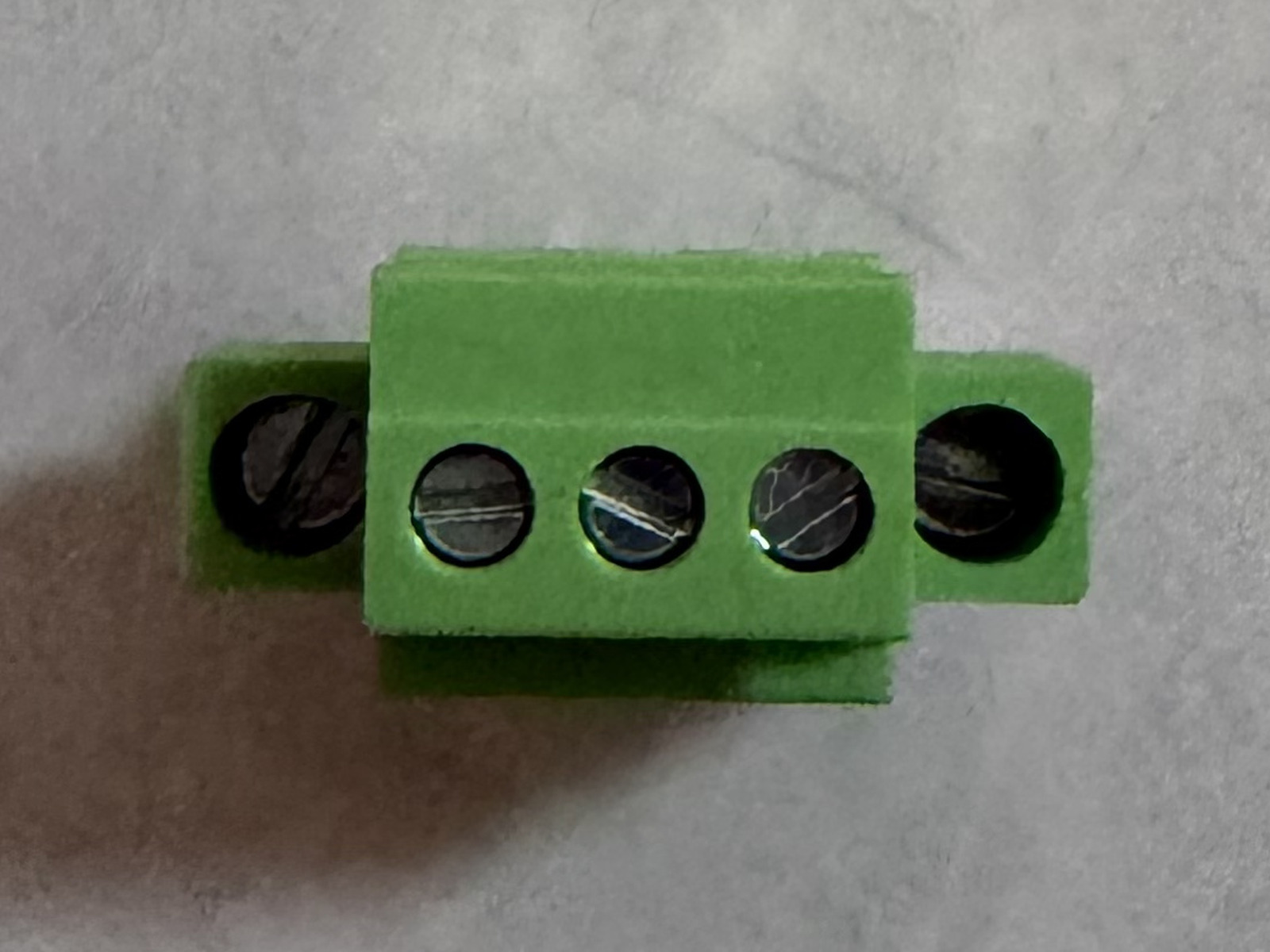

KF15EDGKA(B)M-3.81
Screw-clamp plug with A/B latch options and mounting flange
- Pitch
- 3.81mm
- Mounting
- Vertical PCB mount
- Rated current
- 10A

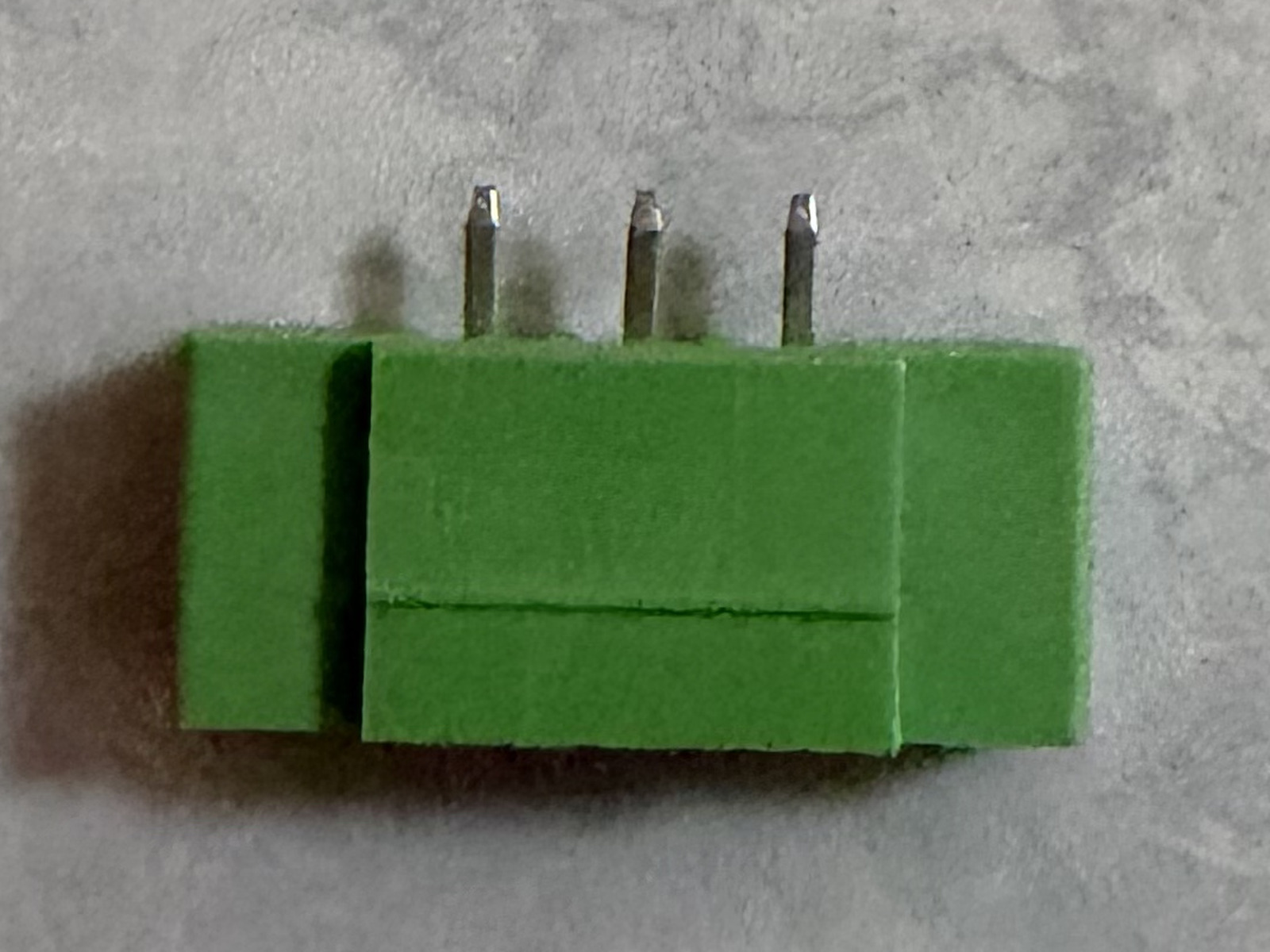

KF15EDGKP-3.81
Locking latch with mounting flange
- Pitch
- 3.81mm
- Mounting
- Vertical PCB mount
- Rated current
- 10A

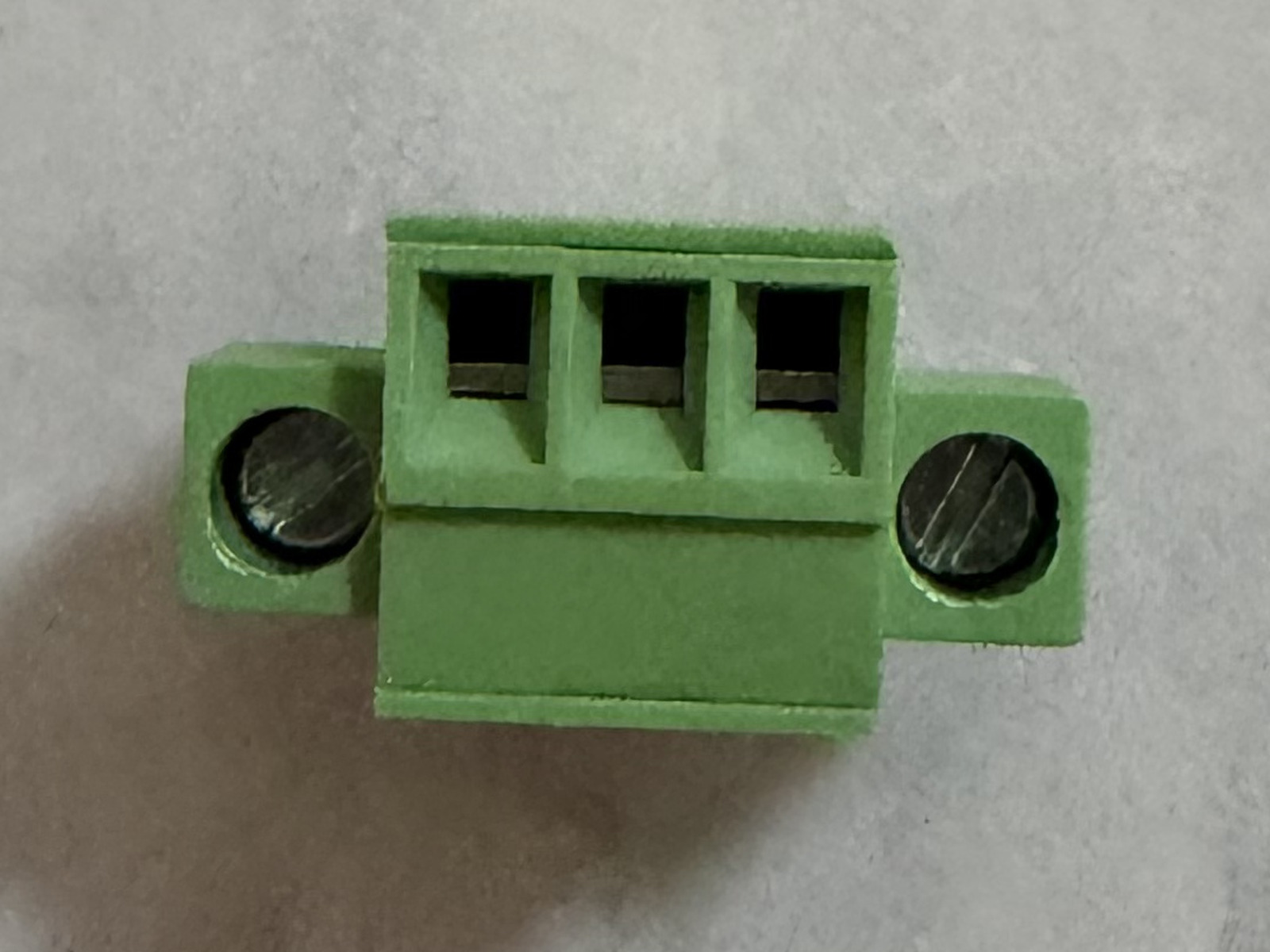

KF15EDGKR-3.5
Locking latch with right-angle pins
- Pitch
- 3.5mm
- Mounting
- Right-angle PCB mount
- Rated current
- 7A

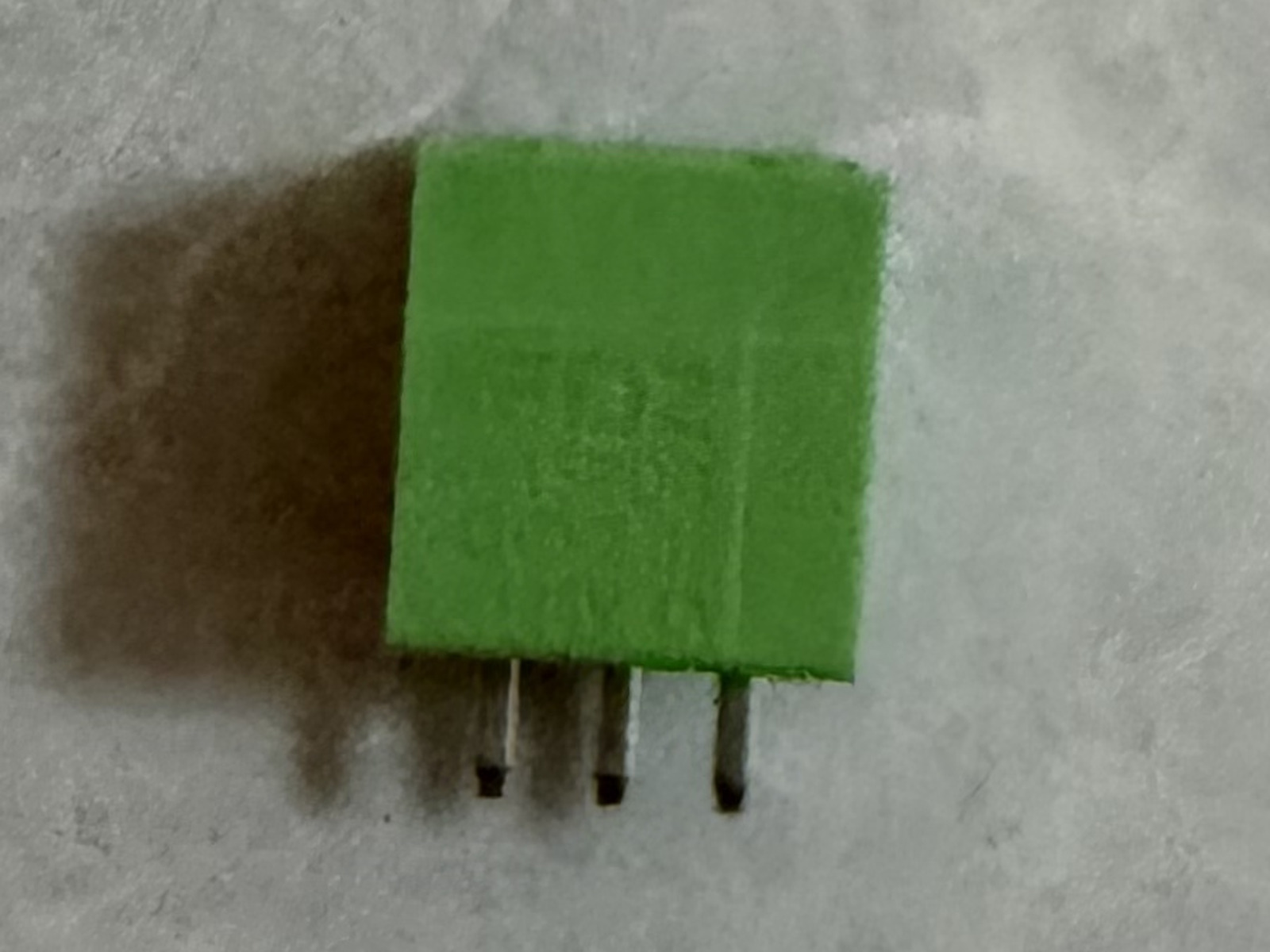

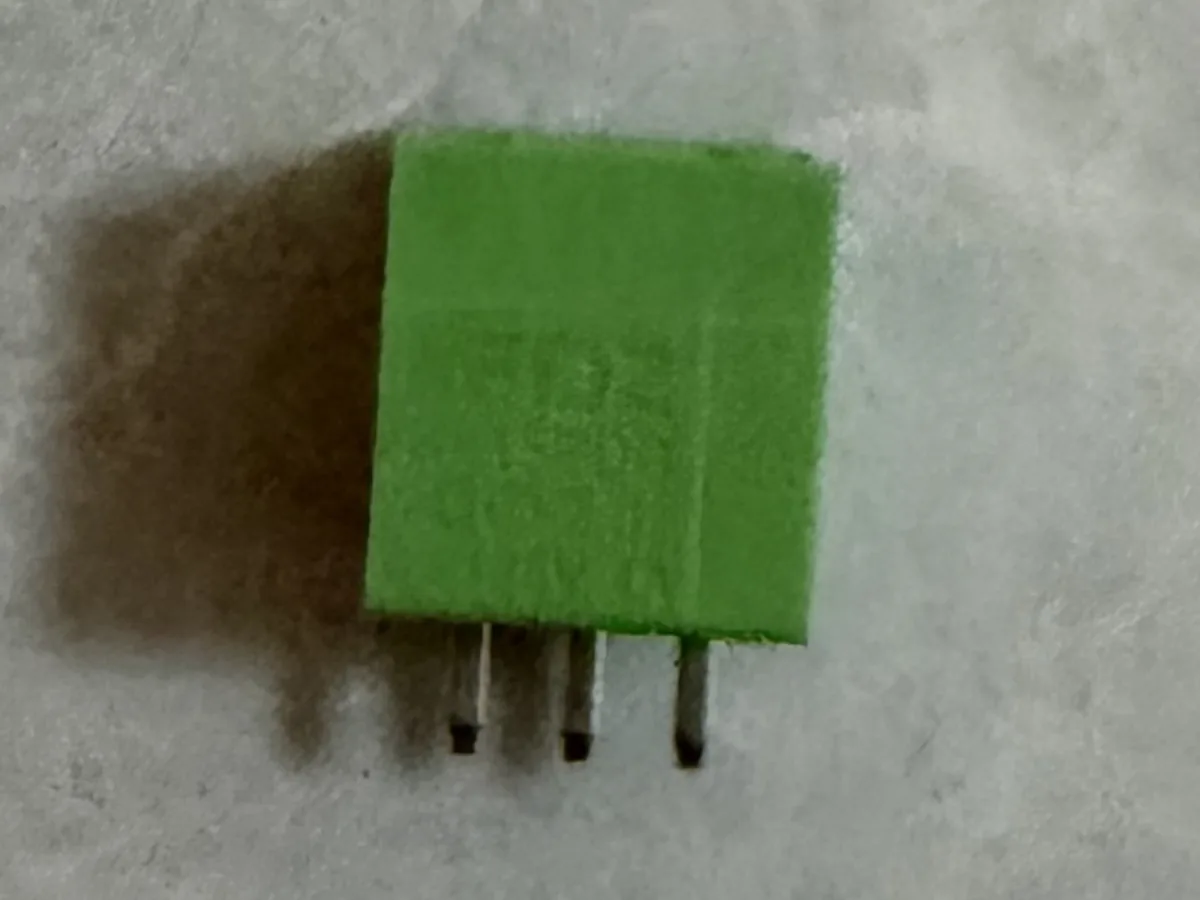

KF15EDGOC-2.5
Push-button spring connection without screws
- Pitch
- 2.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 6A

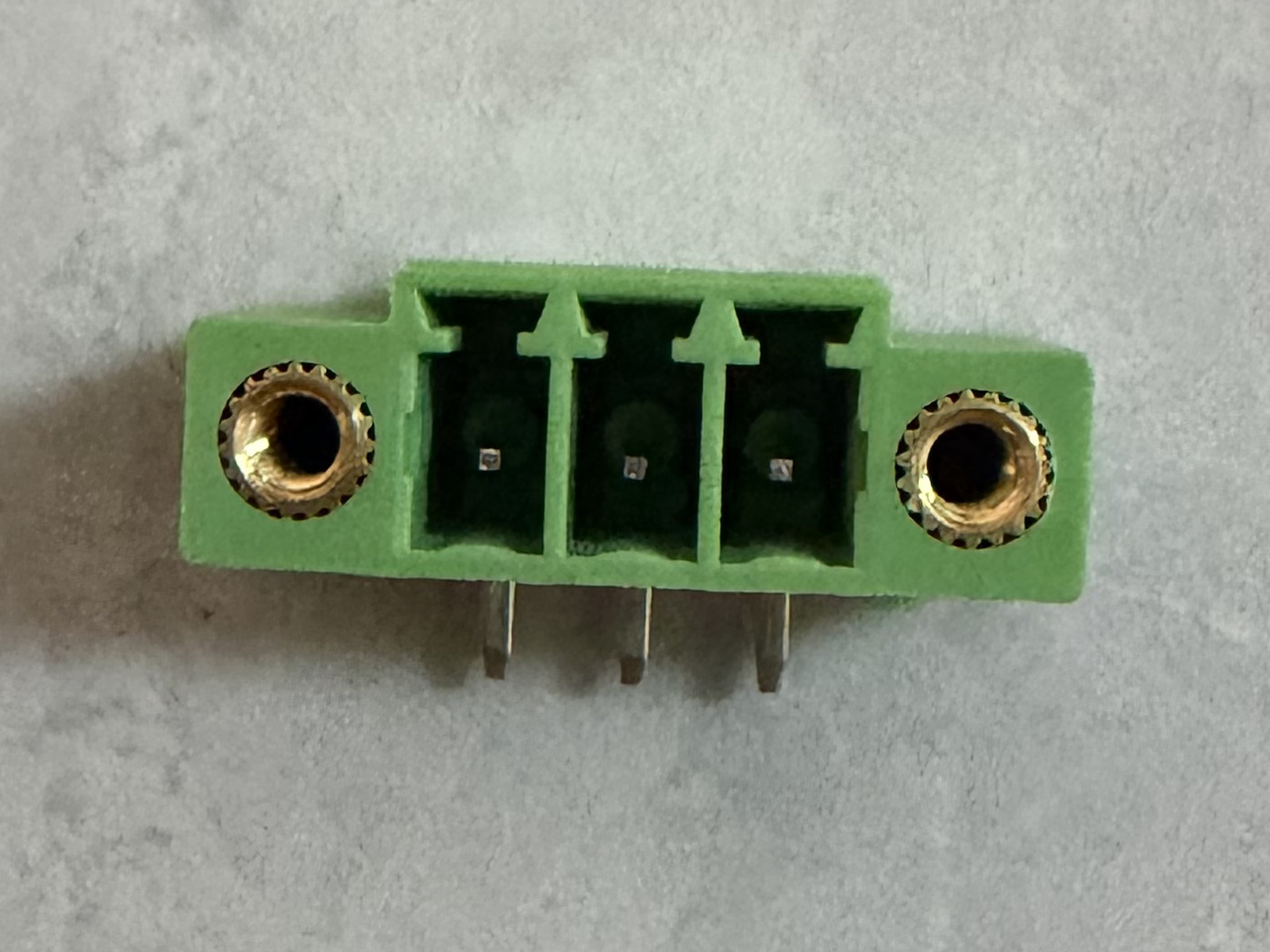

KF15EDGP-3.5
Mounting flange for improved retention
- Pitch
- 3.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 8A

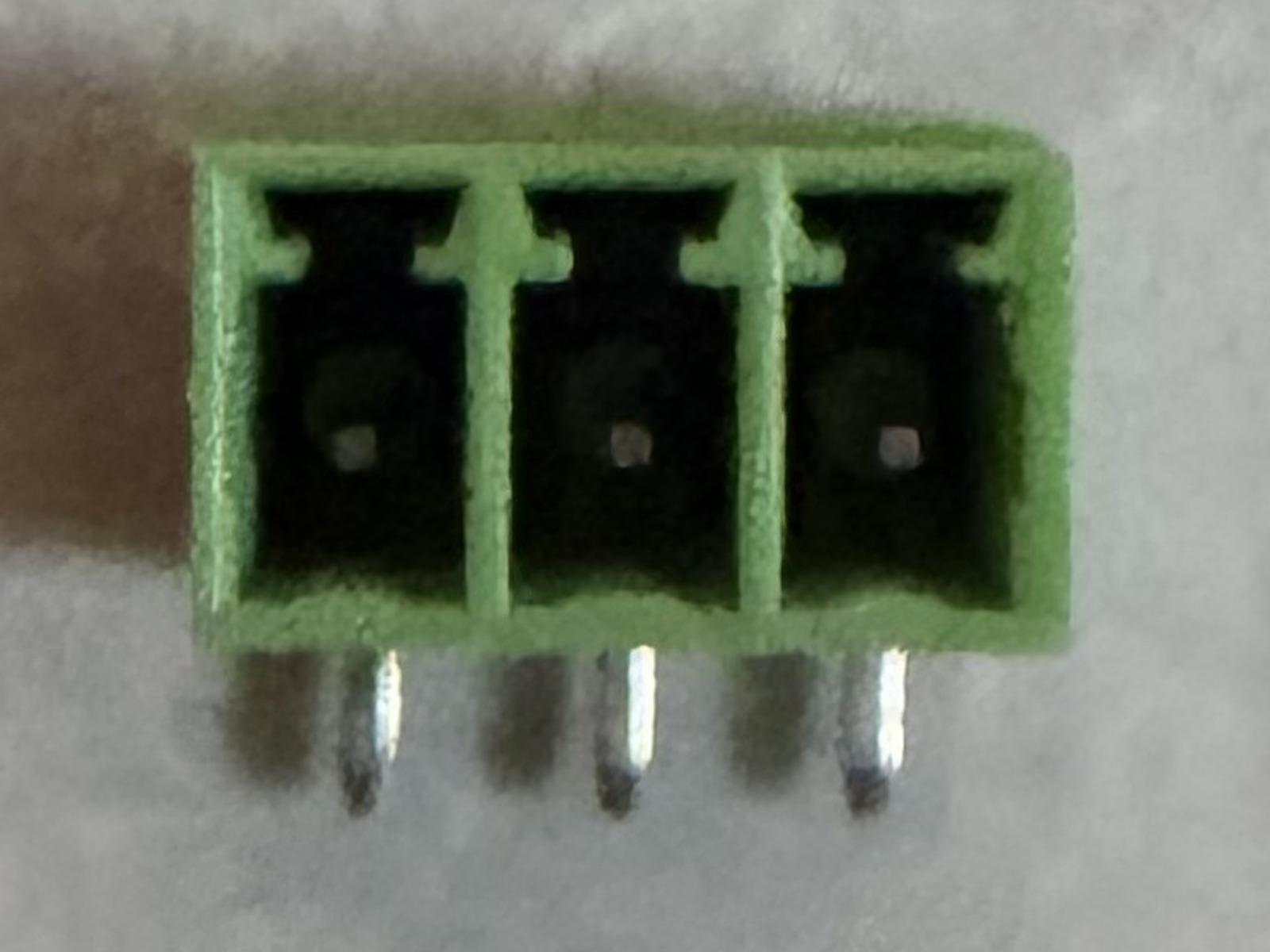

KF15EDGR-3.81
Right-angle pin design
- Pitch
- 3.81mm
- Mounting
- Right-angle PCB mount
- Rated current
- 10A

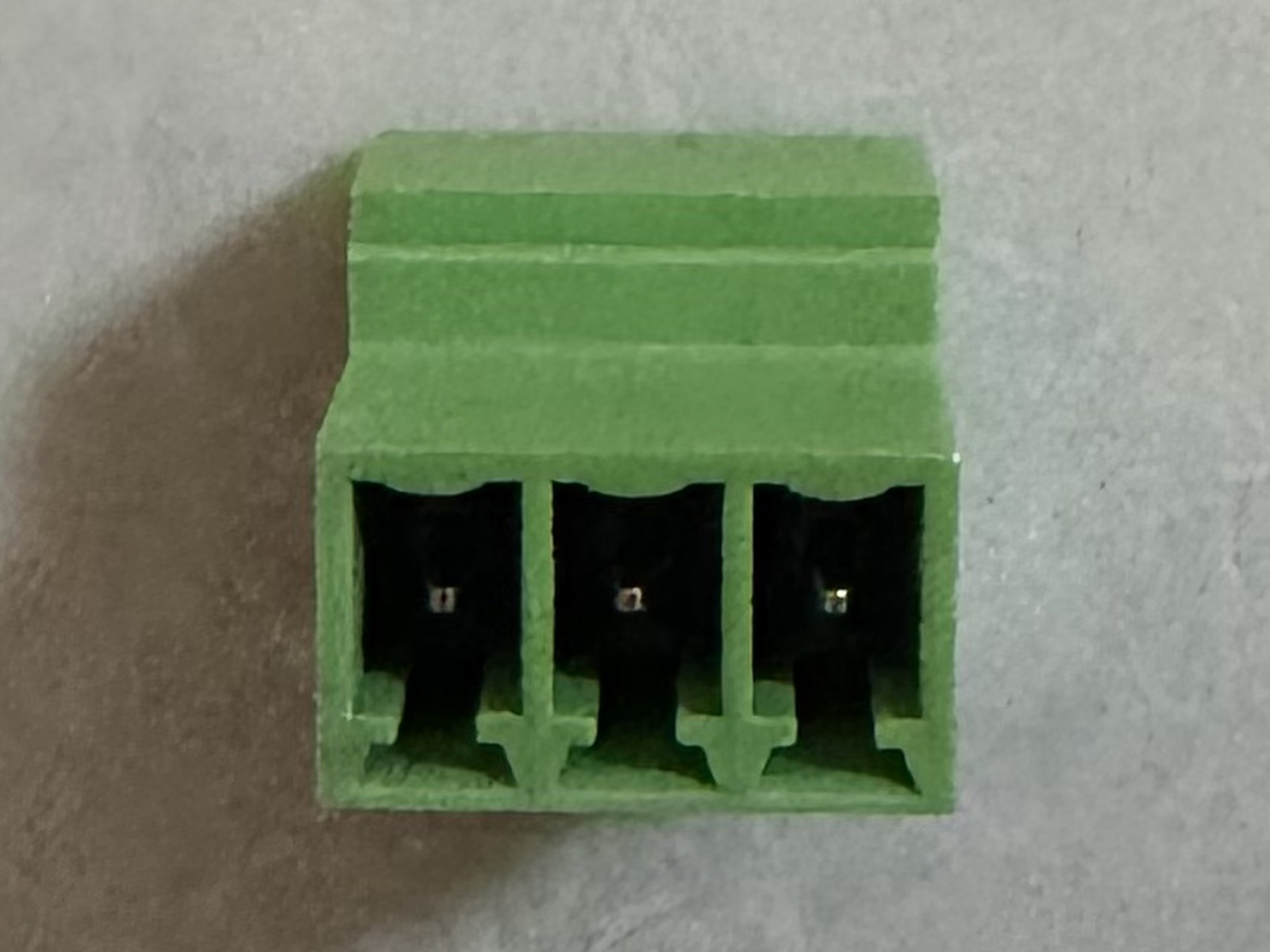

KF15EDGRK-3.81
Right-angle pins with locking latch
- Pitch
- 3.81mm
- Mounting
- Right-angle PCB mount
- Rated current
- 10A

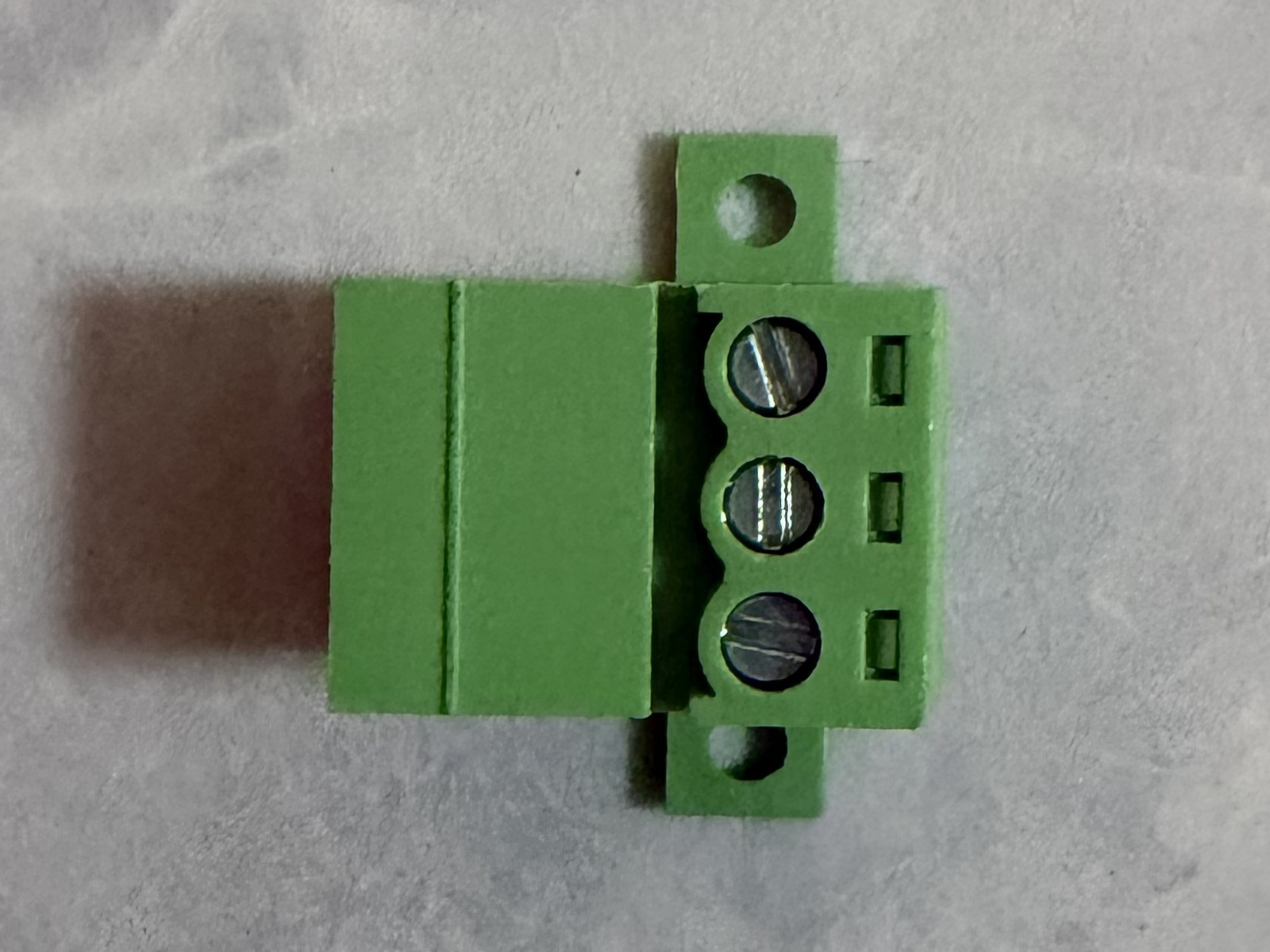

KF15EDGRKC-3.81
Right-angle pins, locking latch and mounting flange
- Pitch
- 3.81mm
- Mounting
- Right-angle PCB mount
- Rated current
- 10A

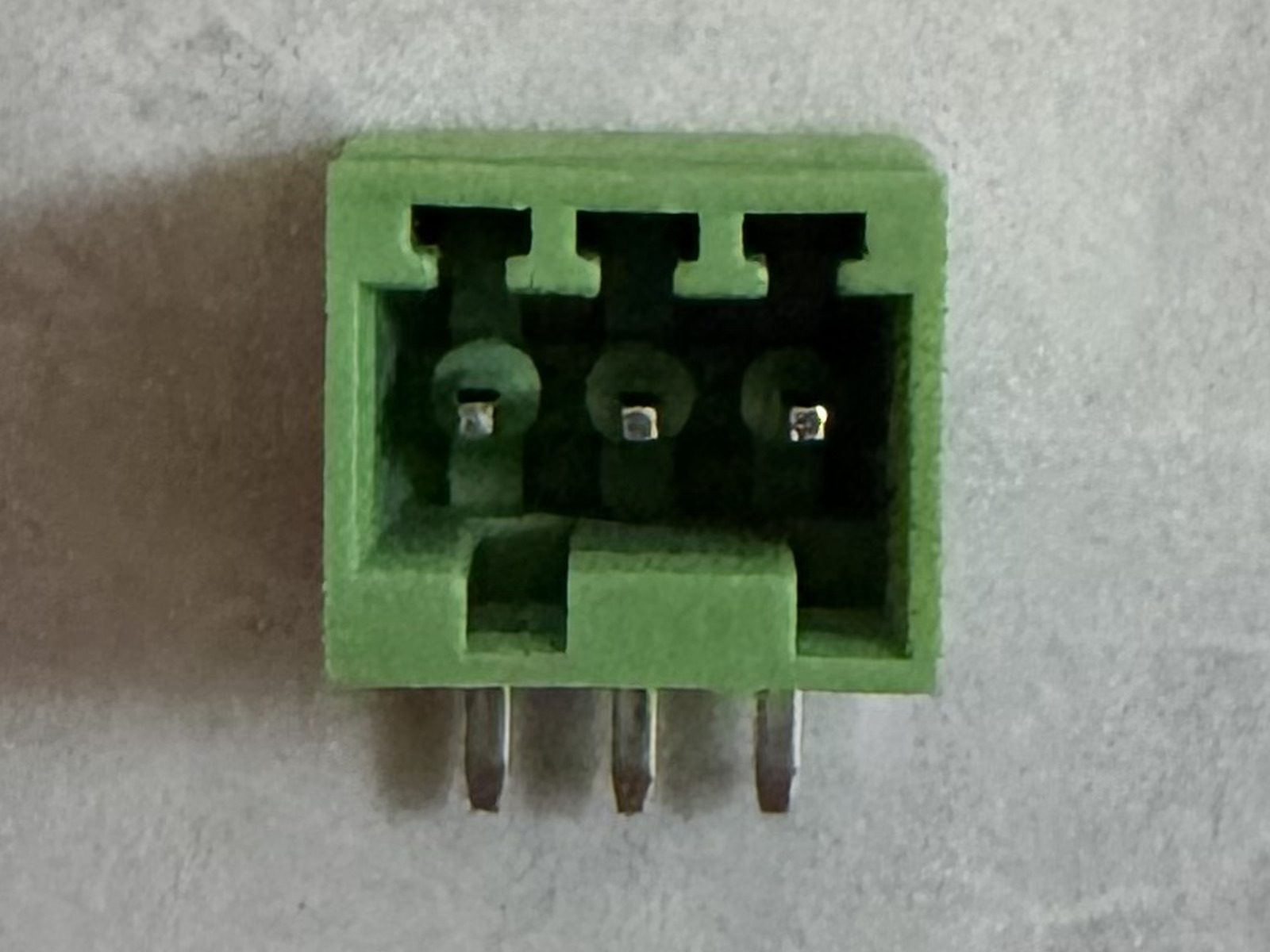

KF15EDGROC-2.5
Push-button spring connection with right-angle pins
- Pitch
- 2.5mm
- Mounting
- Right-angle PCB mount
- Rated current
- 6A
PCB Screw Terminal Blocks
Compact and high-current screw-clamp connections for direct PCB mounting.

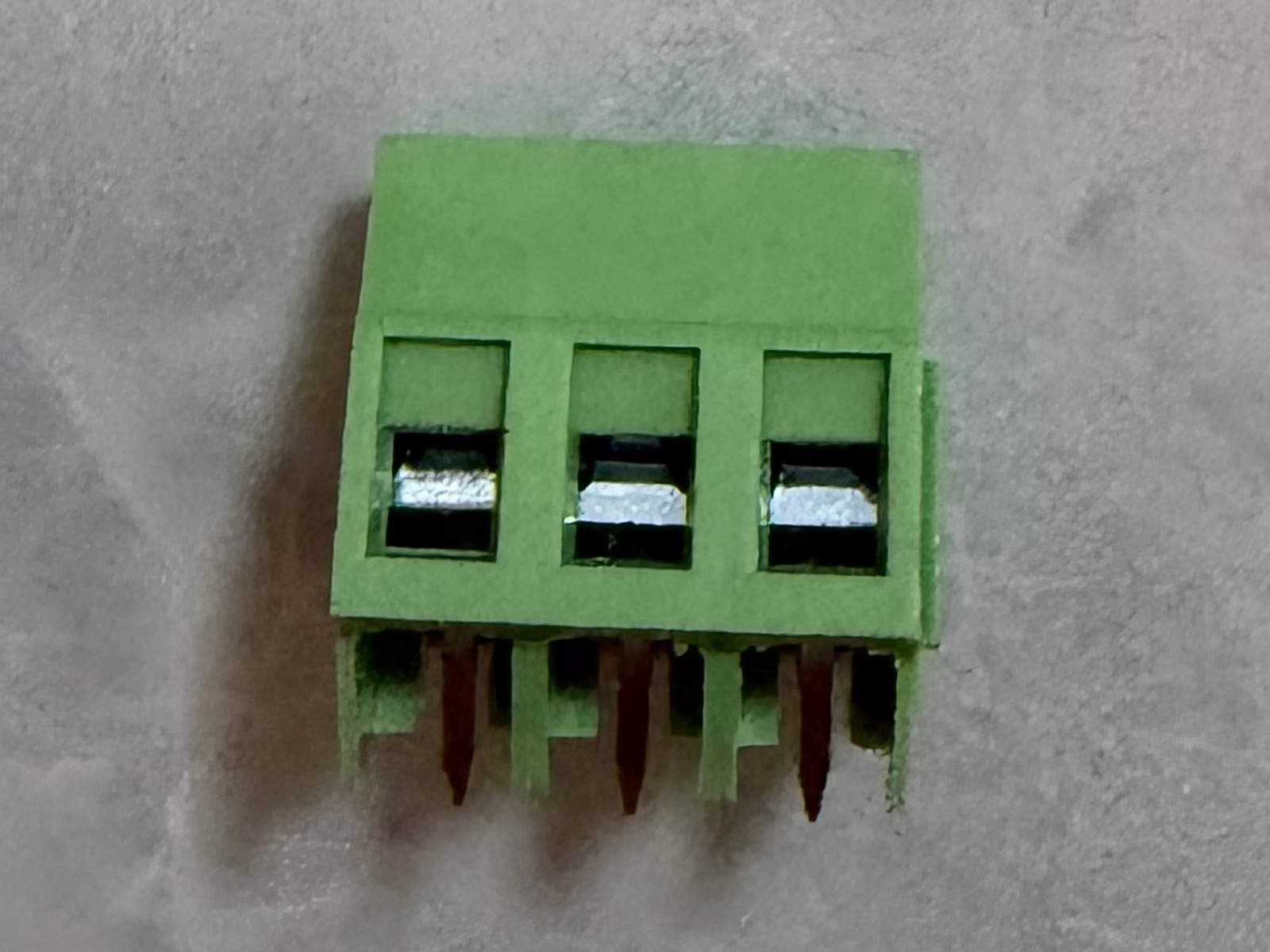

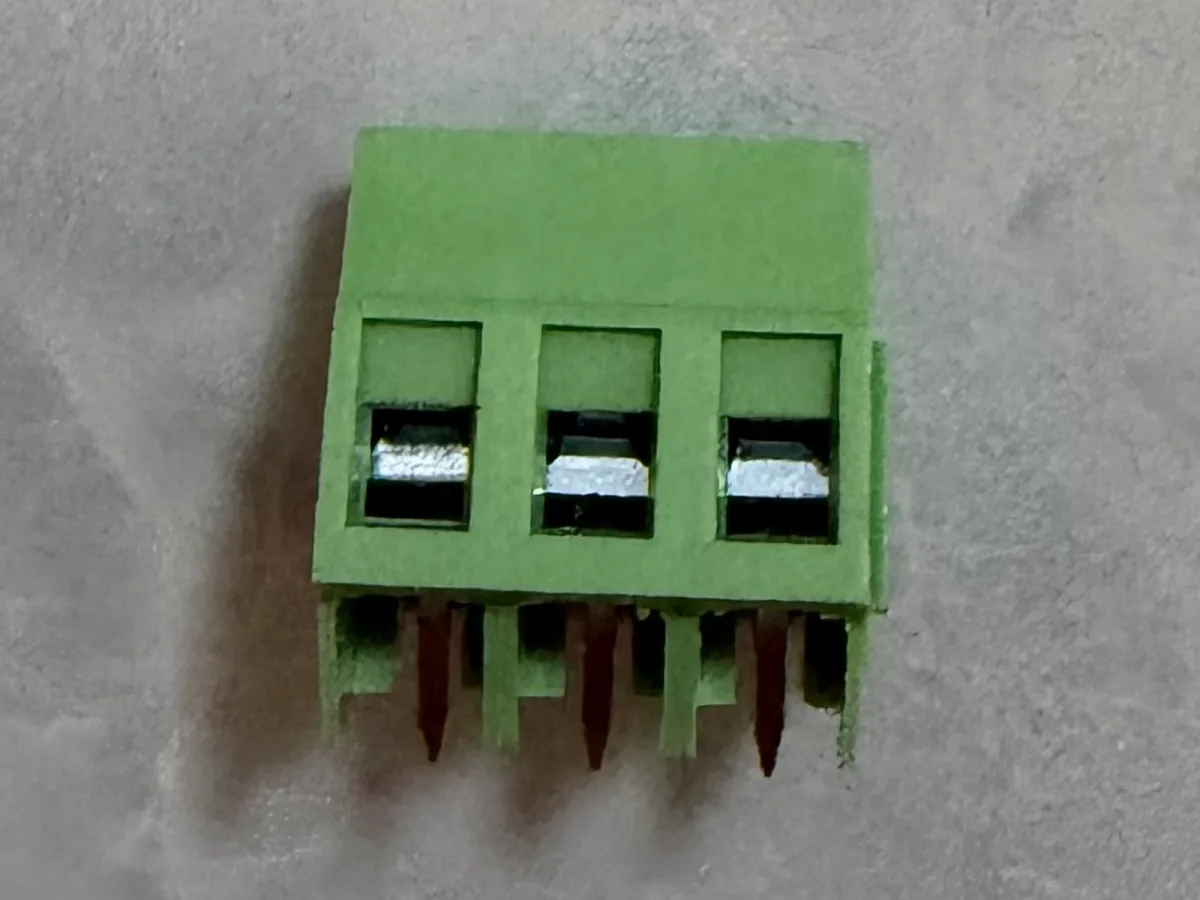

KF103-5.0
5.0mm pcb screw terminal block
- Pitch
- 5.0mm
- Mounting
- Vertical PCB mount
- Rated current
- 10A

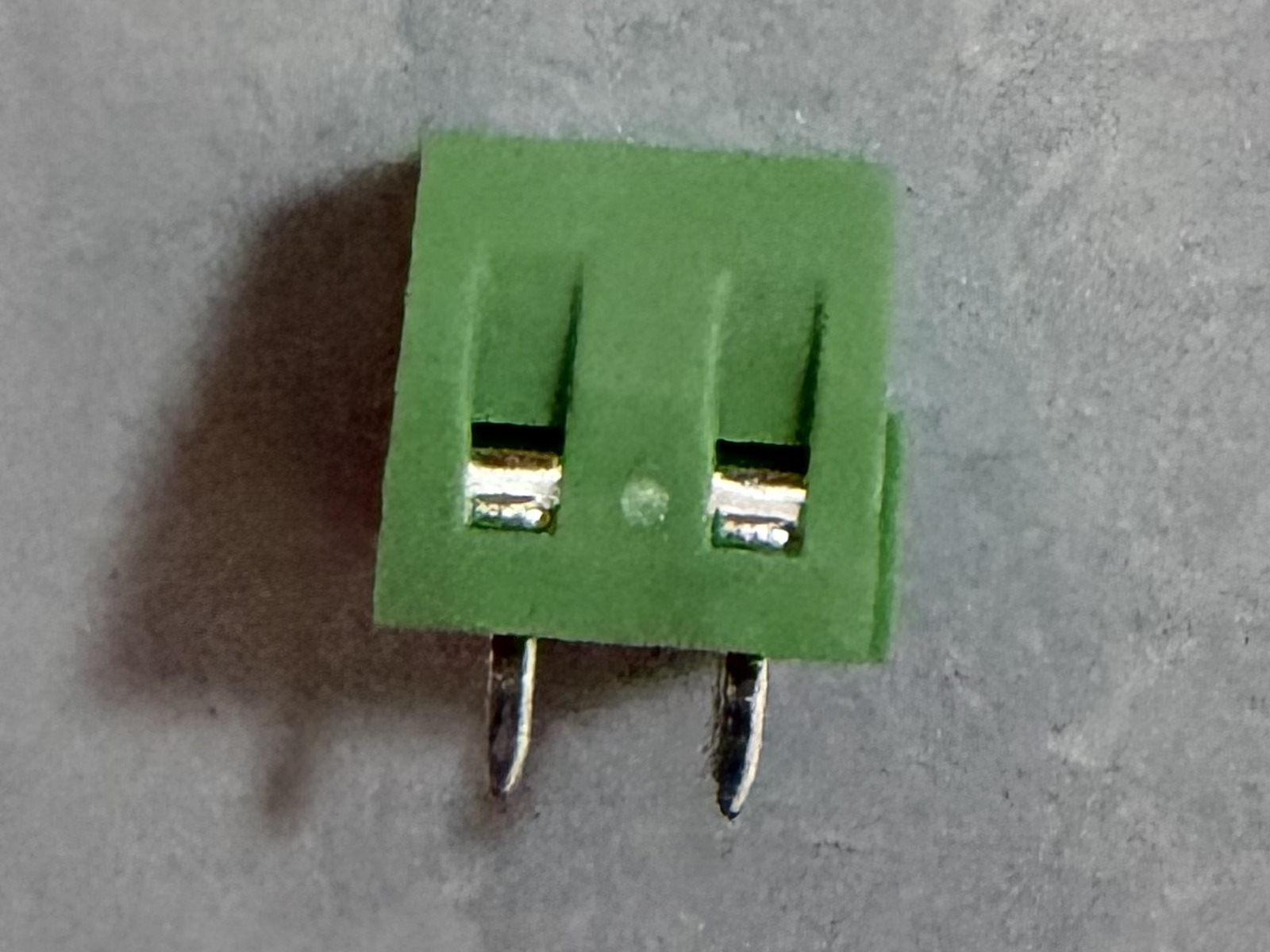

KF127-5.0
Compact design
- Pitch
- 5.0mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

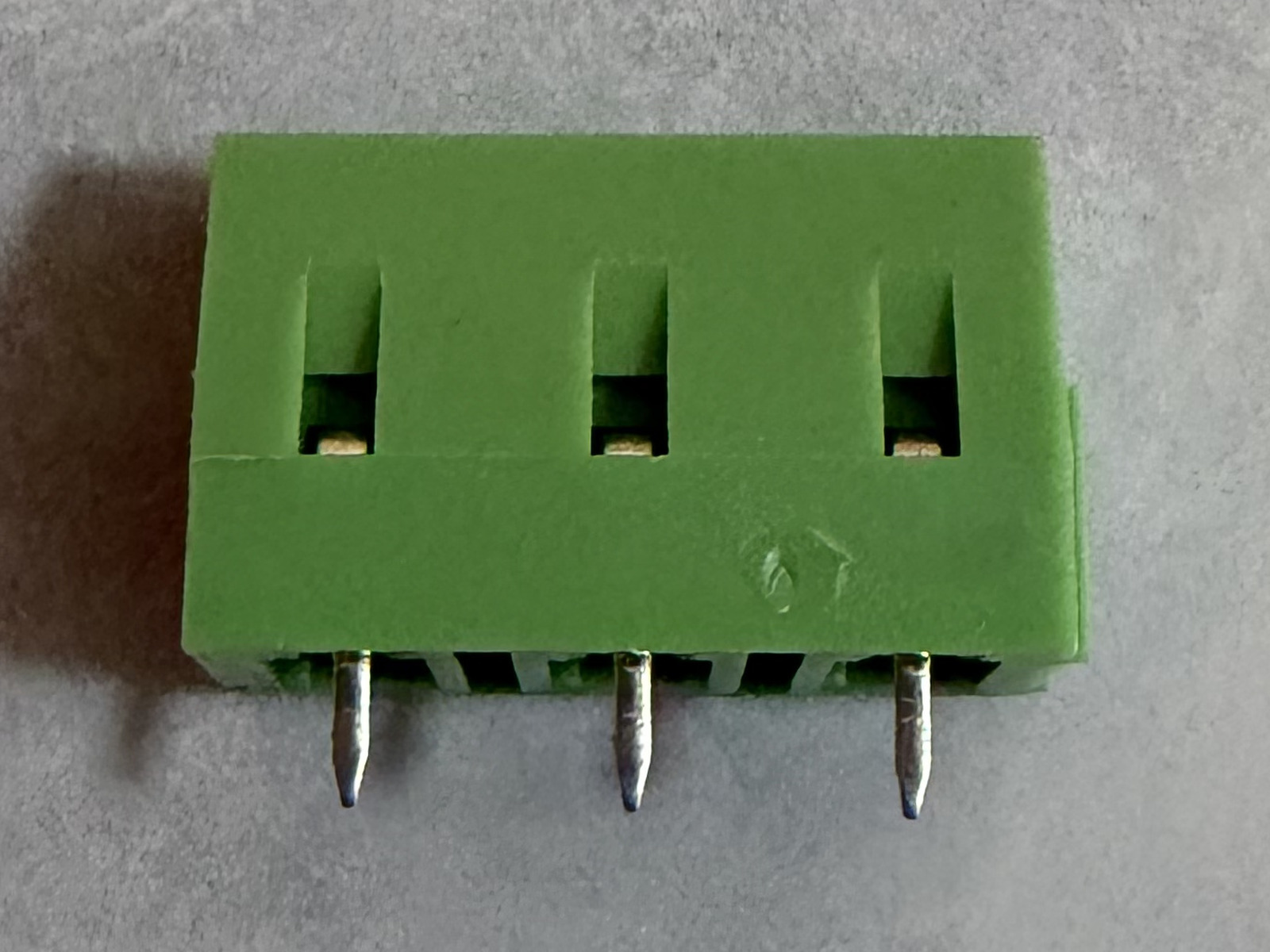

KF128-7.5
Wide-pitch design for higher-current applications
- Pitch
- 7.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A

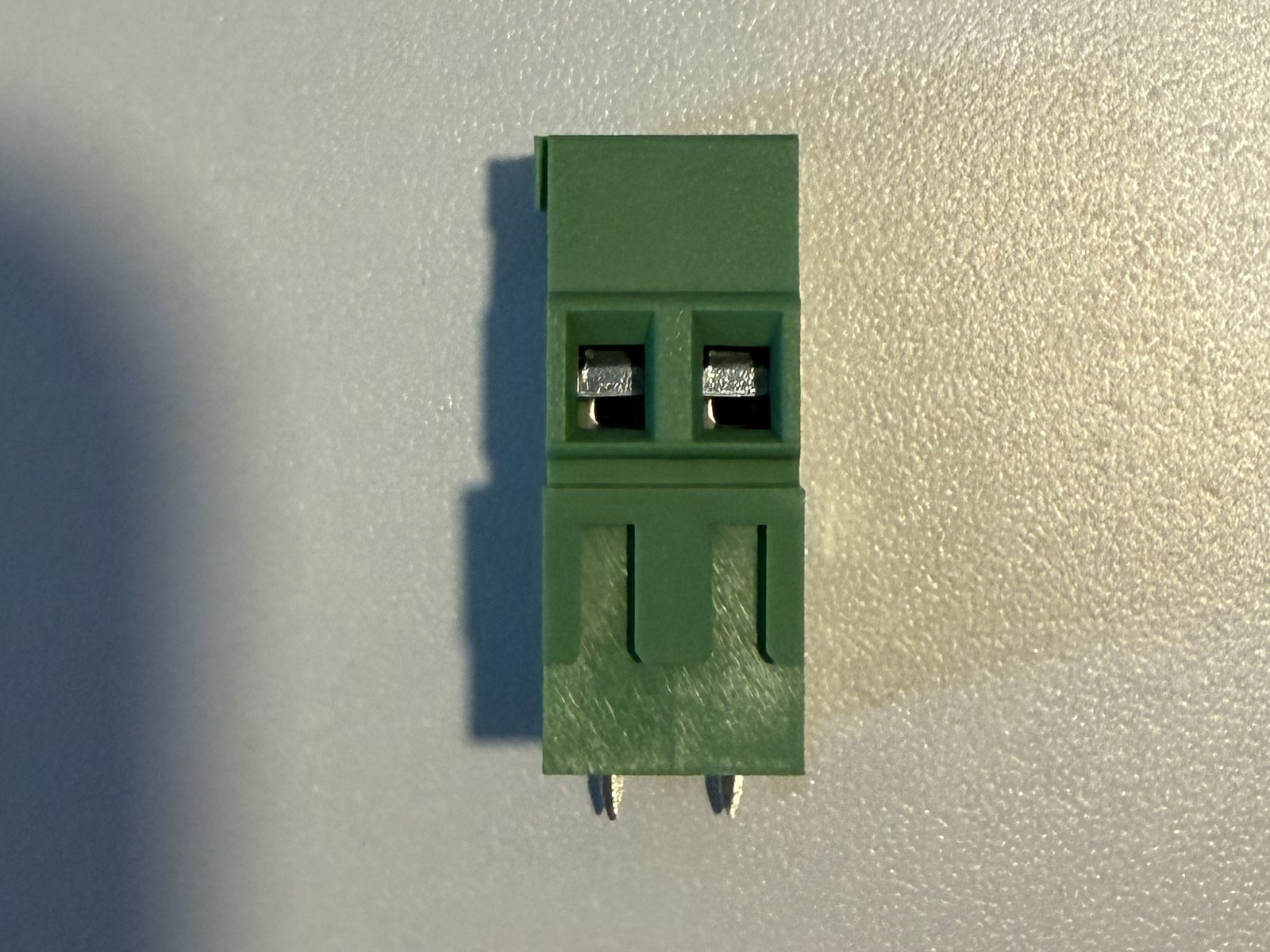

KF128H-5.08
Raised housing designed for increased creepage distance
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

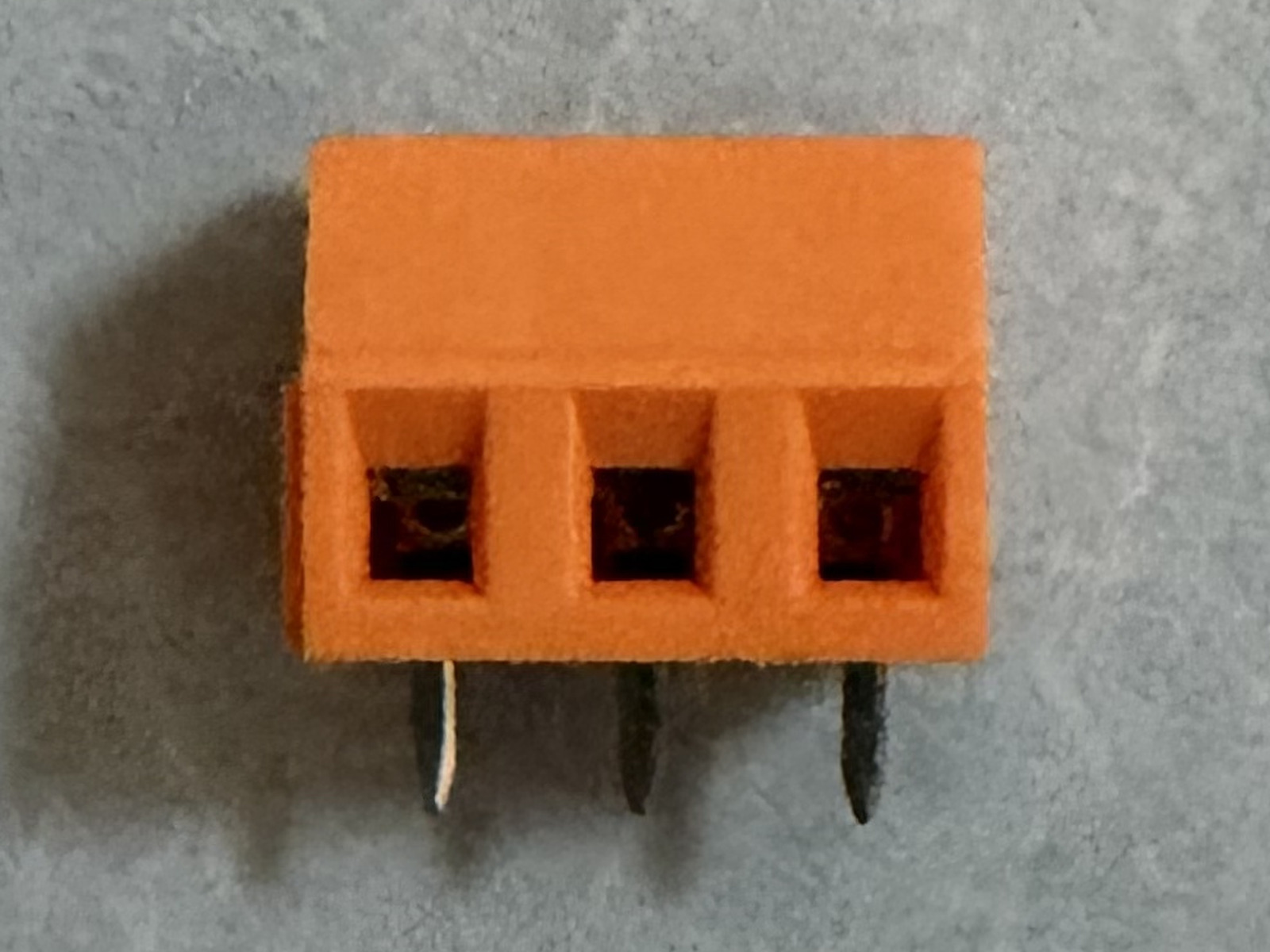

KF128L-3.81
Low-profile design for space-constrained layouts
- Pitch
- 3.81mm
- Mounting
- Vertical PCB mount
- Rated current
- 10A

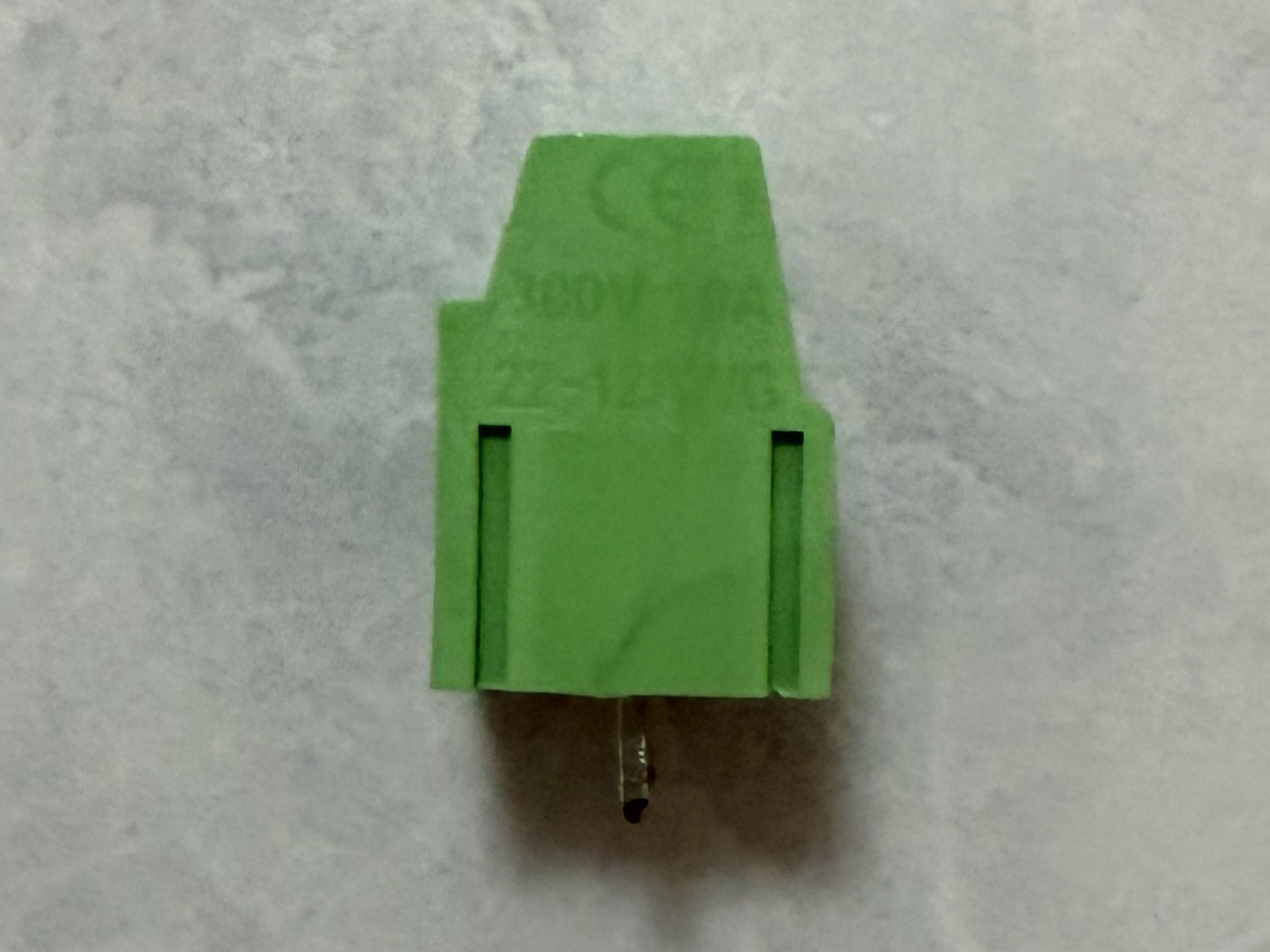

KF128L-5.08
Low-profile design for space-constrained layouts
- Pitch
- 5.08mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

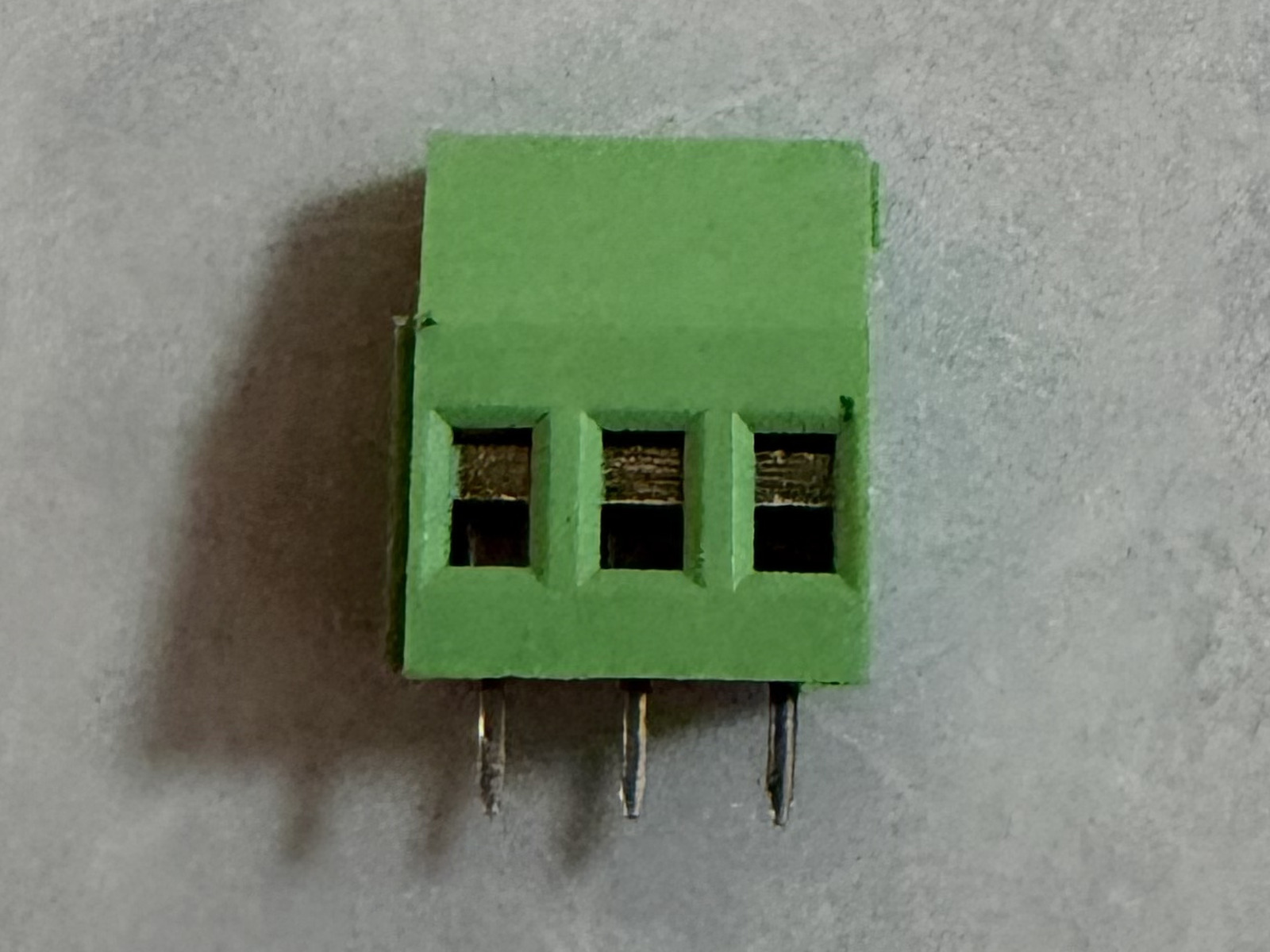

KF129-5.0
Rising-cage screw connection
- Pitch
- 5.0mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

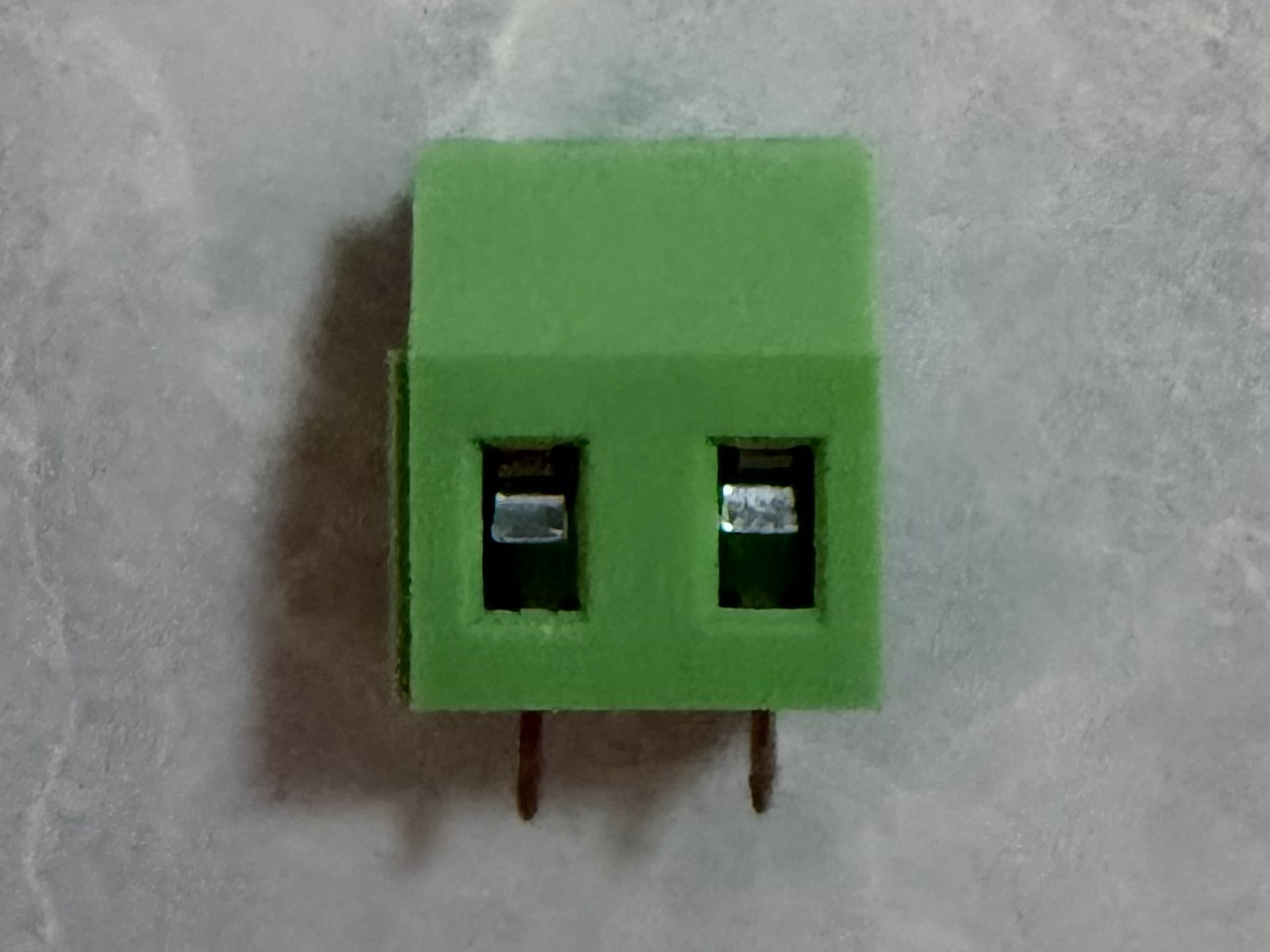

KF129-7.62
Wide-pitch, high-current rising-cage connection
- Pitch
- 7.62mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A

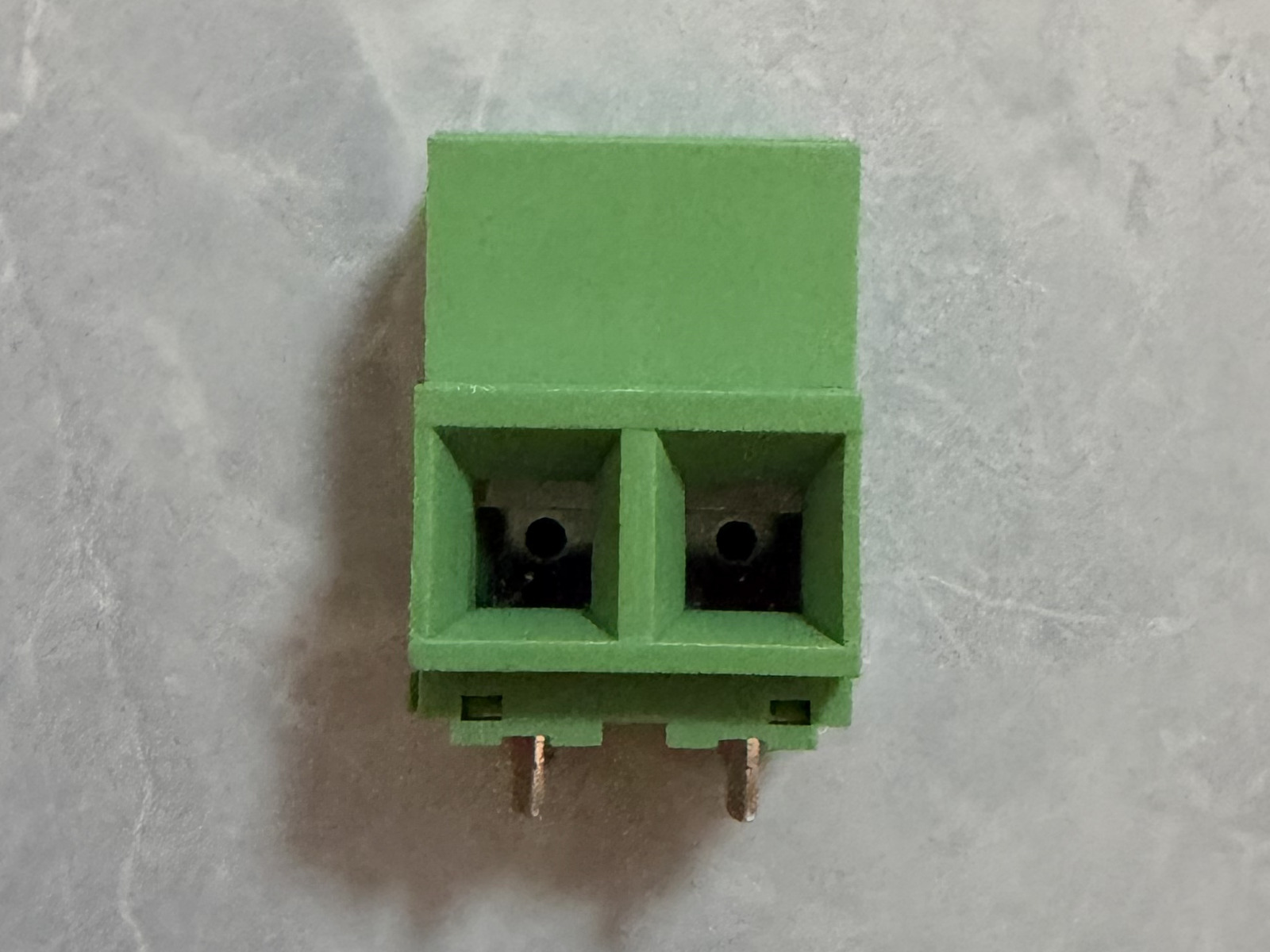

KF135-1016
Wide-pitch, high-current design
- Pitch
- 10.16mm
- Mounting
- Vertical PCB mount
- Rated current
- 41A

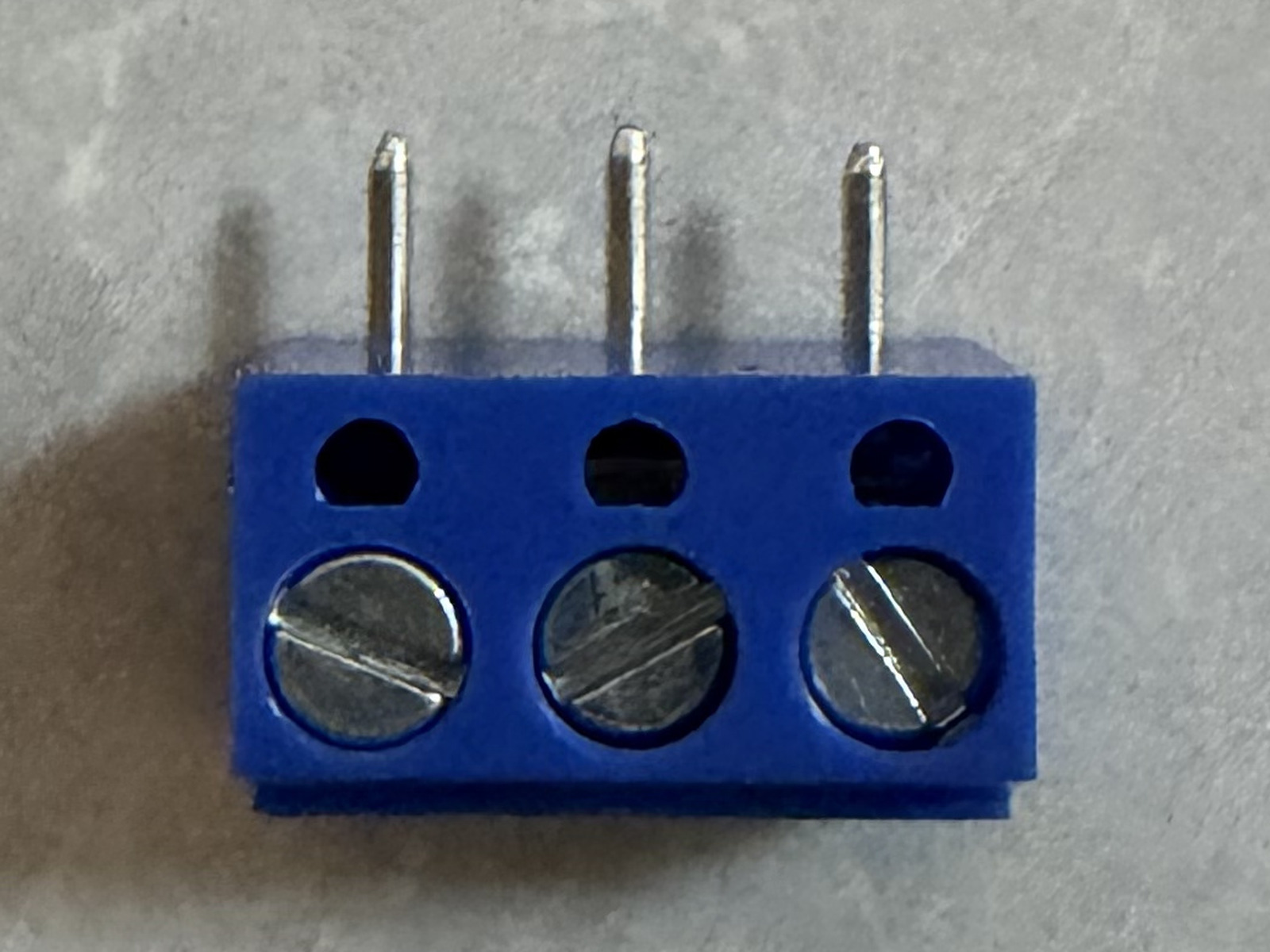

KF301-5.0
Interlocking housing for configurable position counts
- Pitch
- 5.0mm
- Mounting
- Vertical PCB mount
- Rated current
- 16A

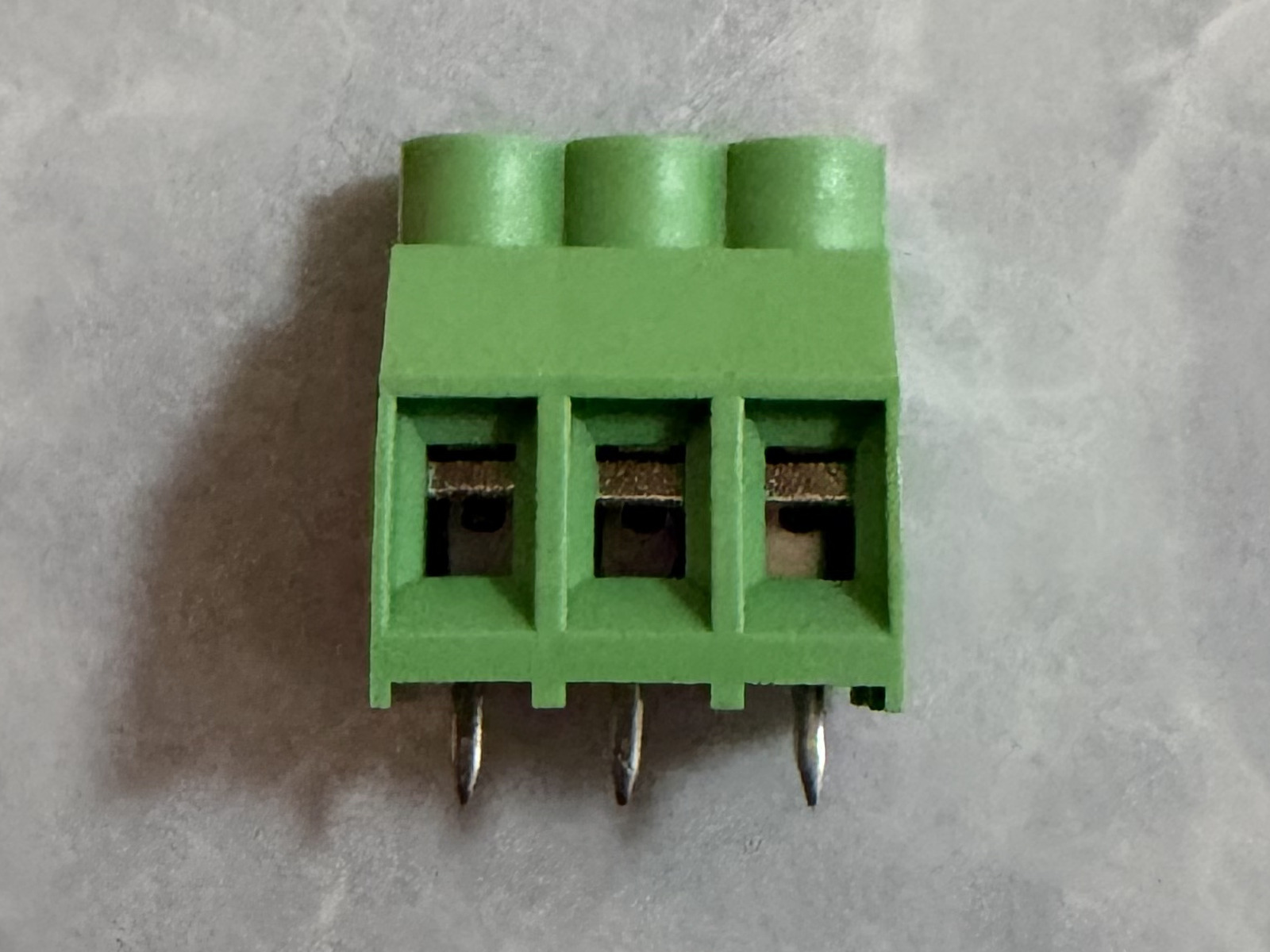

KF635
6.35 mm standard imperial pitch
- Pitch
- 6.35mm
- Mounting
- Vertical PCB mount
- Rated current
- 15A

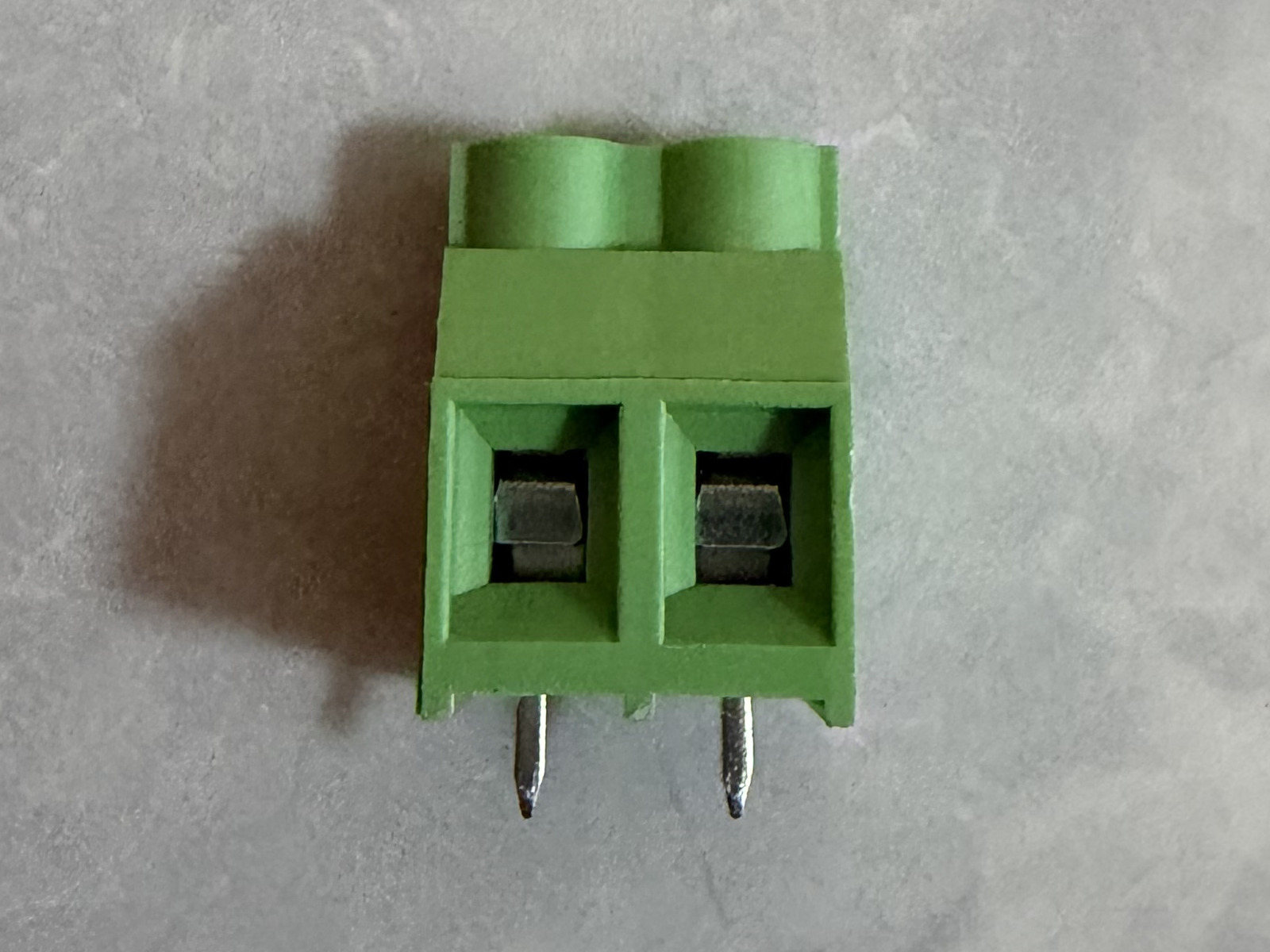

KF762
7.62 mm pitch for higher-current applications
- Pitch
- 7.62mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A

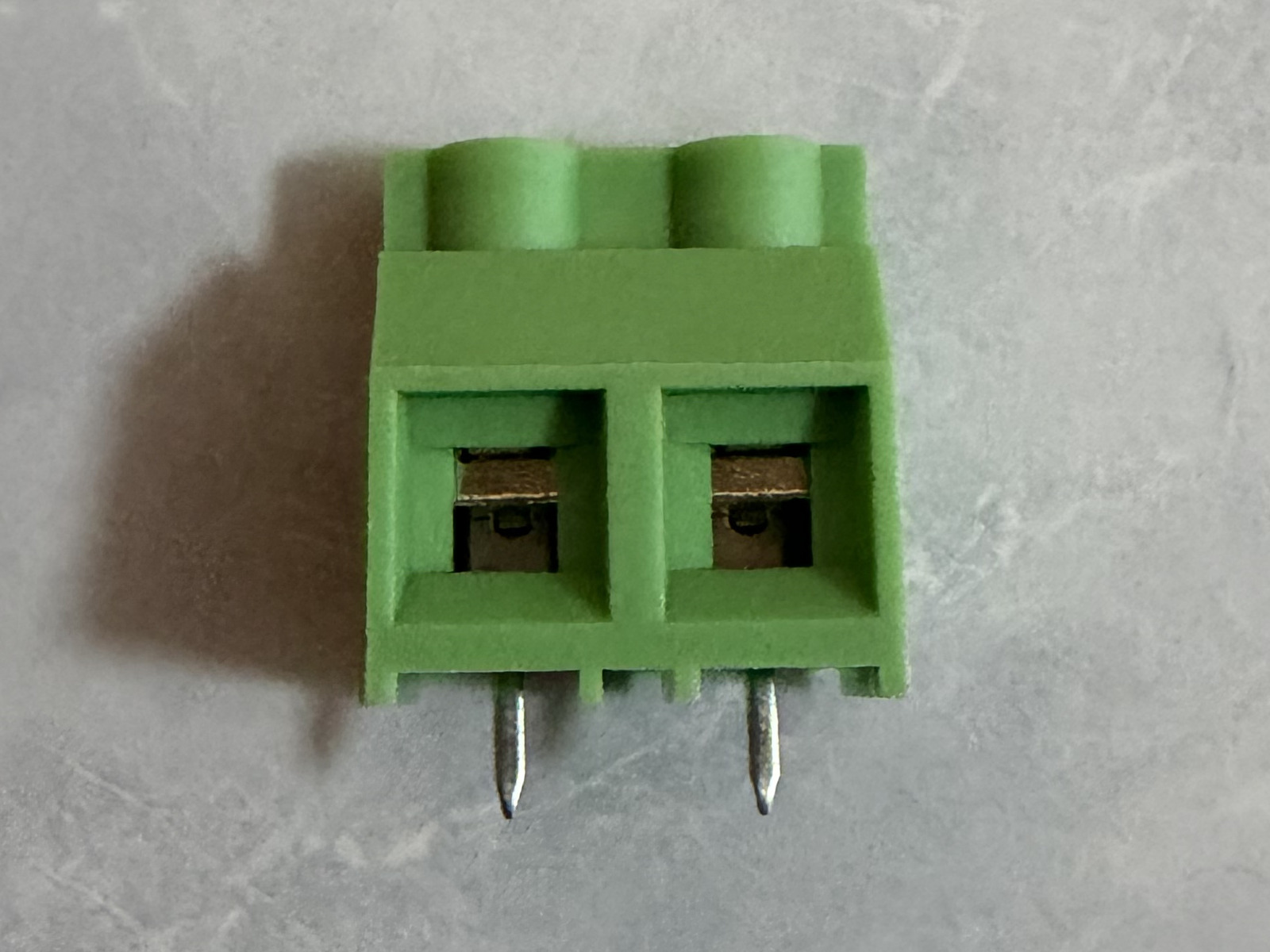

KF950-9.5
9.5 mm pitch for higher-current applications
- Pitch
- 9.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 30A

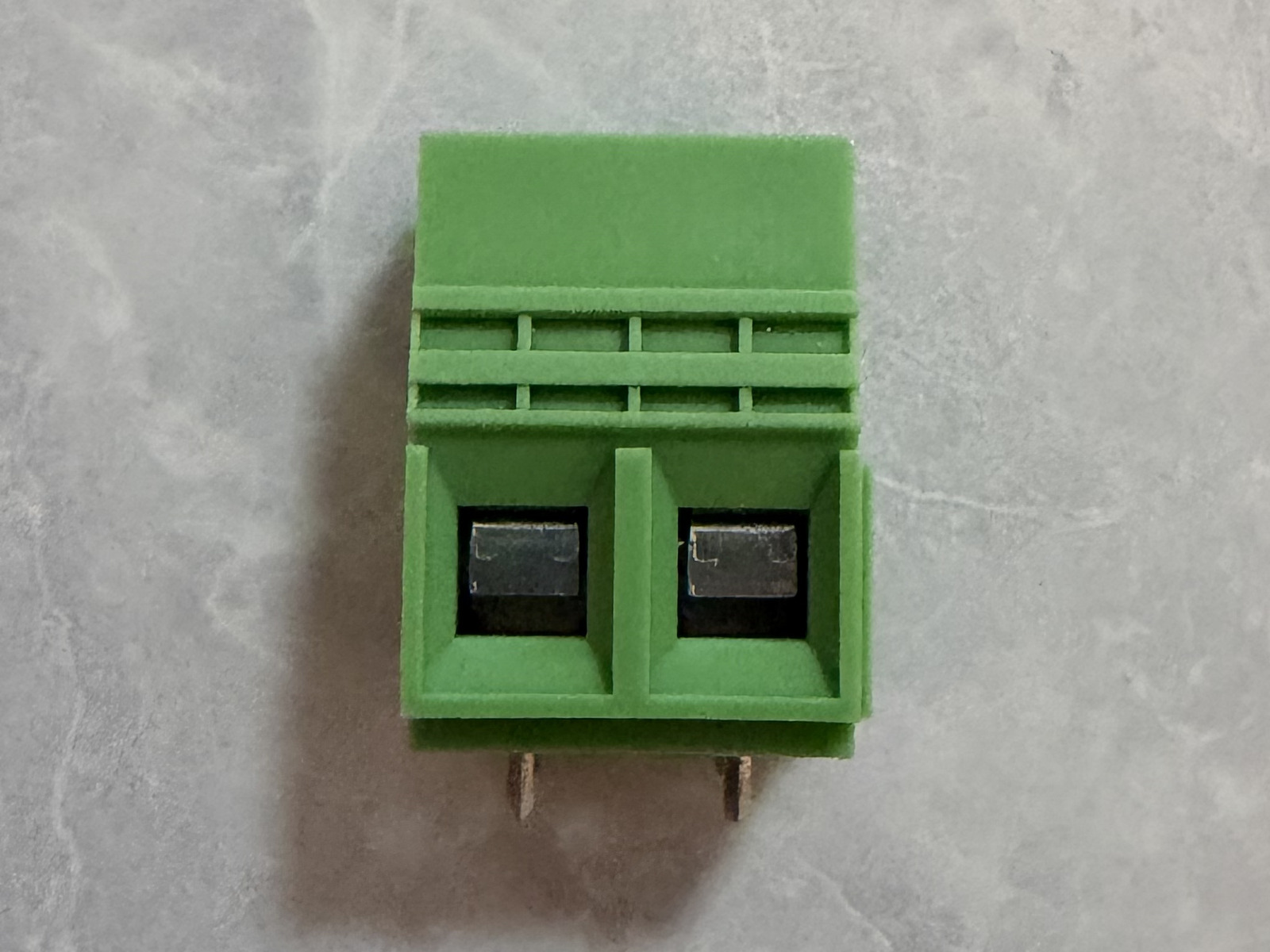

KFA(B)-1016
A/B housing options with a wide-pitch, high-current design
- Pitch
- 10.16mm
- Mounting
- Vertical PCB mount
- Rated current
- 41A
Barrier Terminal Blocks
Partitioned screw terminals for clear, secure power and equipment wiring.

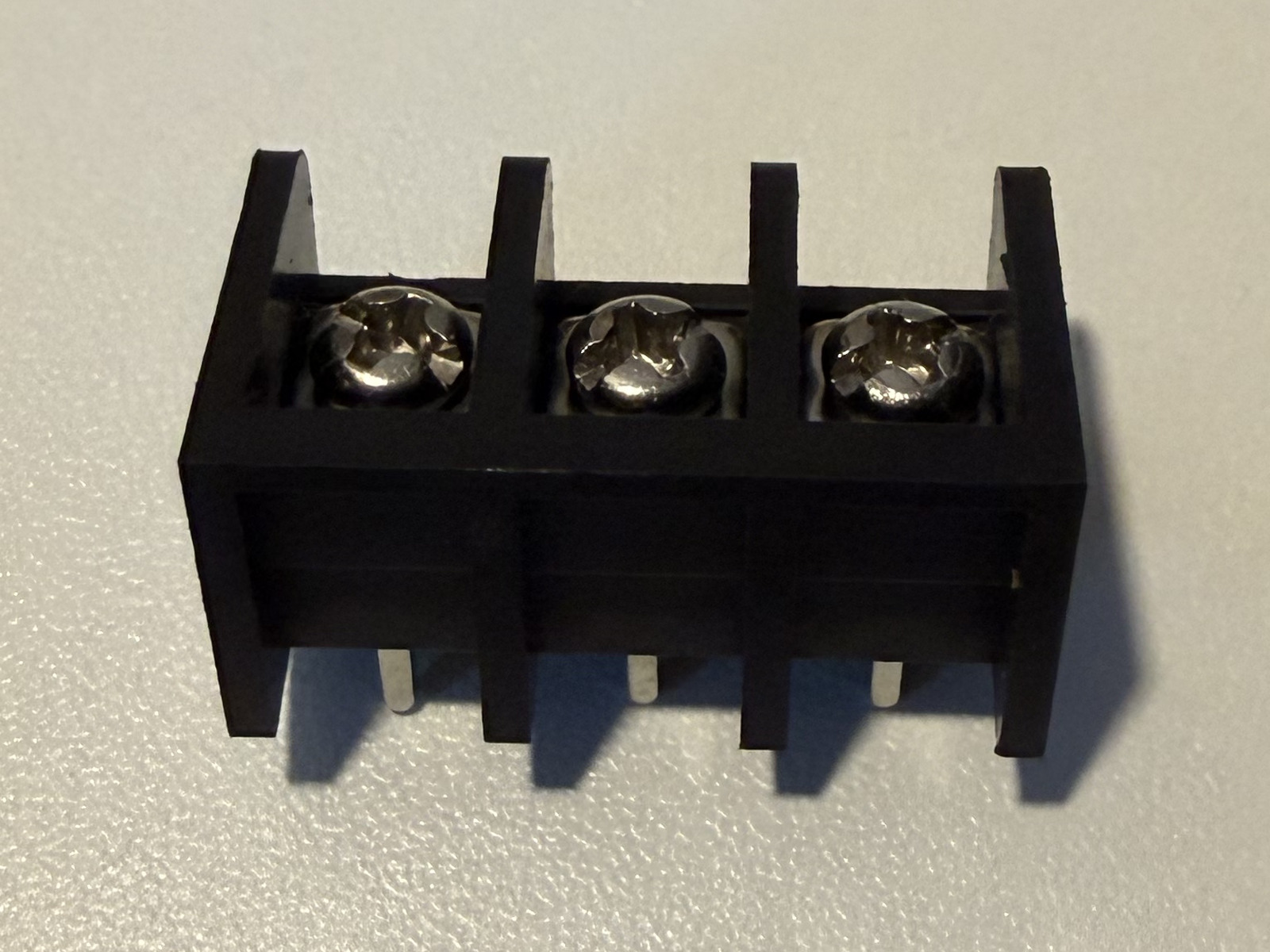

HB825
Barrier construction with side-pin or center-pin options
- Pitch
- 8.25mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A

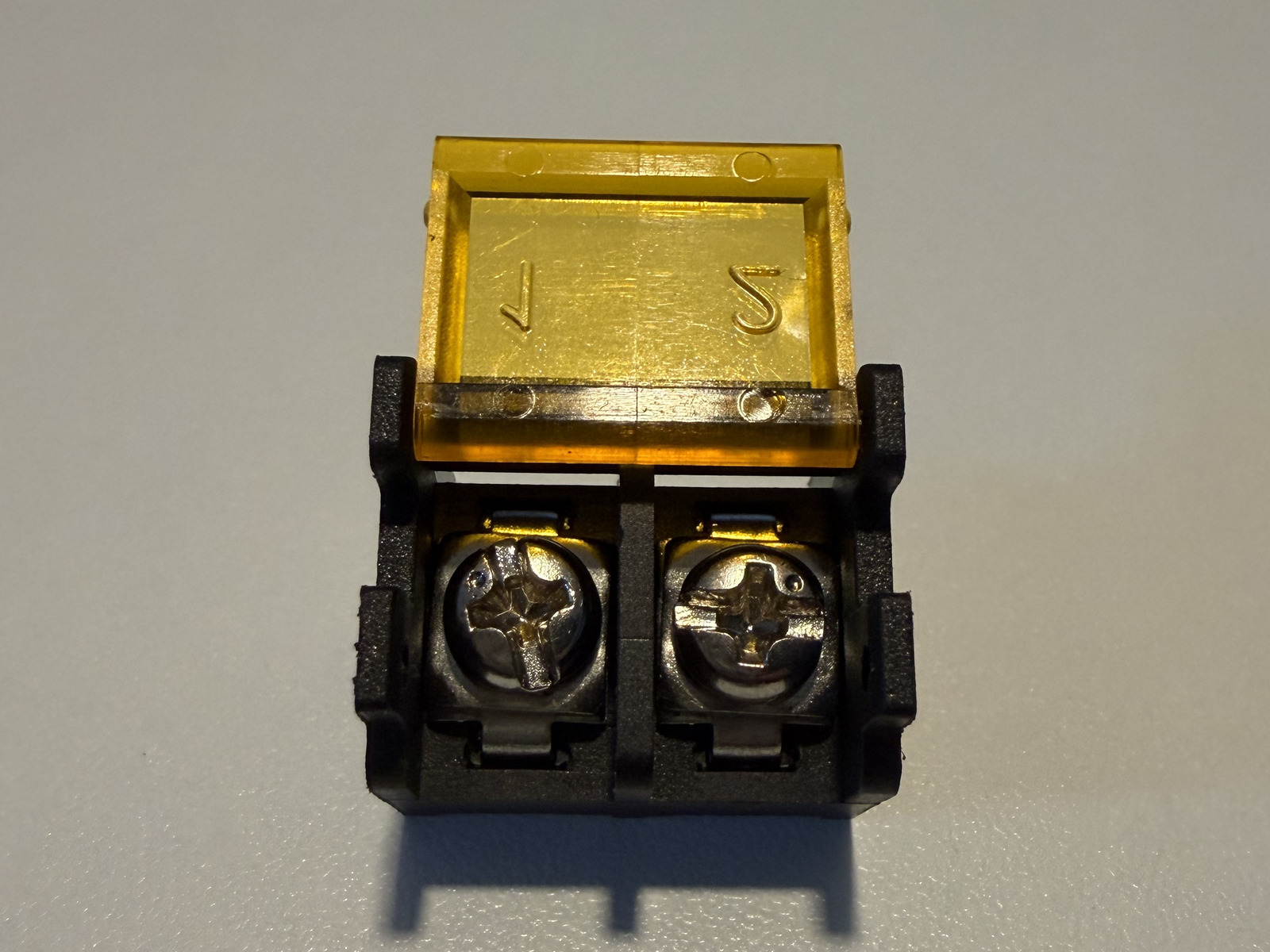

HB9500 With Cover
Protective cover with a high-current design
- Pitch
- 9.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 30A

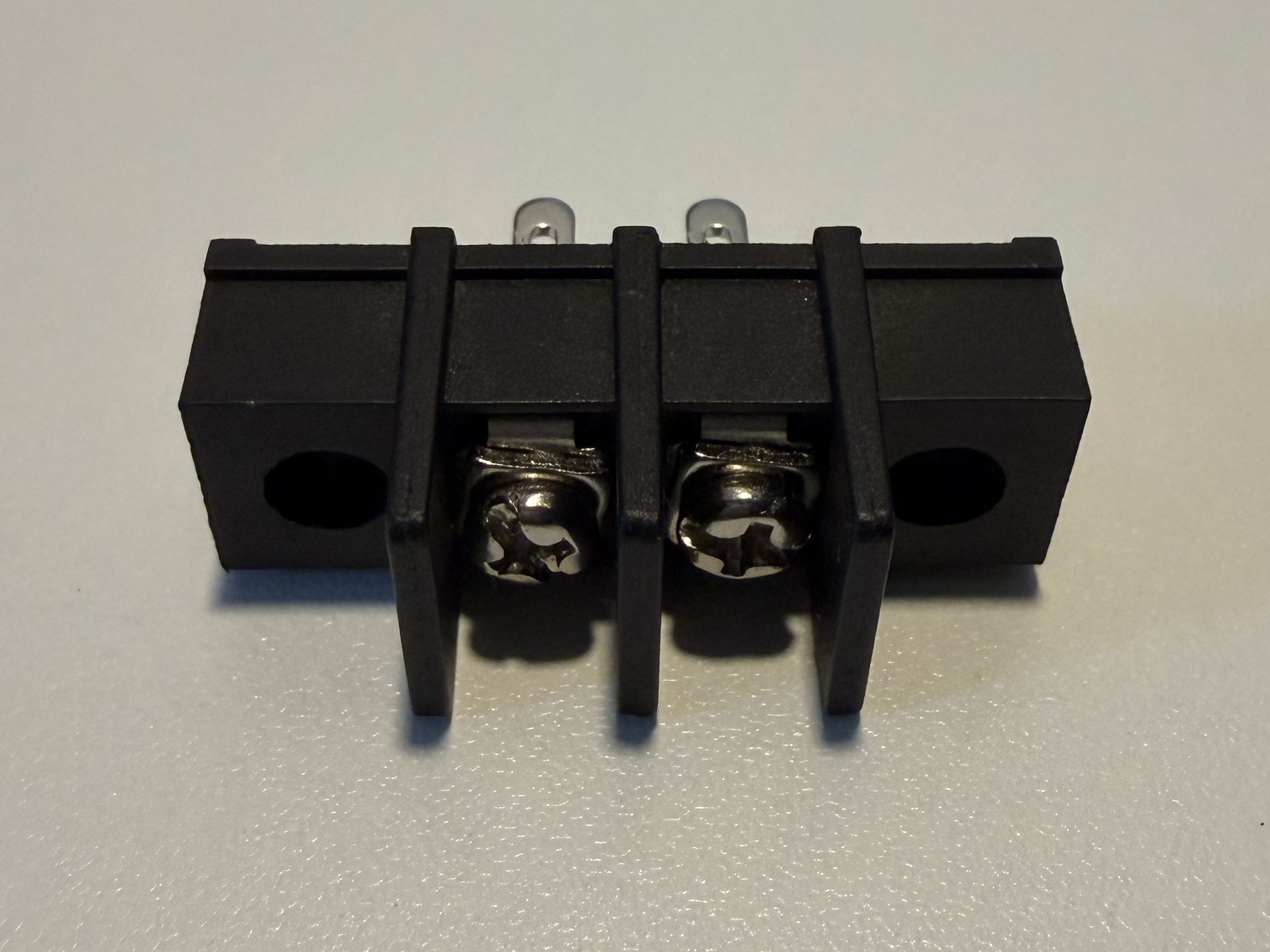

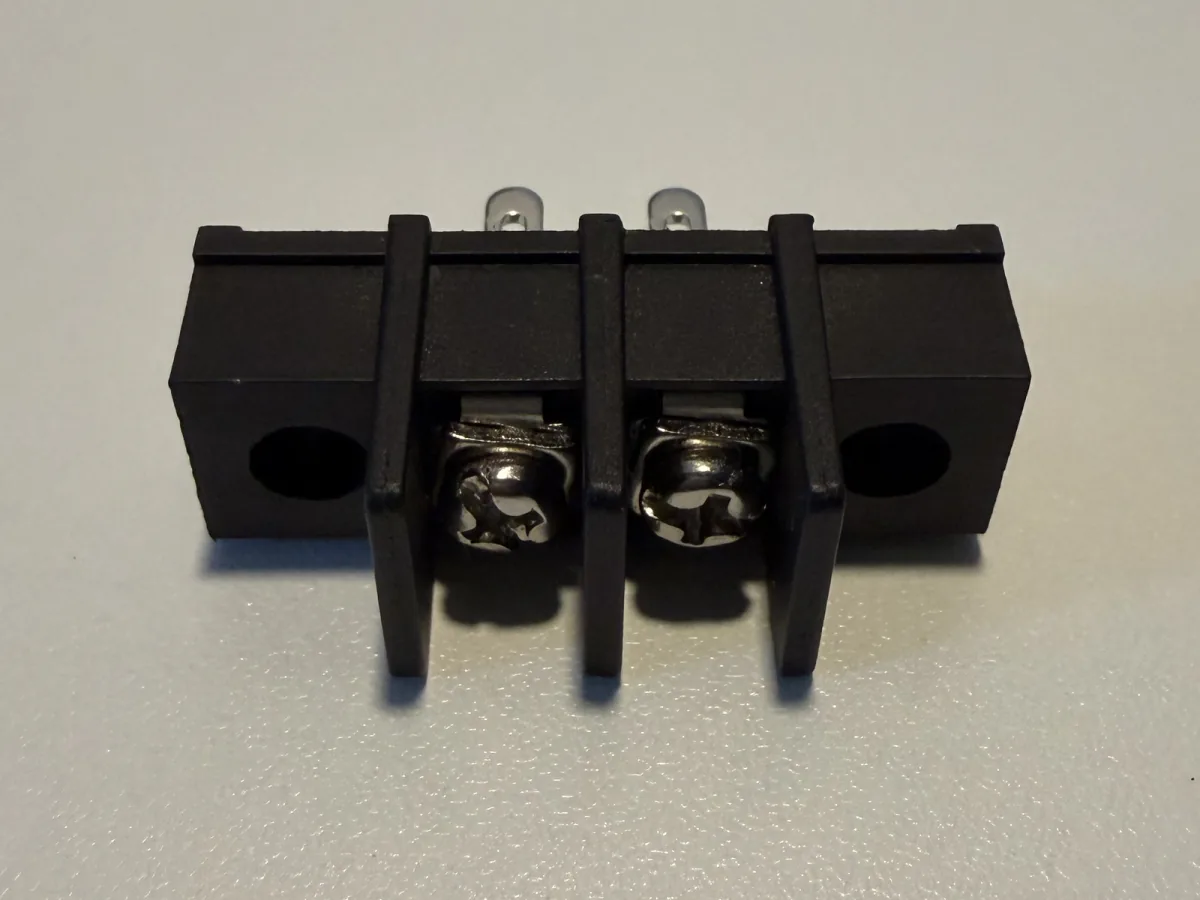

KF35M
Barrier construction with double-sided partitions
- Pitch
- 8.25mm
- Mounting
- Vertical PCB mount
- Rated current
- 20A

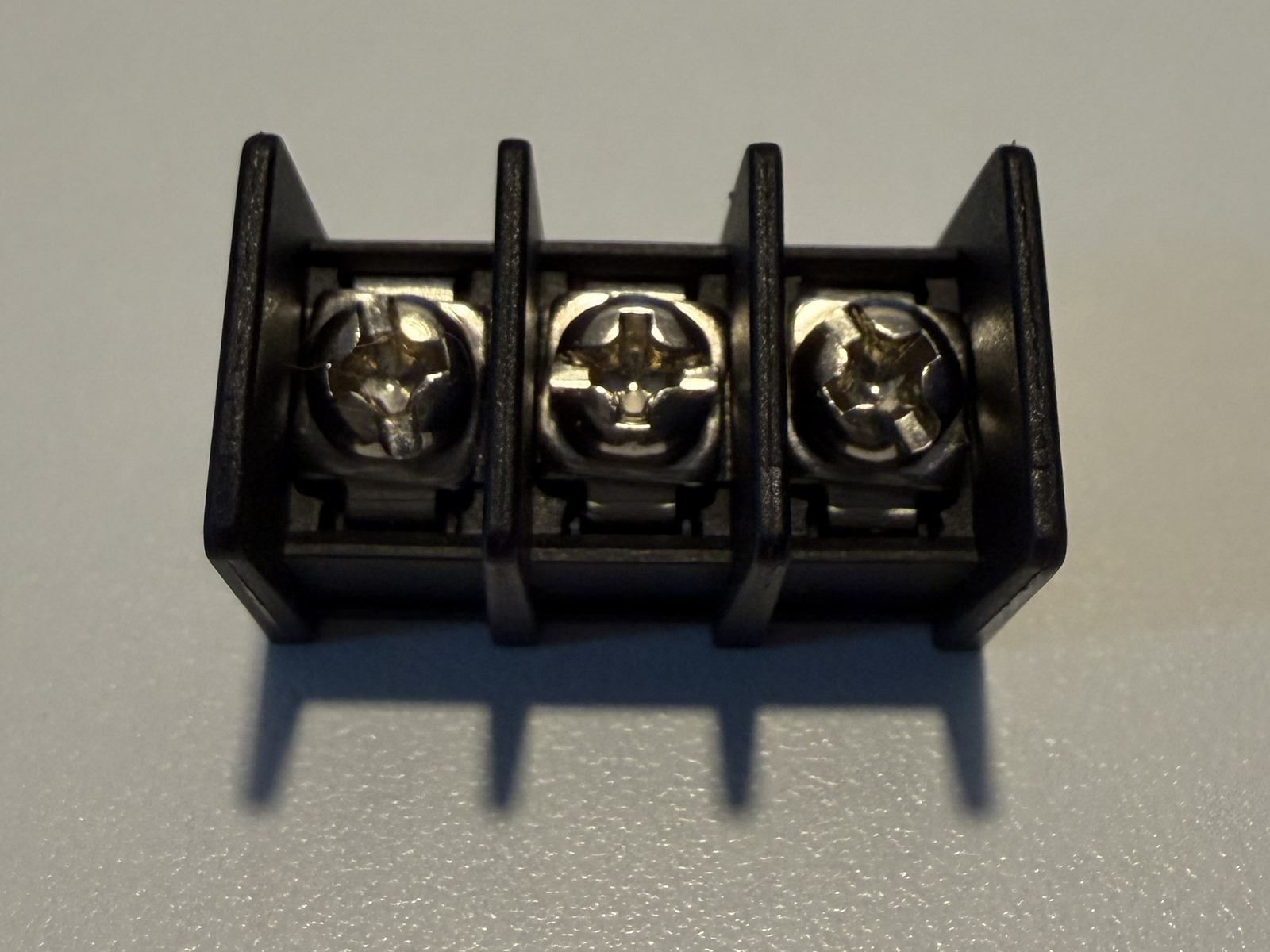

KF45
Wide-pitch, high-current barrier construction
- Pitch
- 9.5mm
- Mounting
- Vertical PCB mount
- Rated current
- 25A

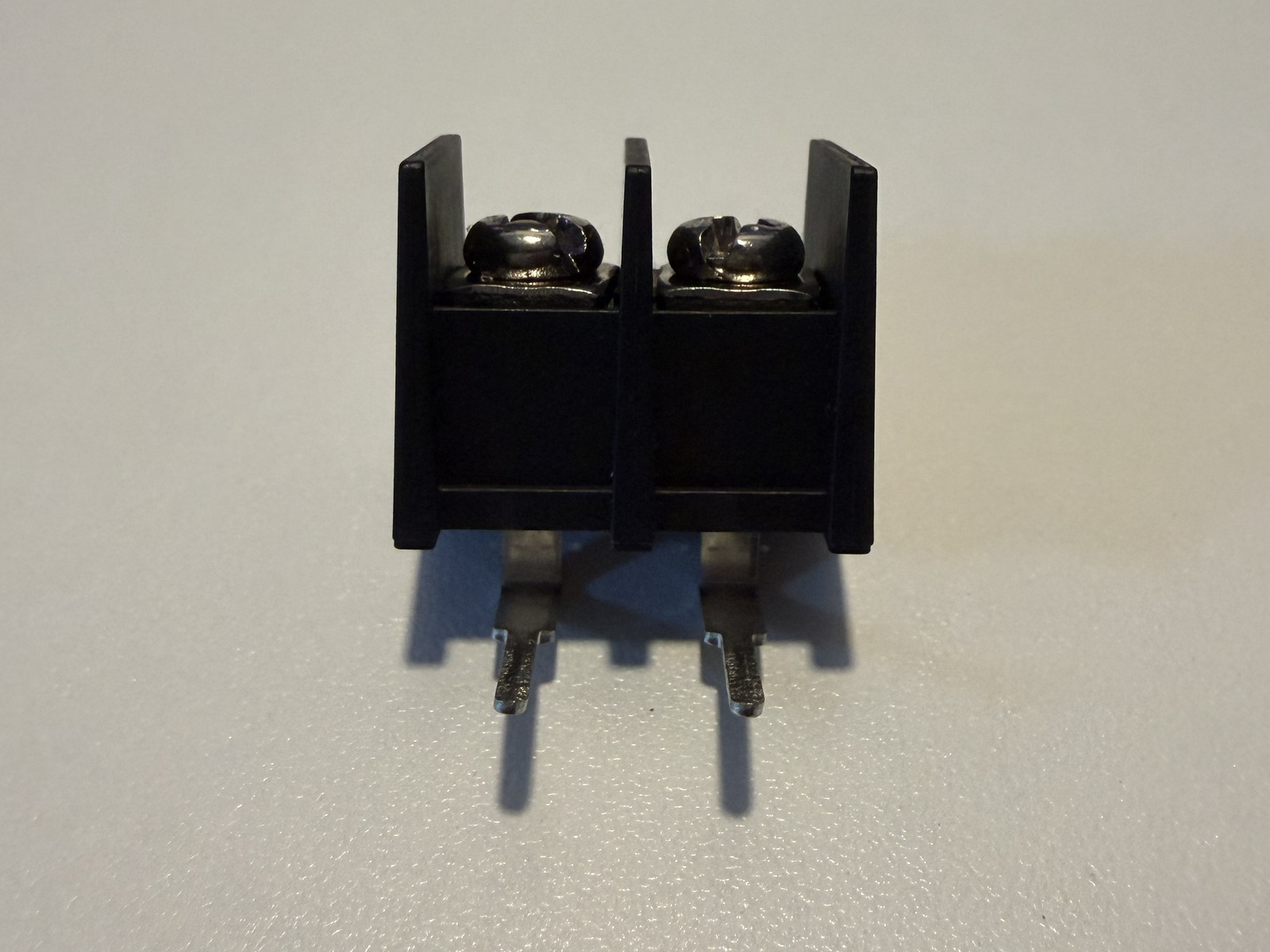

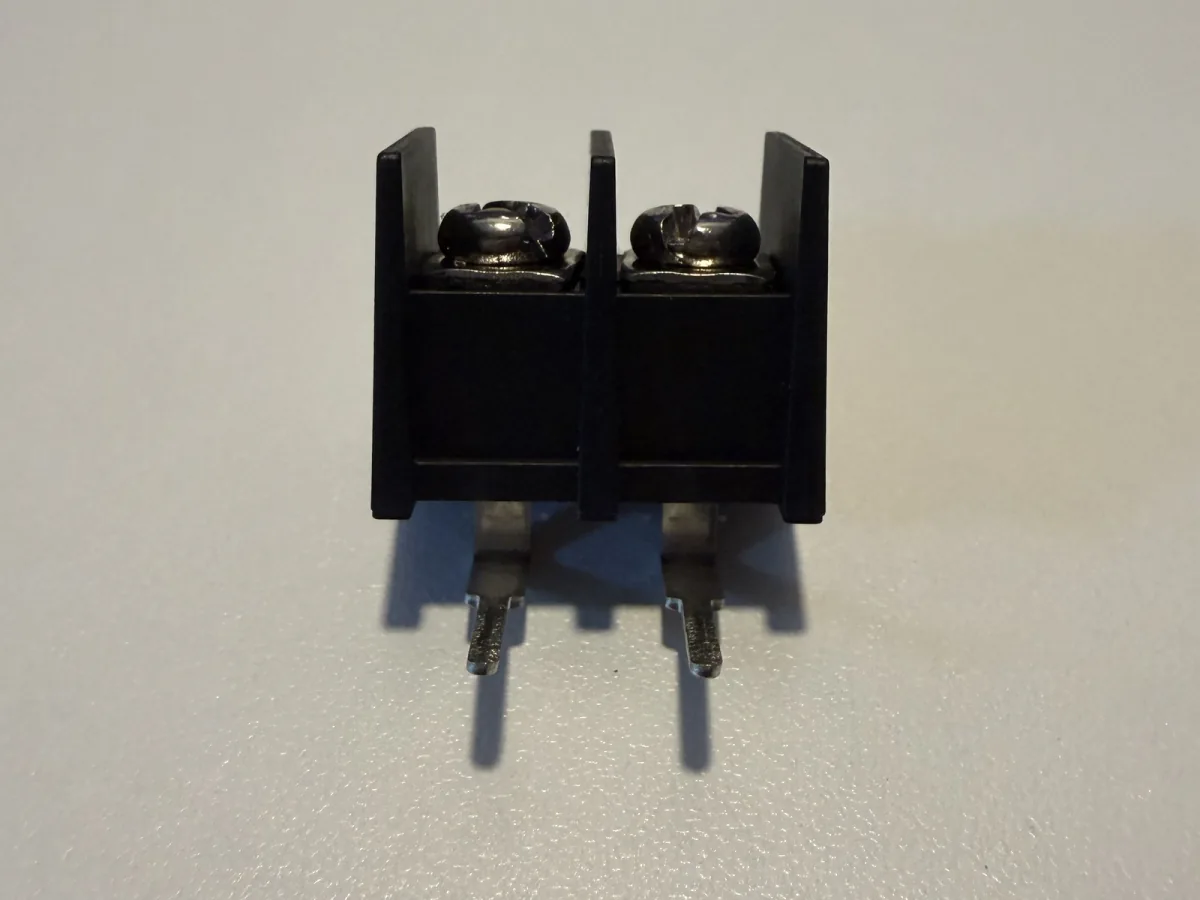

KF45R
Right-angle pins for higher-voltage and higher-current applications
- Pitch
- 9.5mm
- Mounting
- Right-angle PCB mount
- Rated current
- 32A
Spring Terminal Blocks
Spring-clamp connection options for compact signal and equipment wiring. Technical ratings are being confirmed.
KF2EDGKD-5.08
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 5.08 mm
- Data status
- Technical data pending
KF2EDGKDM-5.08
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 5.08 mm
- Data status
- Technical data pending
KF2EDGKN-3.5
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 3.5 mm
- Data status
- Technical data pending
KF15EDGKD-2.5
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 2.5 mm
- Data status
- Technical data pending
KF15EDGKD-3.5(3.81)
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 3.5 / 3.81 mm
- Data status
- Technical data pending
KF15EDGKDM-3.5(3.81)
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 3.5 / 3.81 mm
- Data status
- Technical data pending
KF141R-2.54
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 2.54 mm
- Data status
- Technical data pending
KF141V-2.54
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 2.54 mm
- Data status
- Technical data pending
KF142R-5.08
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 5.08 mm
- Data status
- Technical data pending
KF142V-5.08
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 5.08 mm
- Data status
- Technical data pending
KF142V-7.62
Spring-clamp connection; technical data pending supplier confirmation.
- Pitch reference
- 7.62 mm
- Data status
- Technical data pending
