01 / 03PLUGGABLE TERMINAL BLOCKS
KF15EDG-3.5
Pluggable terminal block
3.5mm terminal block for vertical pcb mount.
PITCH3.5mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT8A

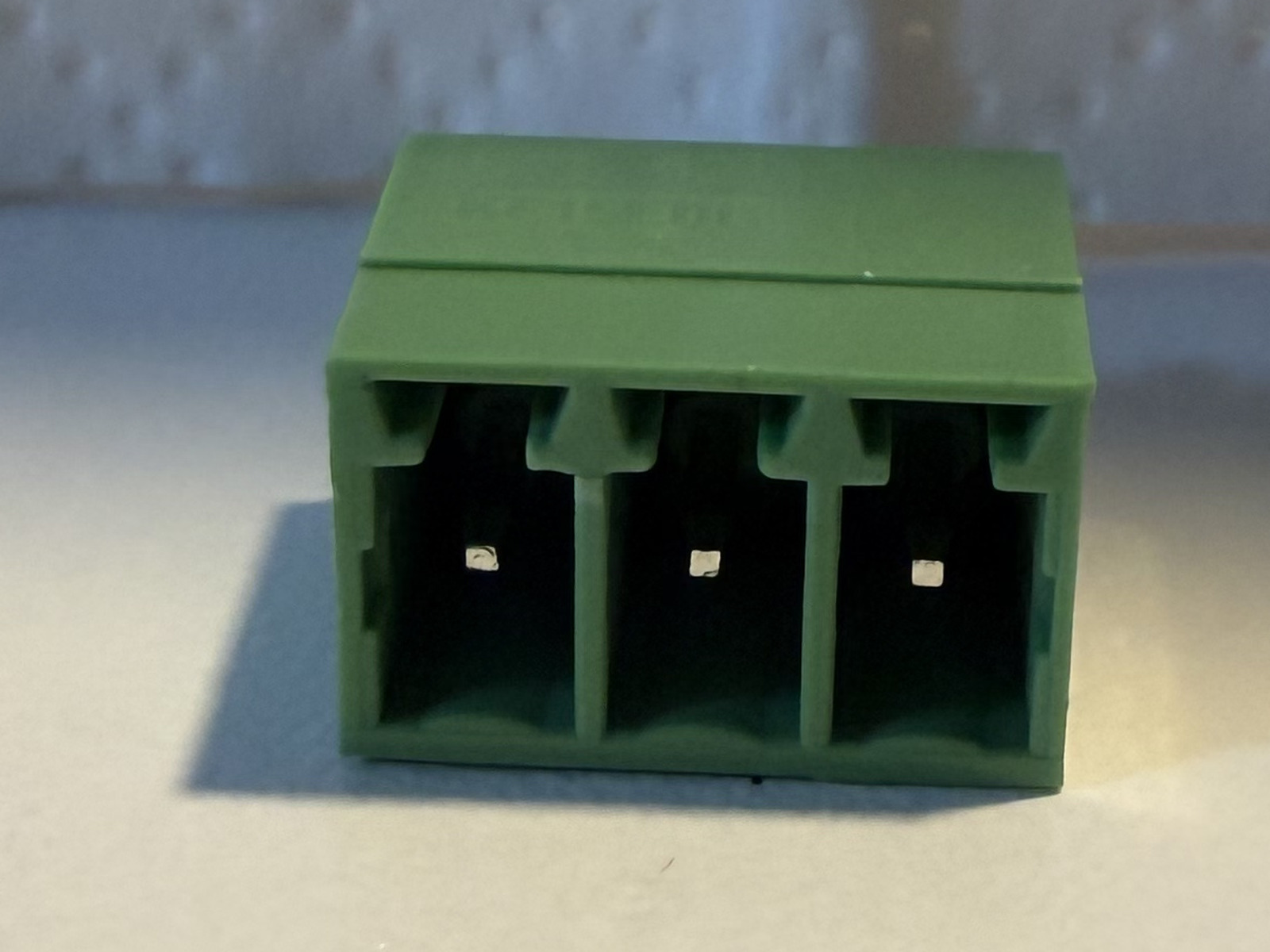

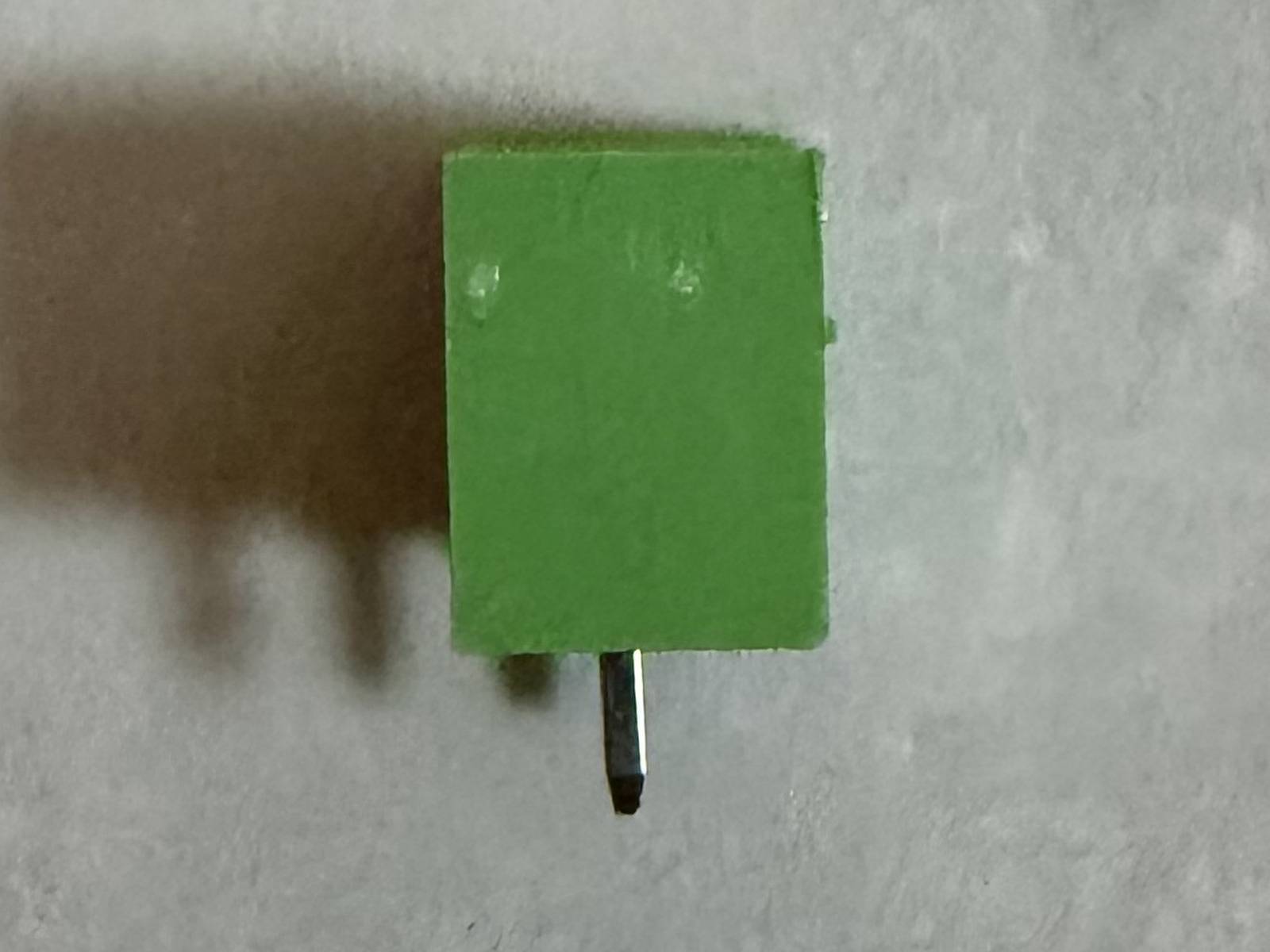

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF15EDG-3.5.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 8A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 3.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 28-16AWG (1.5mm²)
- Strip length
- 5-6mm
- Recommended torque
- 0.2Nm
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, tin plated
- Standard color
- Green
