01 / 03PLUGGABLE TERMINAL BLOCKS
KF15EDGK-3.5
Pluggable terminal block with locking latch
Locking latch for a secure connection

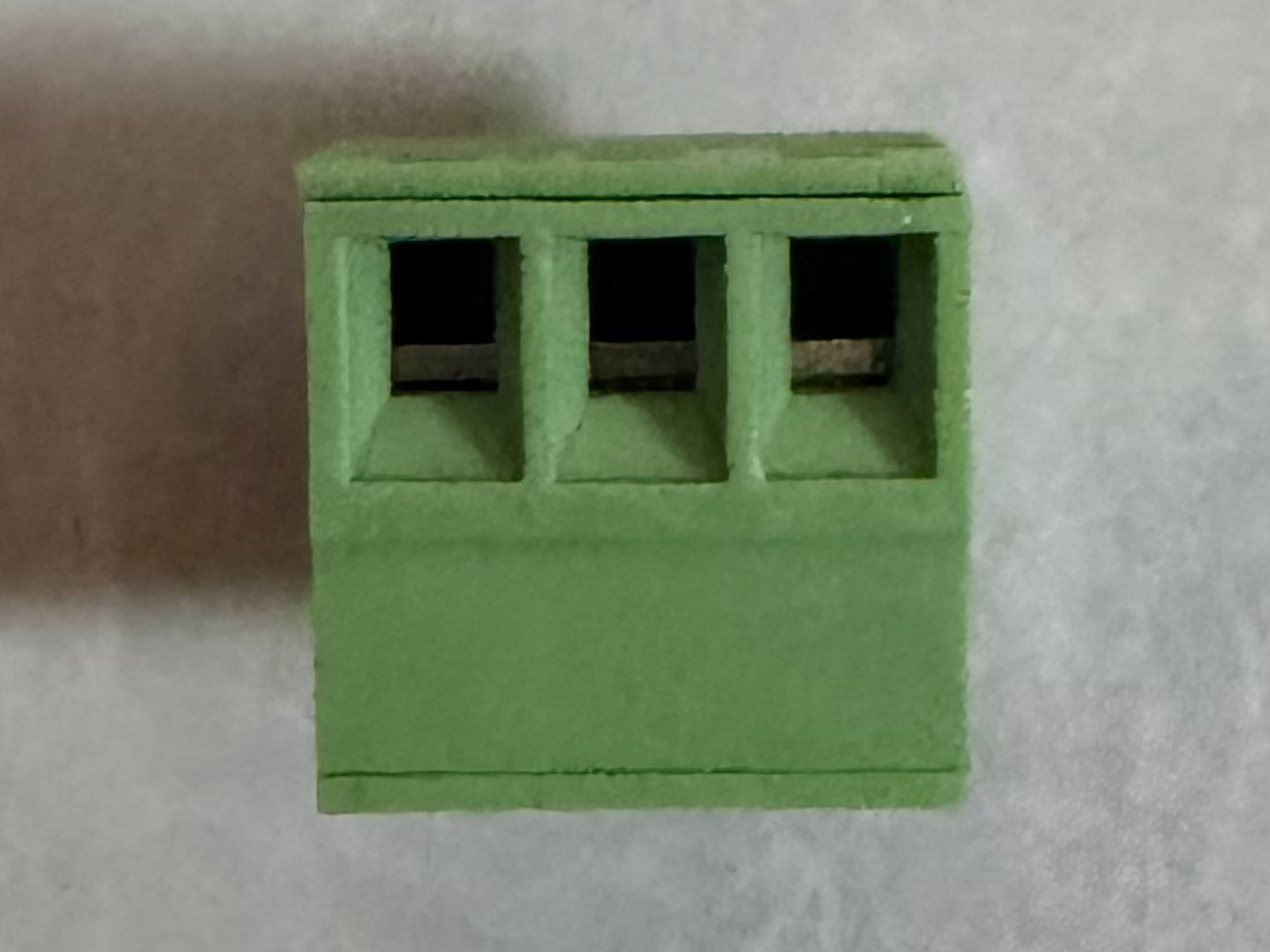

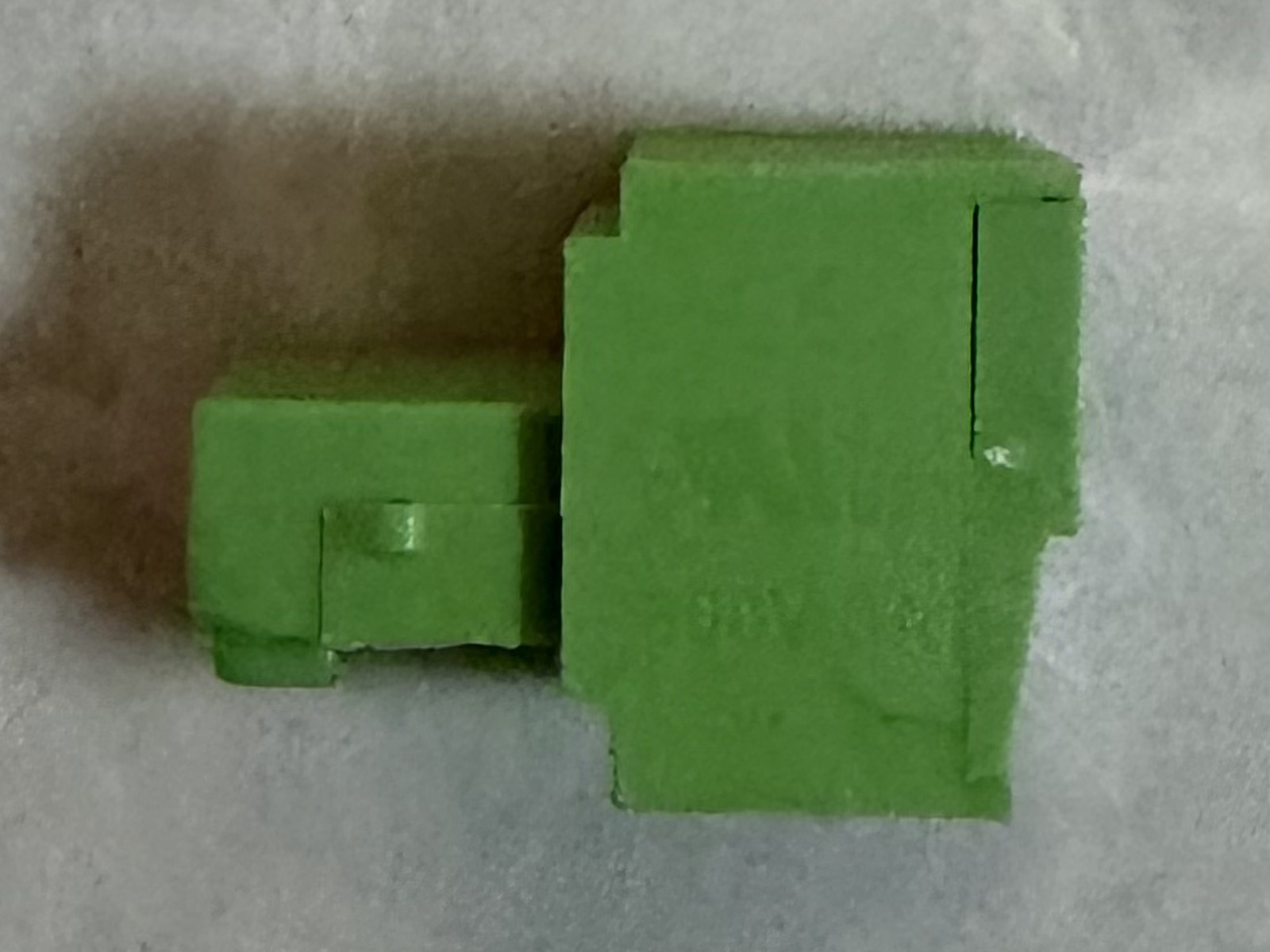

Inspect the connection from multiple angles.
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
Selection reference for KF15EDGK-3.5.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 7A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 3.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 28-16AWG (1.5mm²)
- Strip length
- 5-6mm
- Recommended torque
- 0.2Nm
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, tin plated
- Standard color
- Green
PLUG & HEADER PAIR REQUEST
Need the mating half for KF15EDGK-3.5?
The supplied catalog lists this model in the pluggable terminal-side range. The exact counterpart still depends on the complete model and suffix, position count, mating face, orientation, coding, latch or flange, ratings, drawings and a fully mated sample.
Pitch alone does not approve a counterpart. Keep an unknown model explicit so it can be resolved during supplier review.
