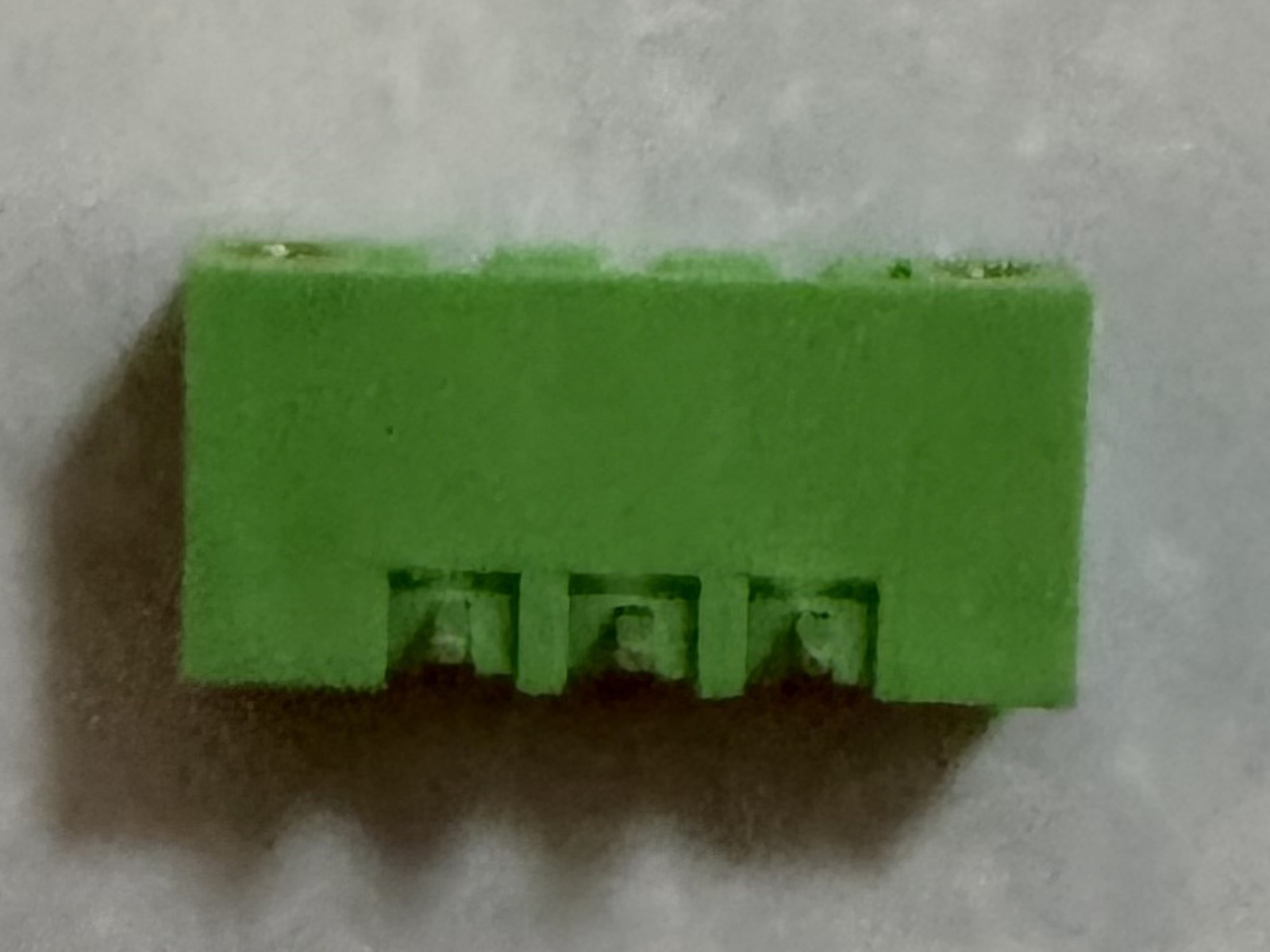

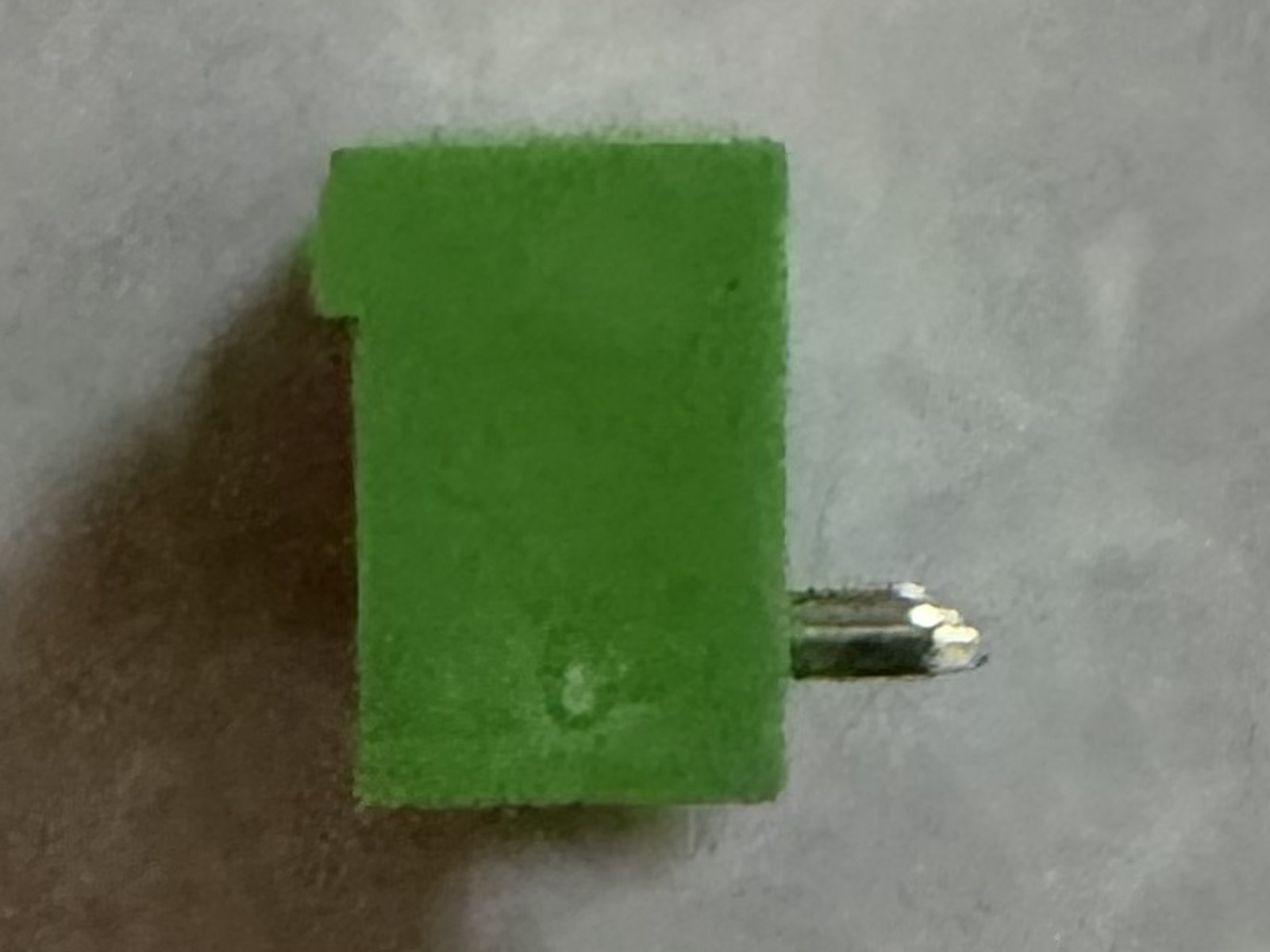

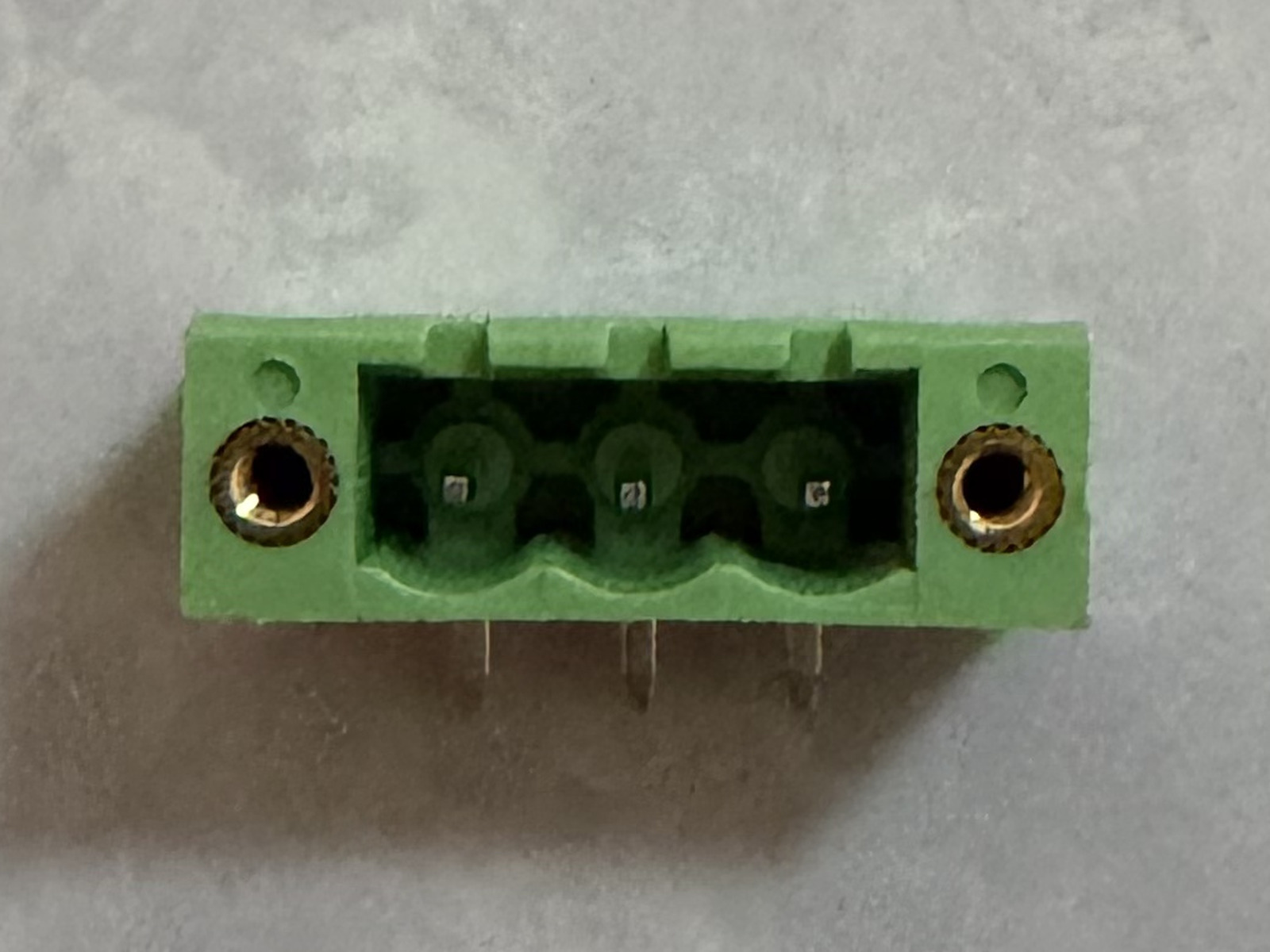

KF2EDGRP-5.08 Pin Header
Right-angle pin header with mounting flange
Right-angle male pin header with mounting flange
Inspect the connection from multiple angles.
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
Selection reference for KF2EDGRP-5.08 Pin Header.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V (UL) / 320V (IEC)
- Rated current
- 15A (UL) / 20A (IEC)
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 5.08mm
- Positions
- 2P-24P
- Mounting
- Right-angle PCB mount
- Insulator
- PA66, UL94V-0
- Contact
- Brass, tin plated
- Standard color
- Green
PLUG & HEADER PAIR REQUEST
Need the mating half for KF2EDGRP-5.08 Pin Header?
The supplied catalog explicitly identifies this model as a pin header. The exact counterpart still depends on the complete model and suffix, position count, mating face, orientation, coding, latch or flange, ratings, drawings and a fully mated sample.
Pitch alone does not approve a counterpart. Keep an unknown model explicit so it can be resolved during supplier review.
