KF2EDGRK-5.08

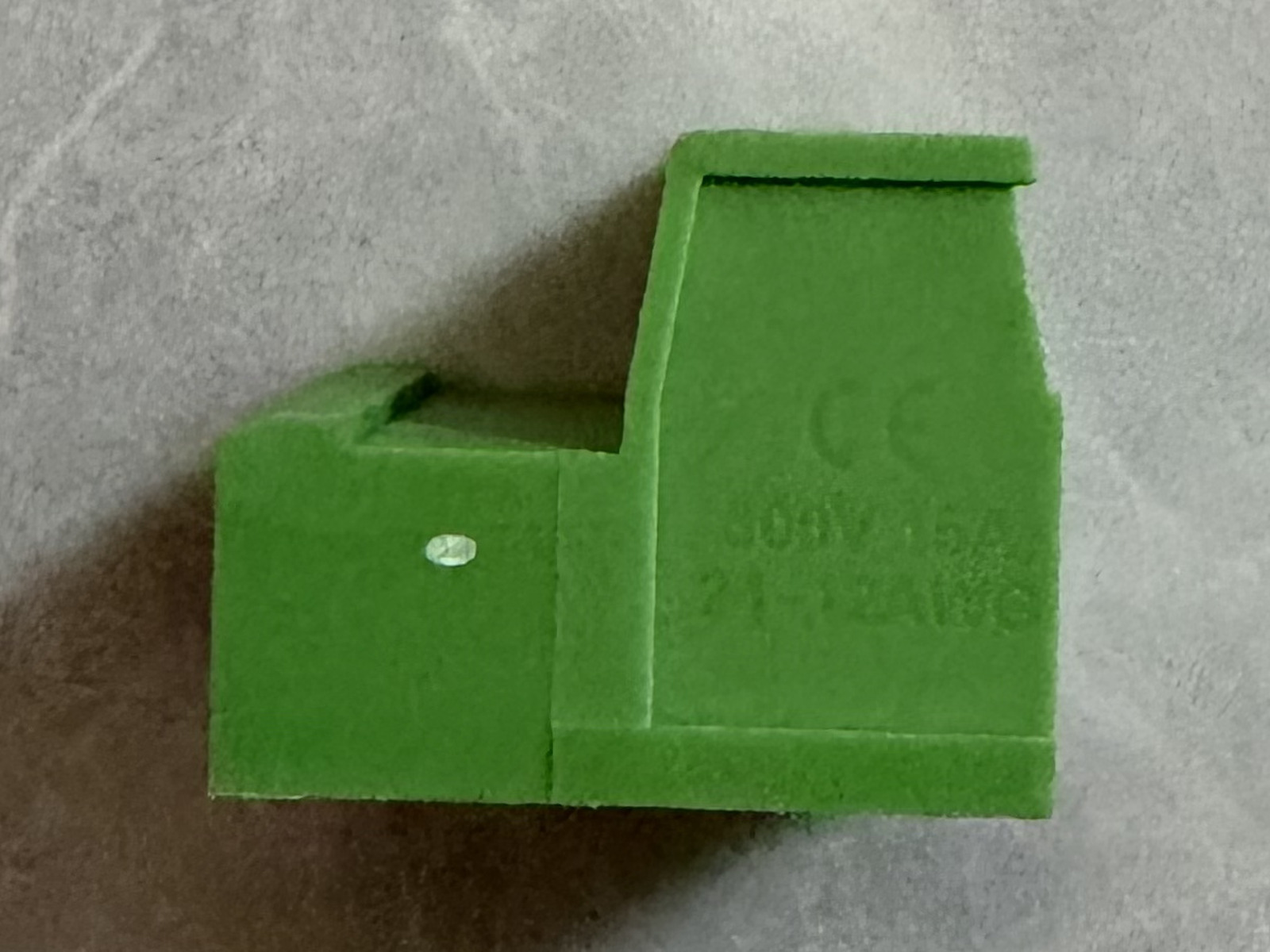

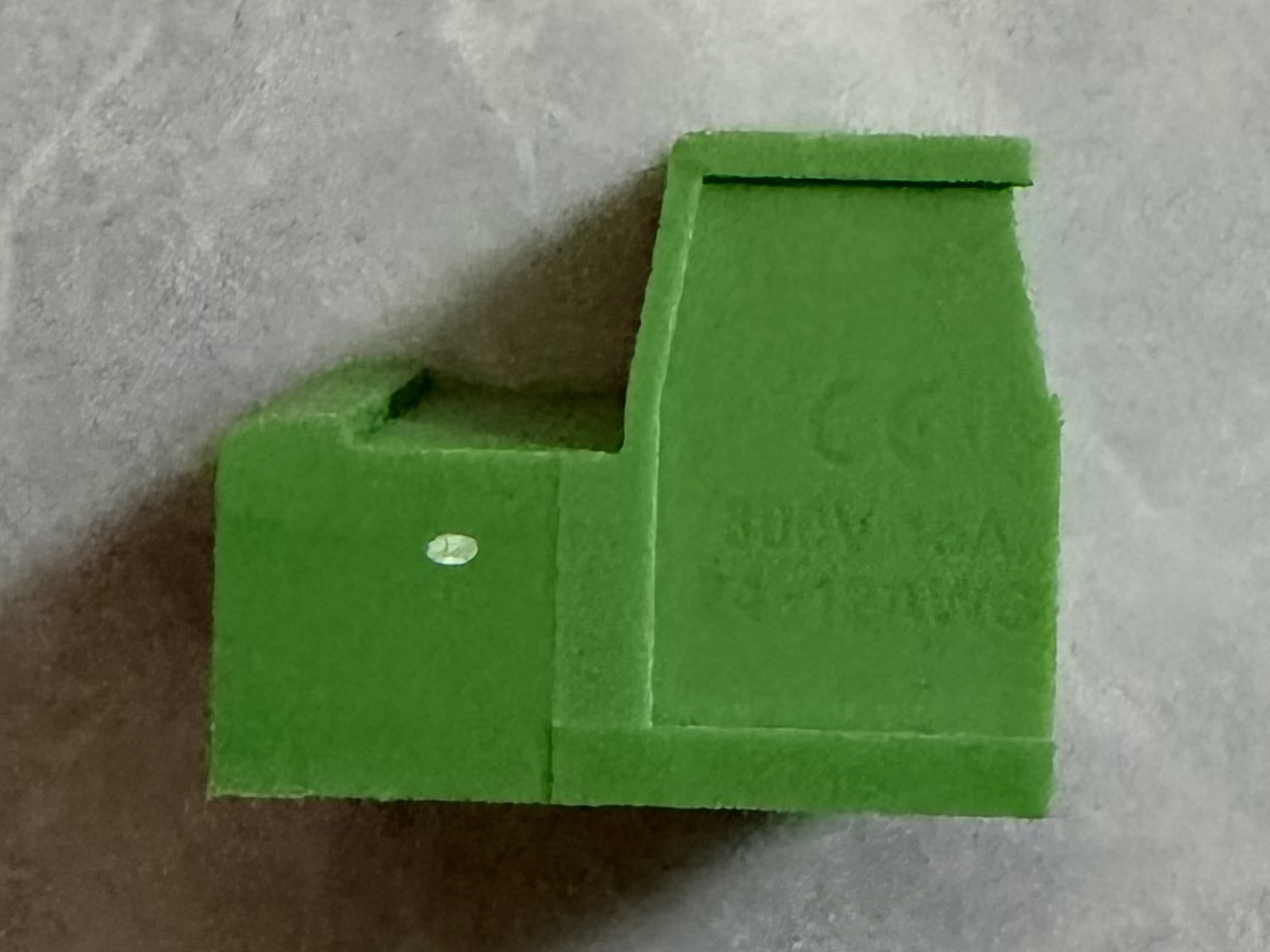

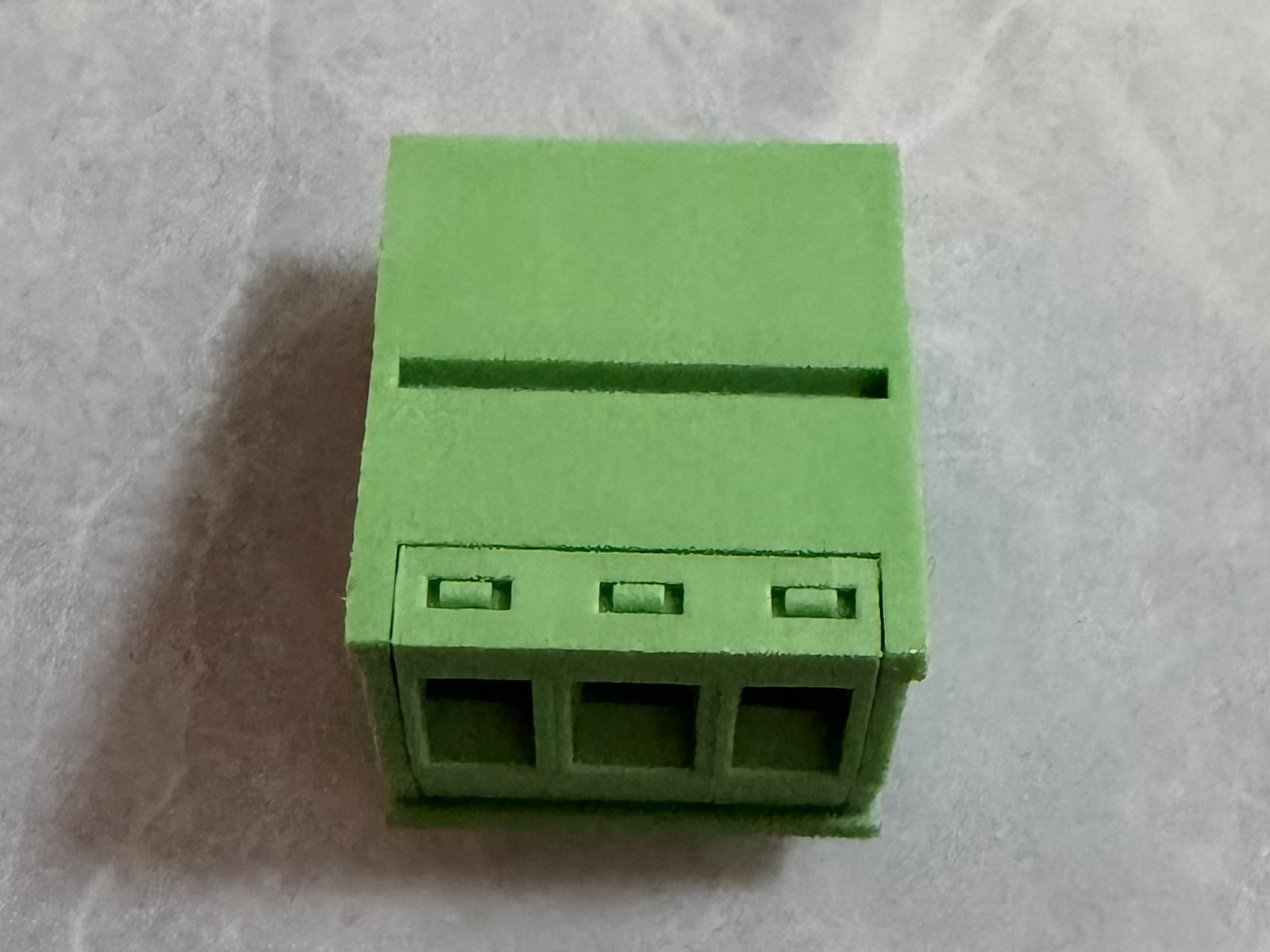

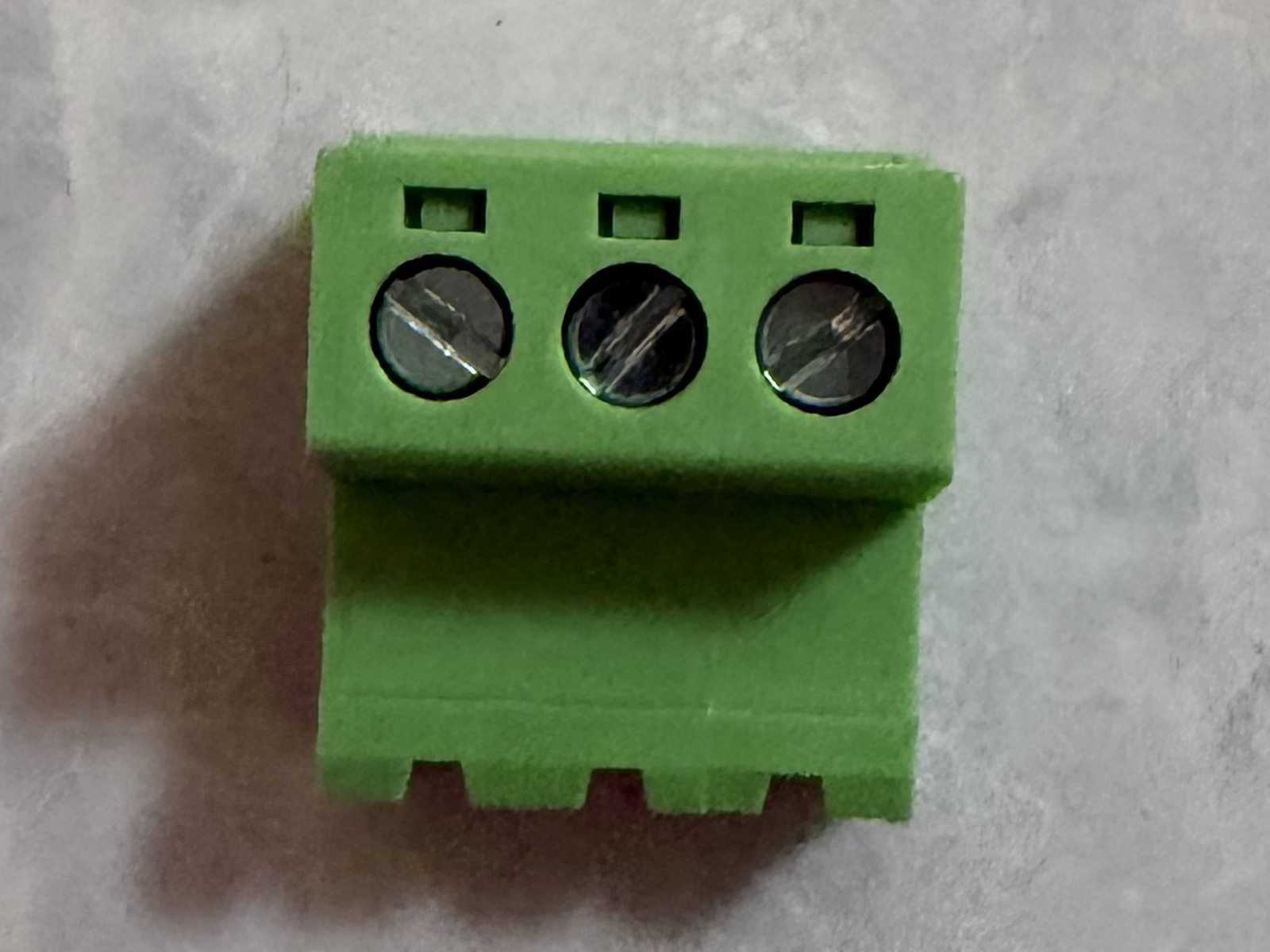

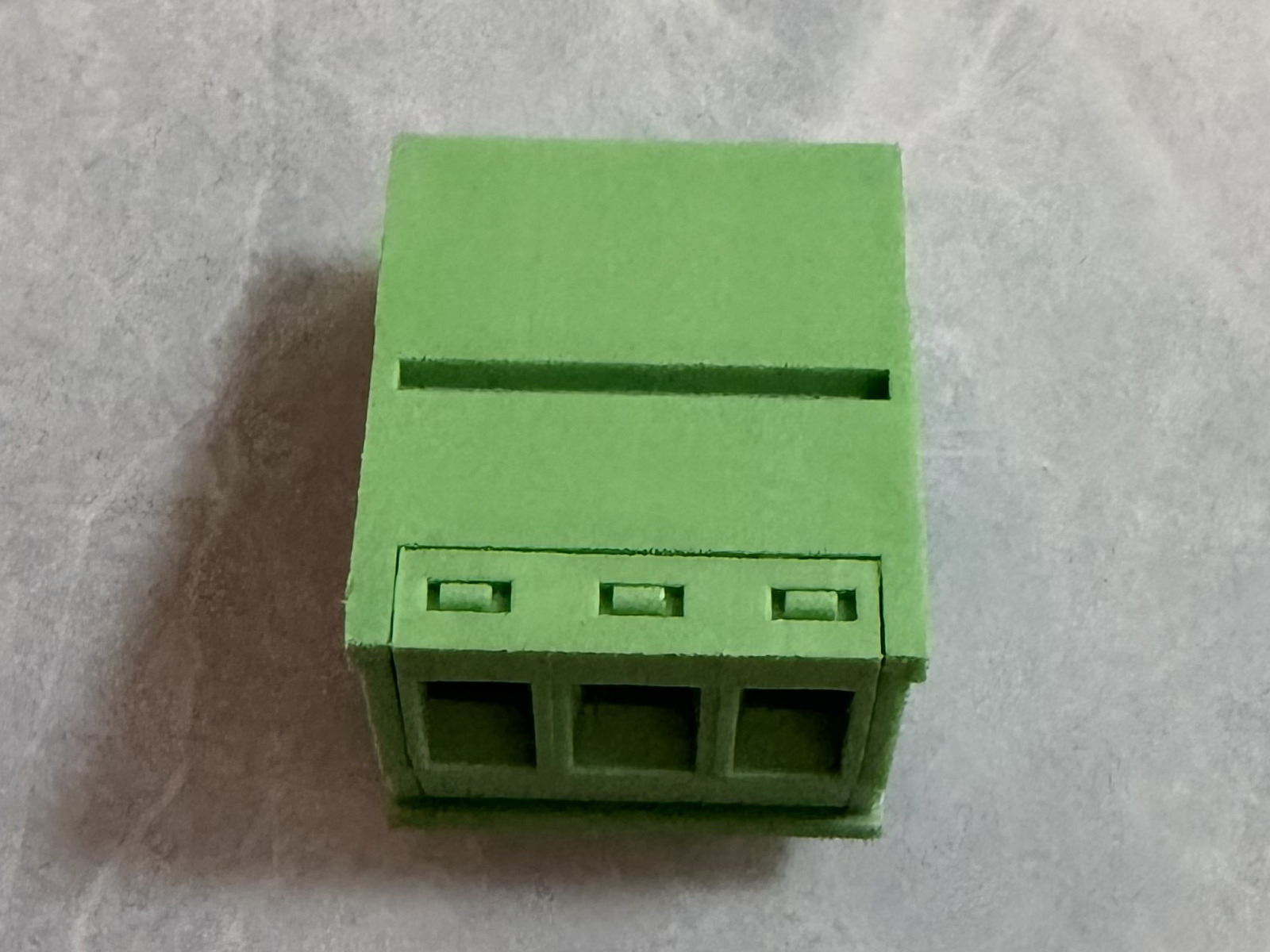

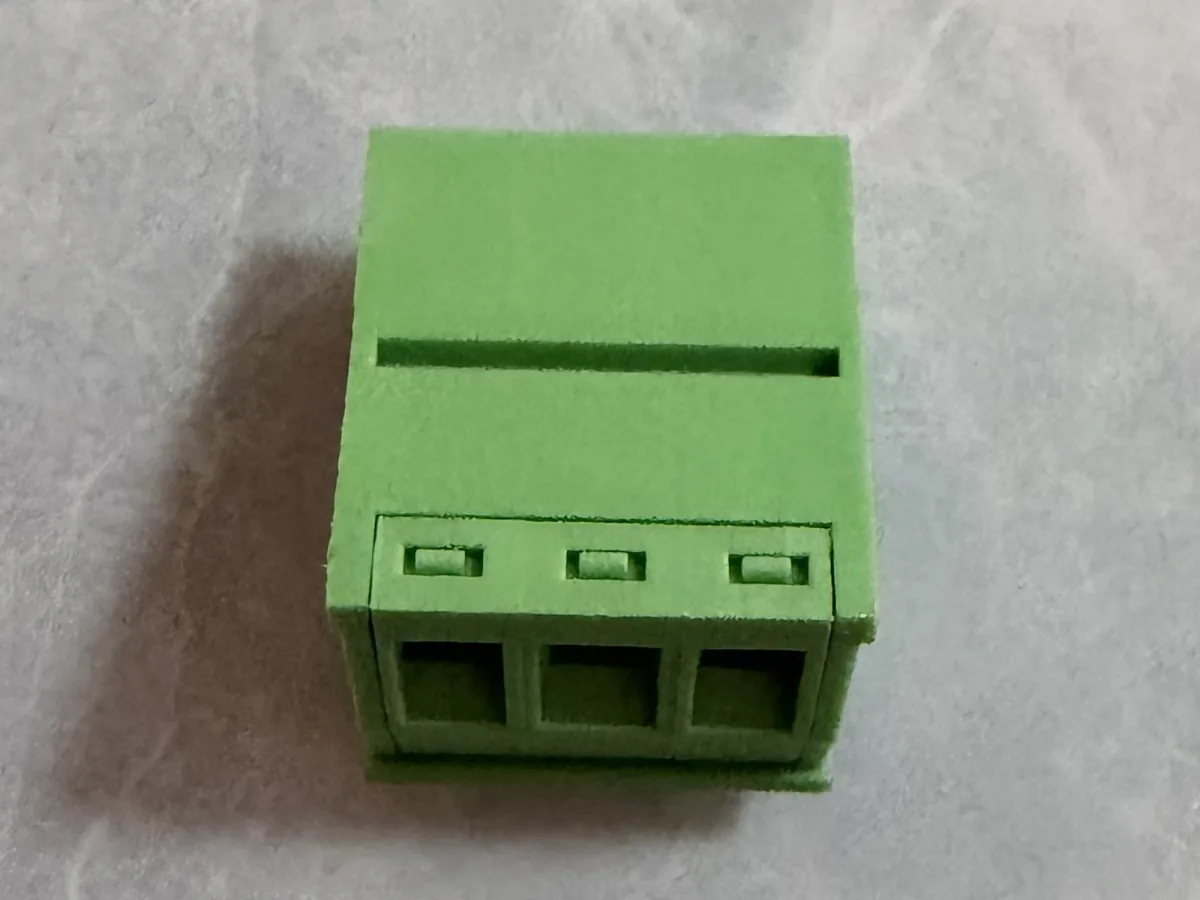

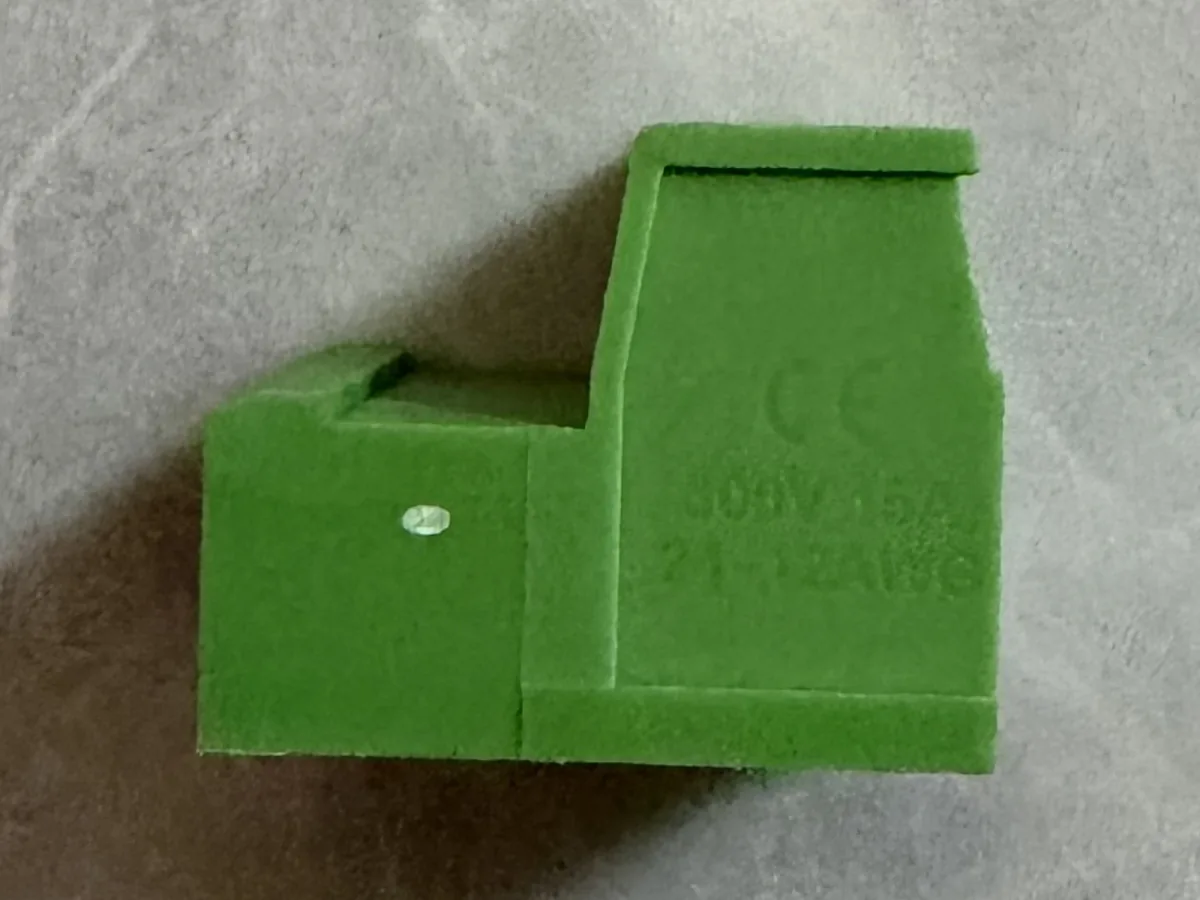

Right-angle pluggable terminal block with latch
Right-angle pins with locking latch
Inspect the connection from multiple angles.
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
Selection reference for KF2EDGRK-5.08.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V (UL) / 320V (IEC)
- Rated current
- 15A (UL) / 20A (IEC)
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 5.08mm
- Positions
- 2P-24P
- Mounting
- Right-angle PCB mount
- Wire range
- 28-12AWG (2.5mm²)
- Strip length
- 6-7mm
- Recommended torque
- 0.5Nm
- Screw
- M2.6
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, nickel plated
- Standard color
- Green
