01 / 04PCB SCREW TERMINAL BLOCKS
KF128-7.5
PCB screw terminal block
Wide-pitch design for higher-current applications
PITCH7.5mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT20A

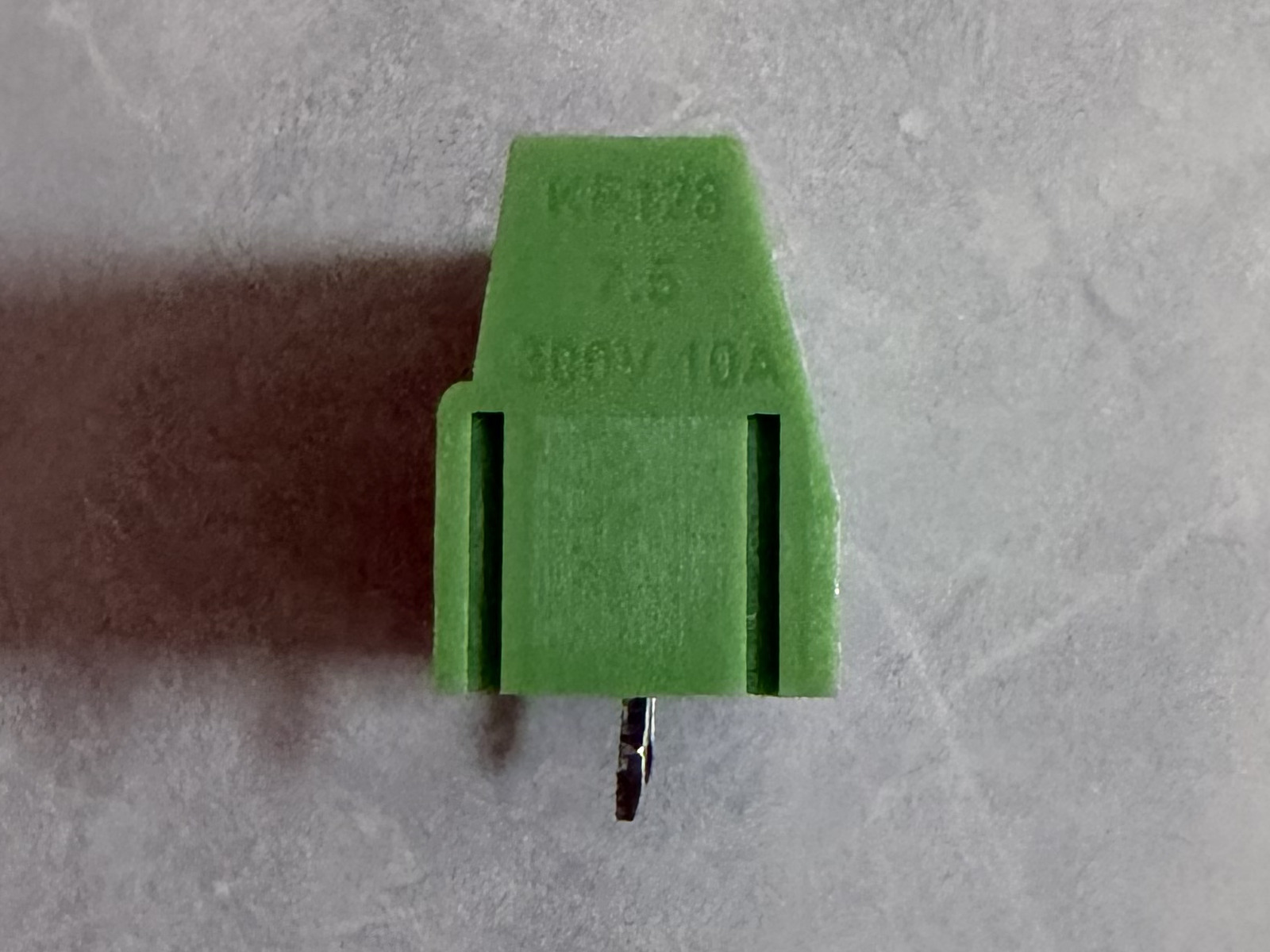

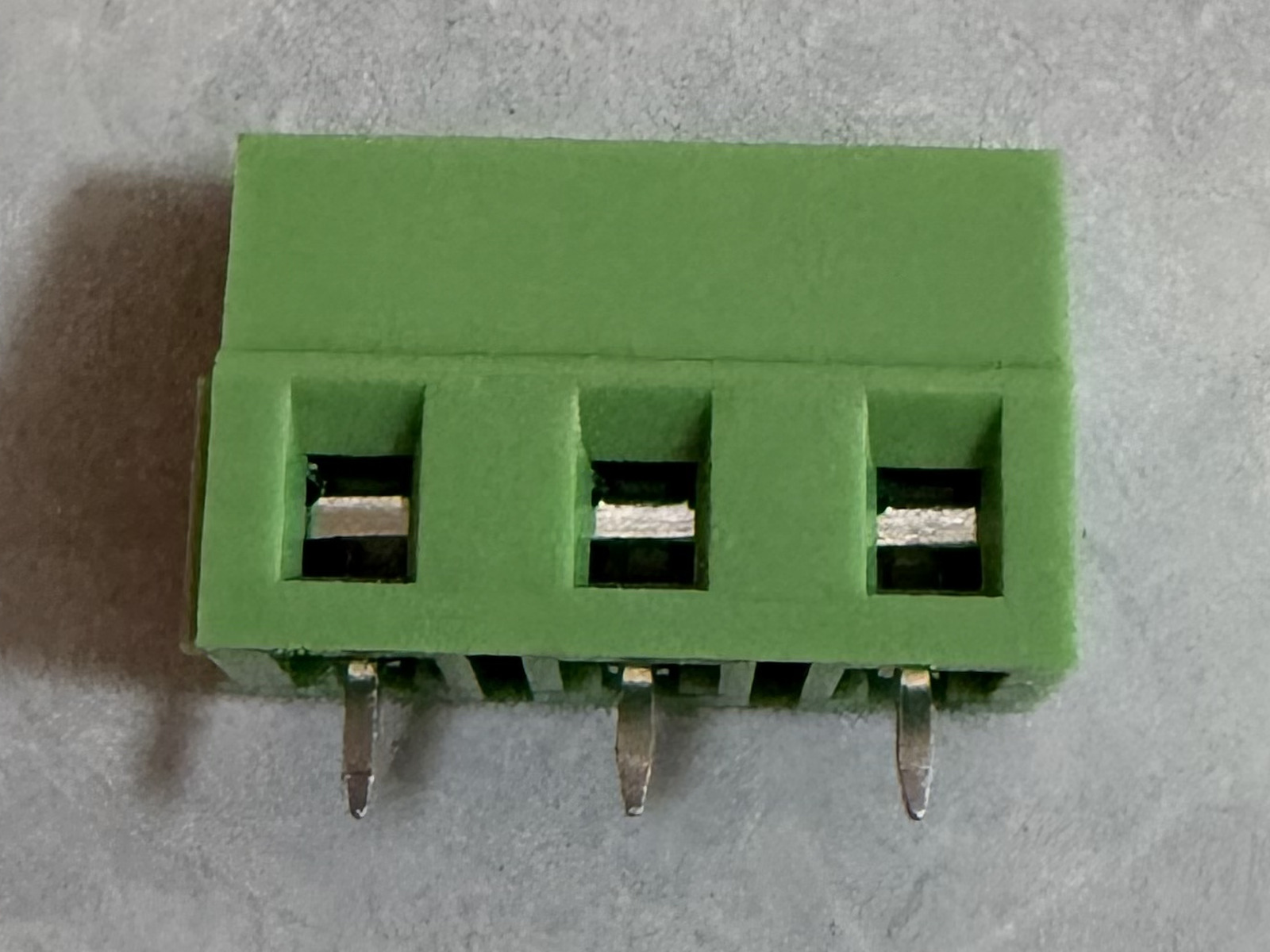

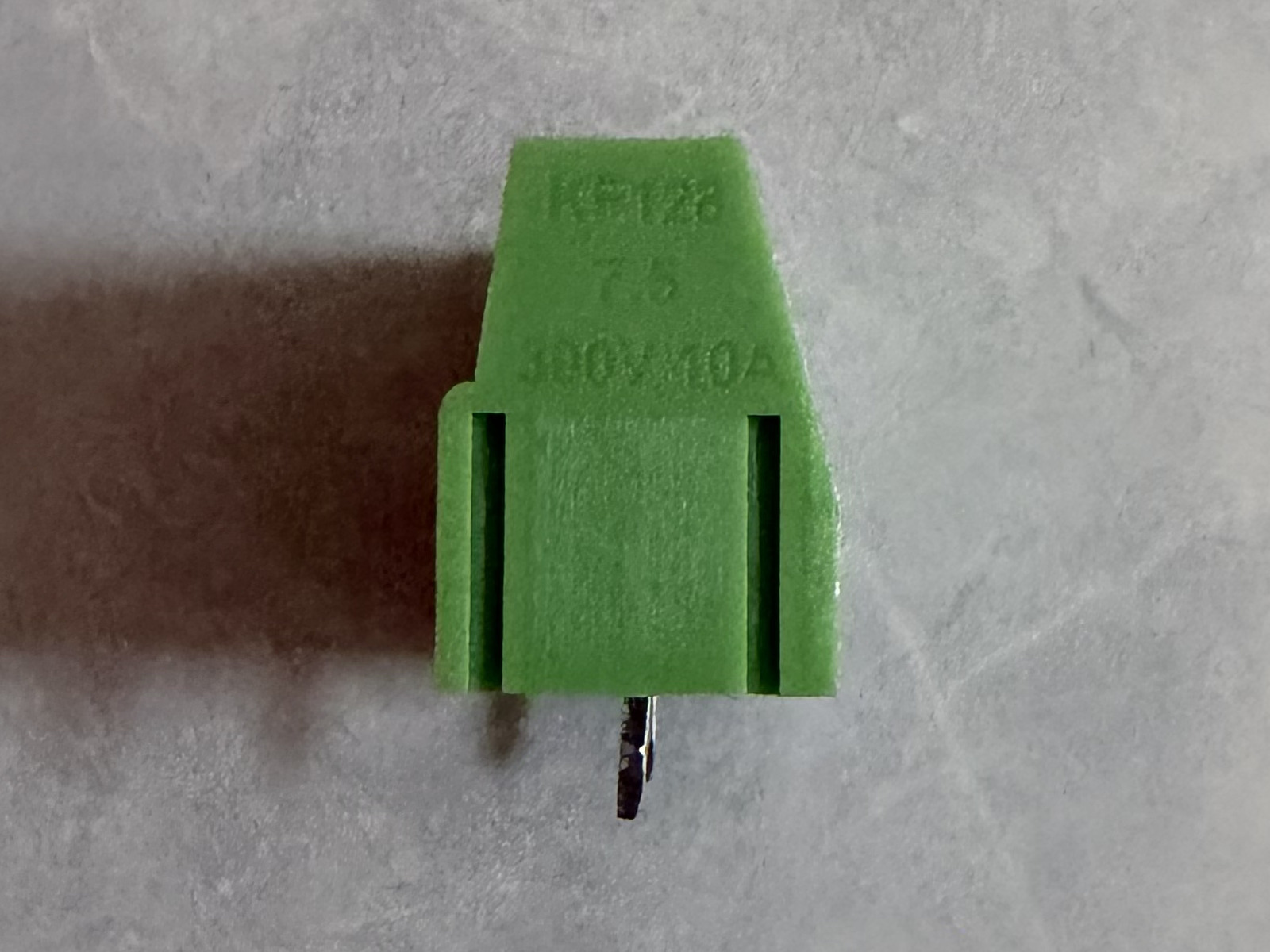

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KF128-7.5.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 20A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 7.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 20-12AWG (4.0mm²)
- Strip length
- 7mm
- Recommended torque
- 0.8Nm
- Screw
- M3 steel, zinc plated
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, nickel plated
- Standard color
- Green / blue
