01 / 03PCB SCREW TERMINAL BLOCKS
KF129-5.0
PCB screw terminal block
Rising-cage screw connection
PITCH5.0mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT15A

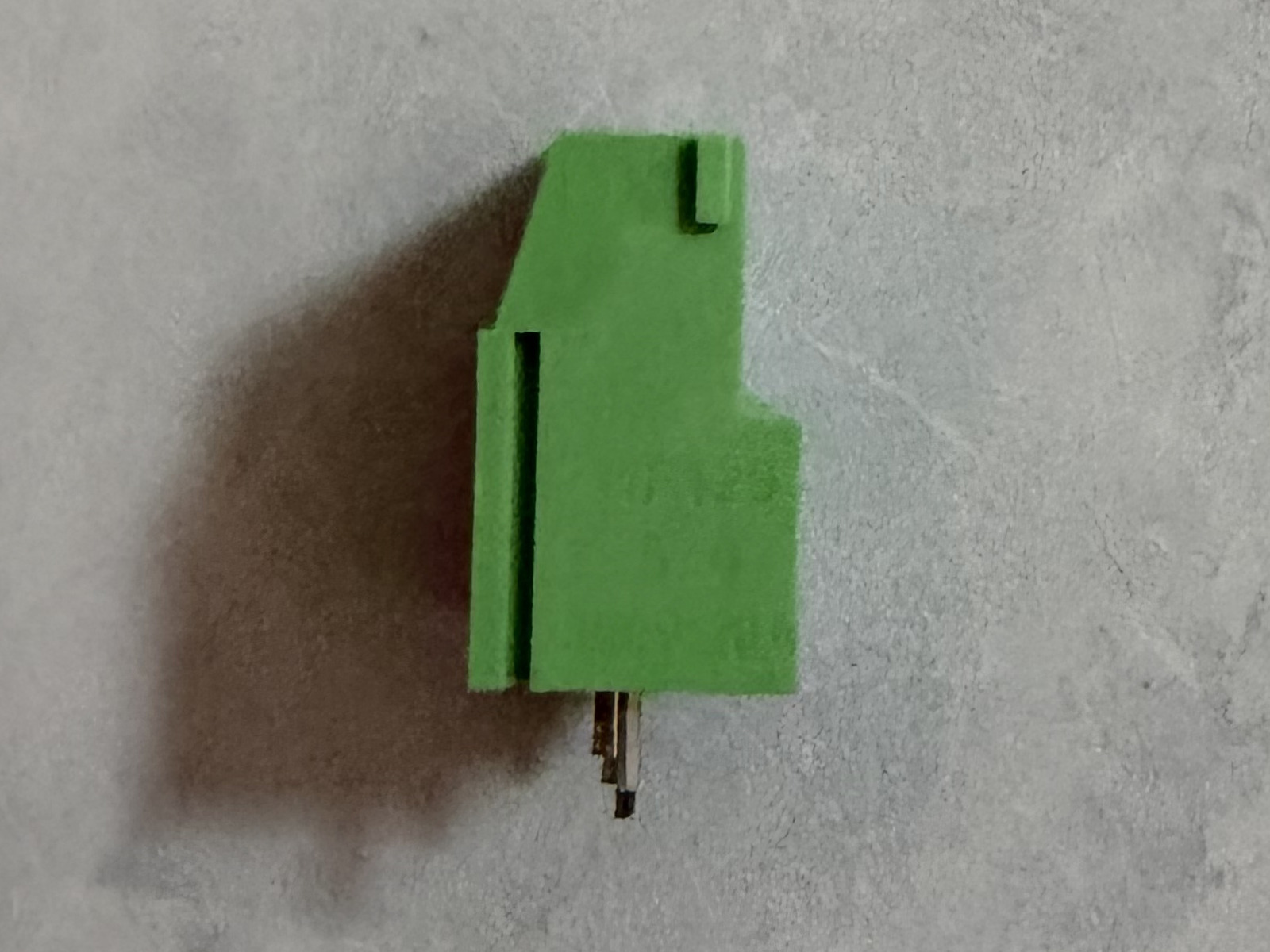

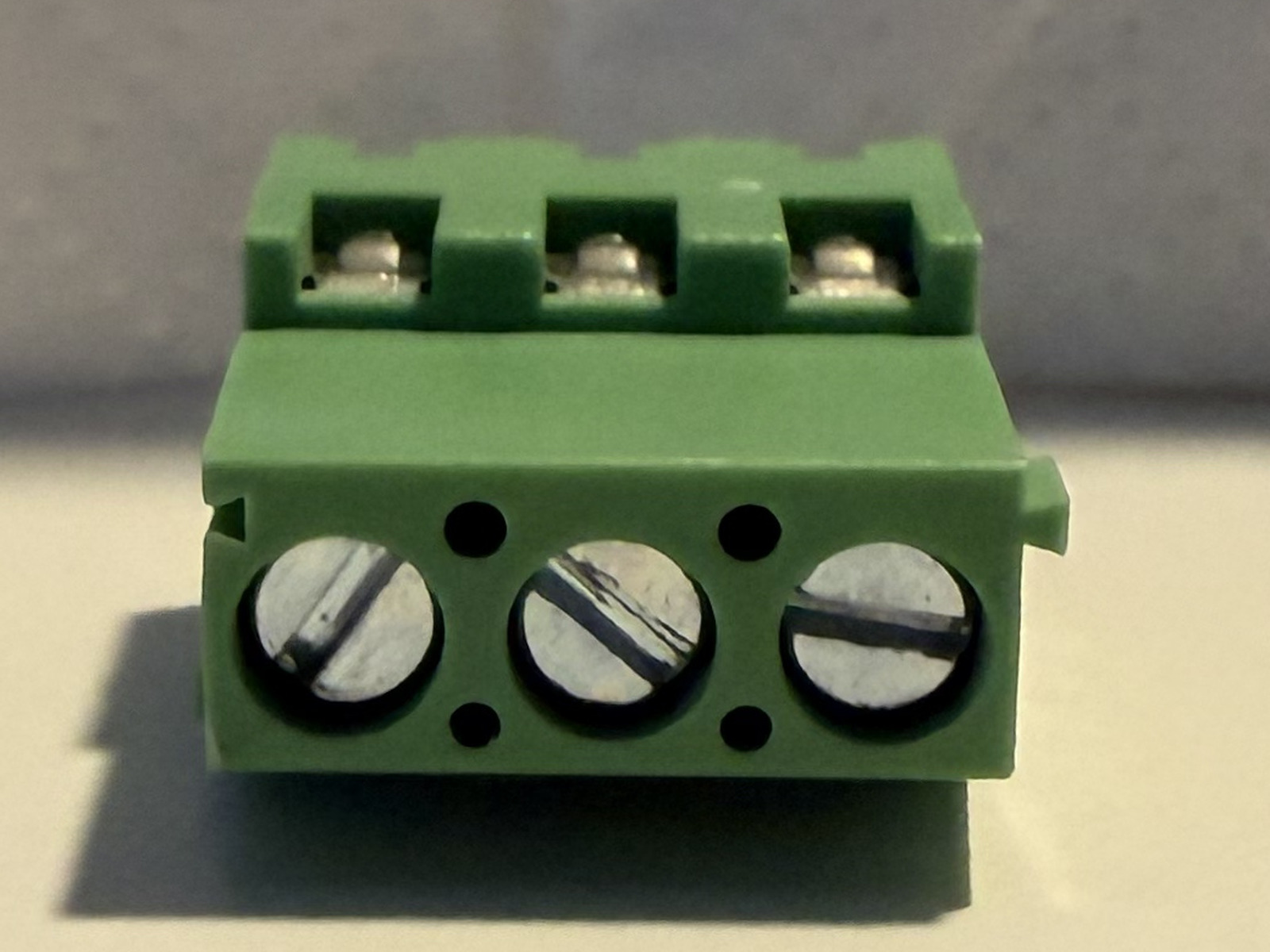

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF129-5.0.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 15A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 5.0mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 22-14AWG (2.5mm²)
- Strip length
- 6mm
- Recommended torque
- 0.5Nm
- Screw
- M2.6 steel, zinc plated
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, nickel plated
- Standard color
- Green / blue
