01 / 03PCB SCREW TERMINAL BLOCKS
KF103-5.0
PCB screw terminal block
5.0mm terminal block for vertical pcb mount.
PITCH5.0mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT10A

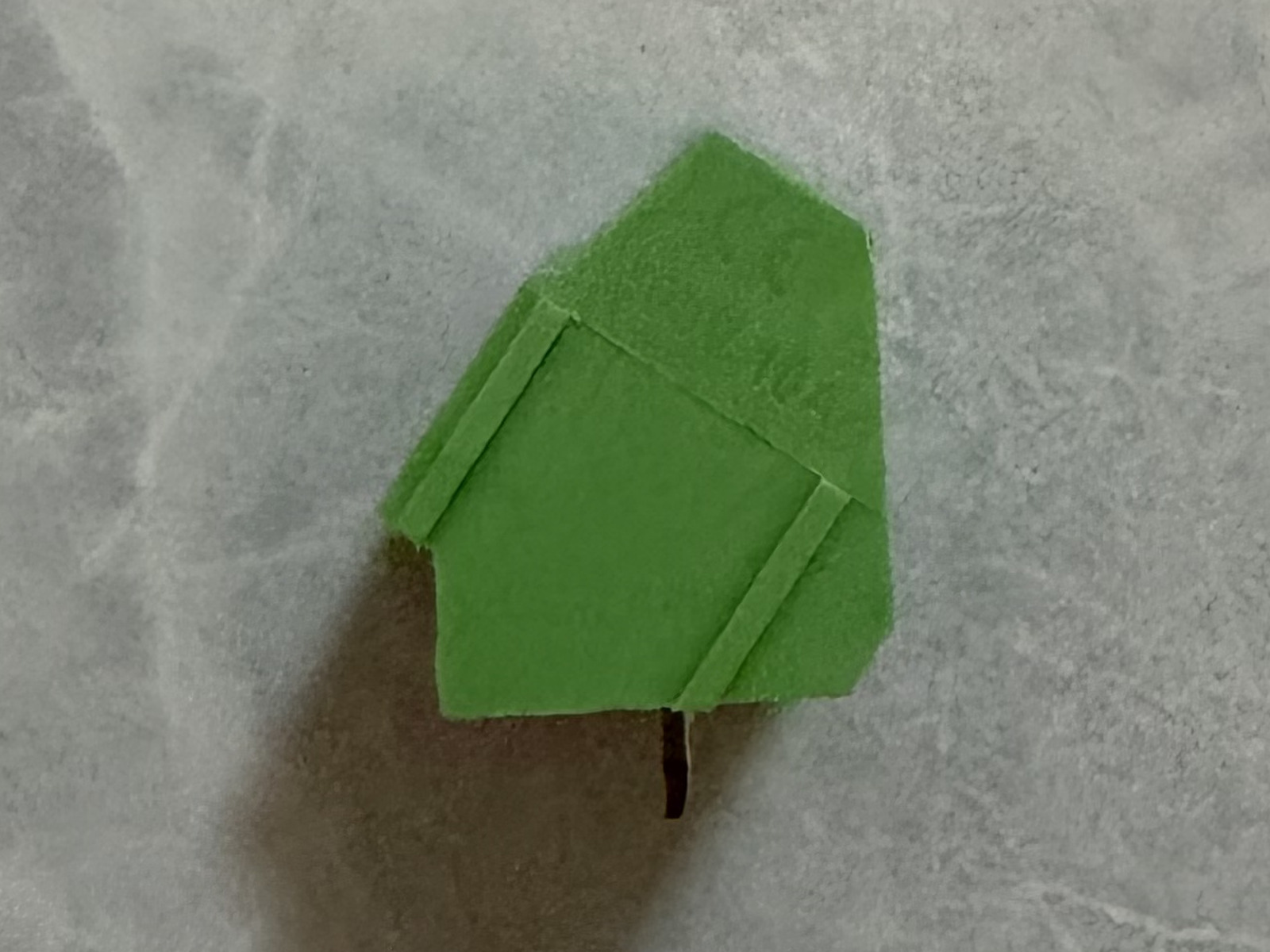

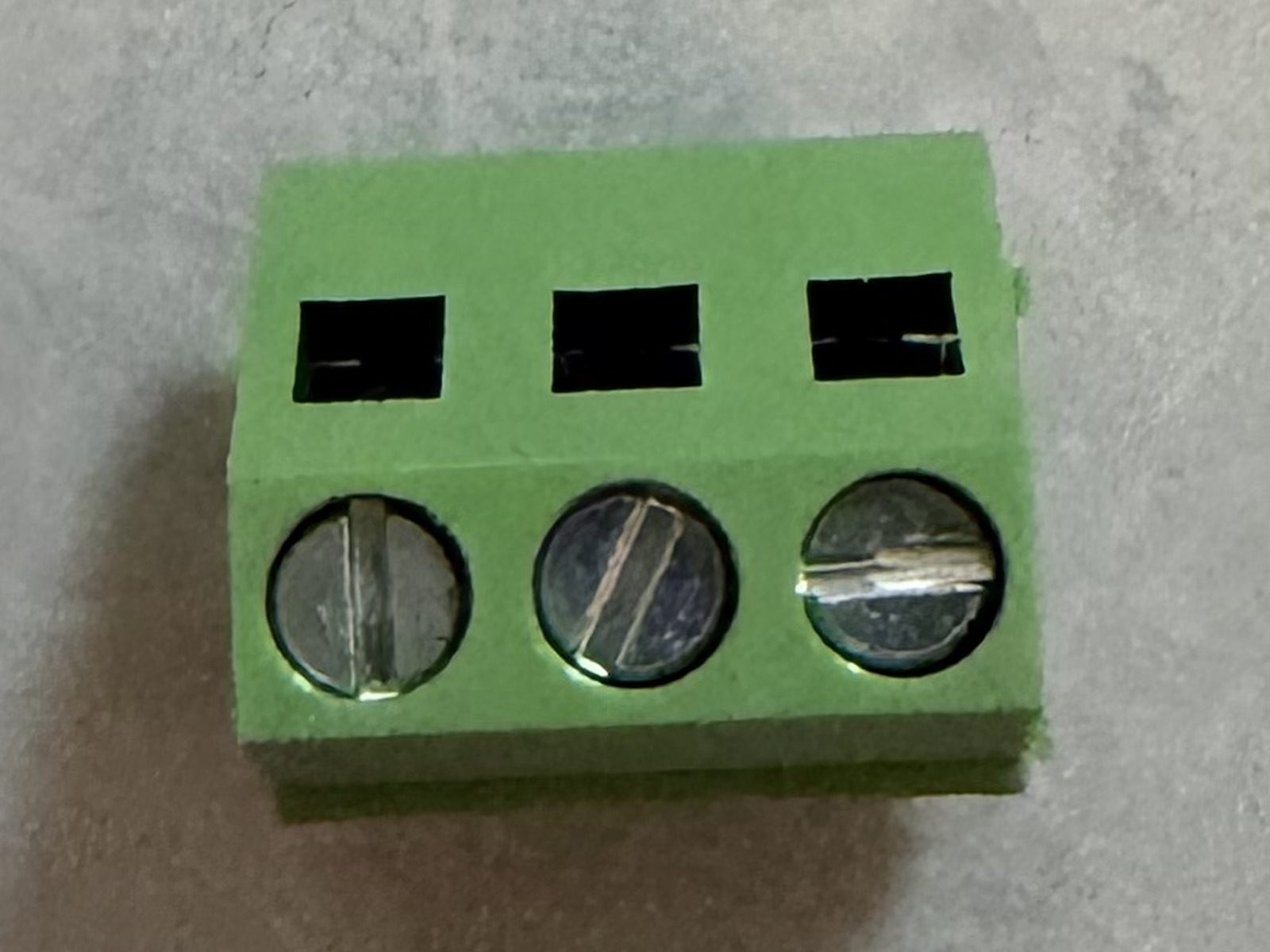

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KF103-5.0.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 10A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 5.0mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 22-14AWG (2.5mm²)
- Strip length
- 5-6mm
- Recommended torque
- 0.5Nm
- Screw
- M2.5 steel, zinc plated
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, nickel plated
- Standard color
- Green / blue
