01 / 03PLUGGABLE TERMINAL BLOCKS
KF15EDGKP-3.81
Pluggable terminal block with latch and flange
Locking latch with mounting flange

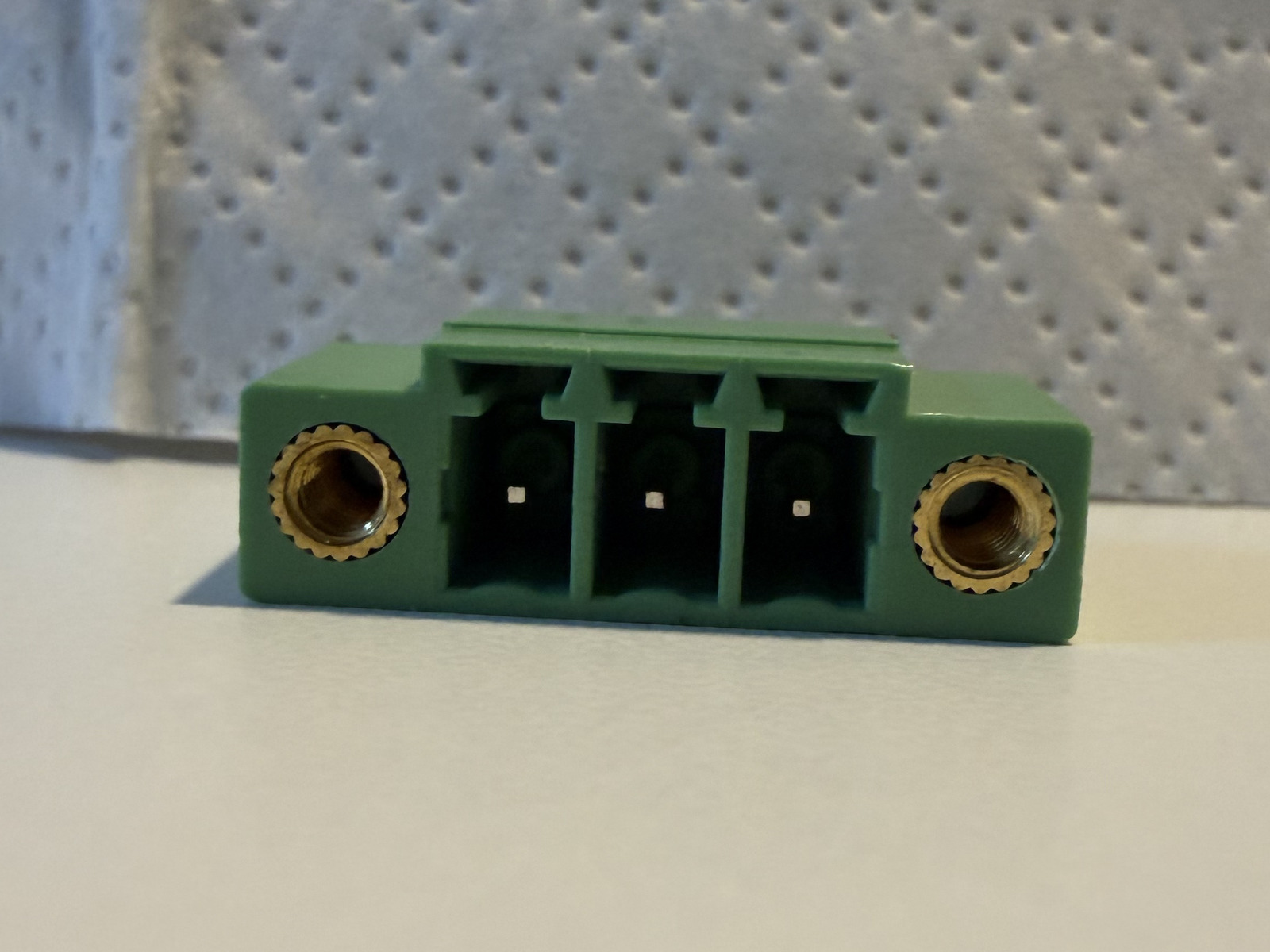

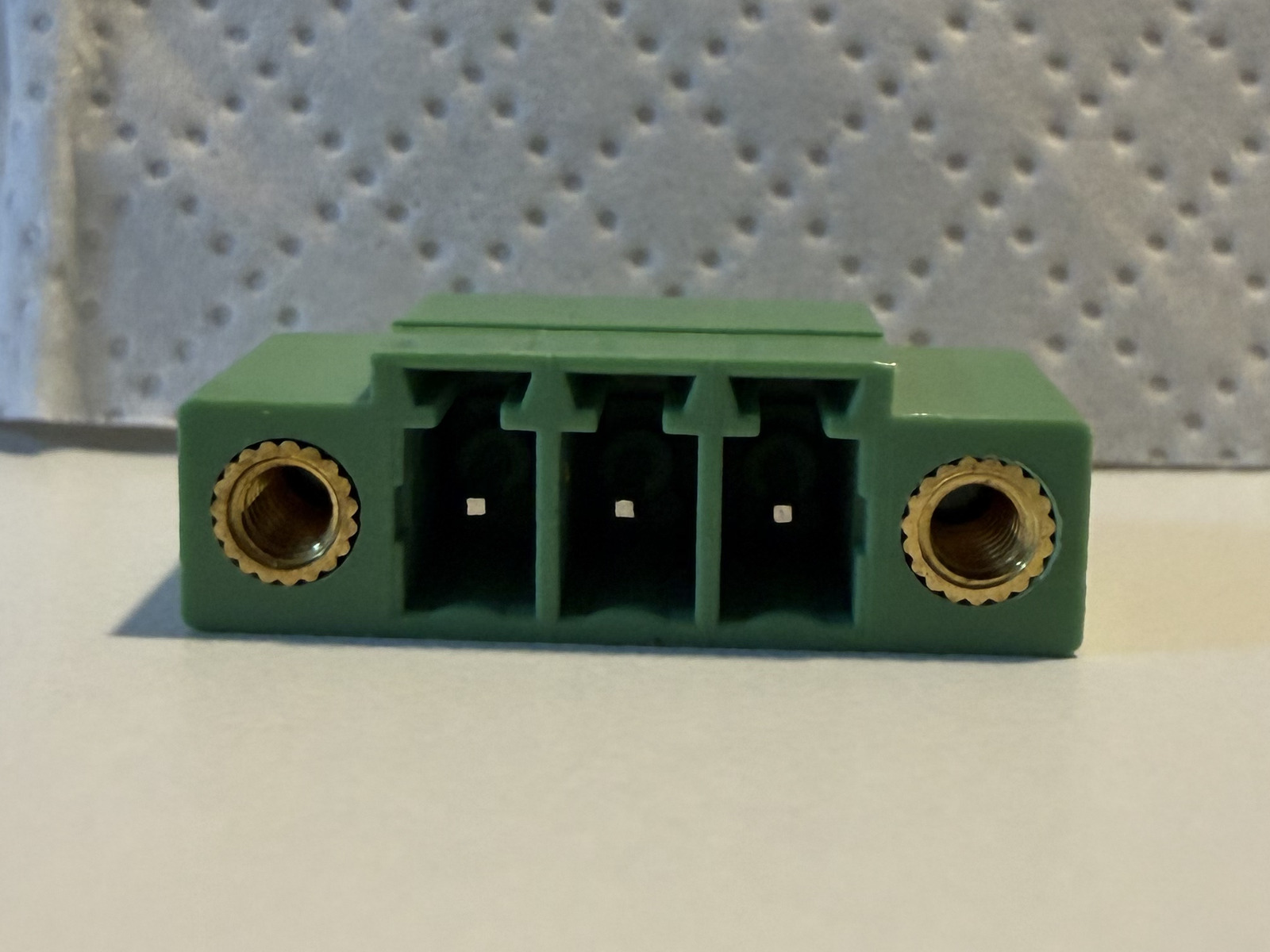

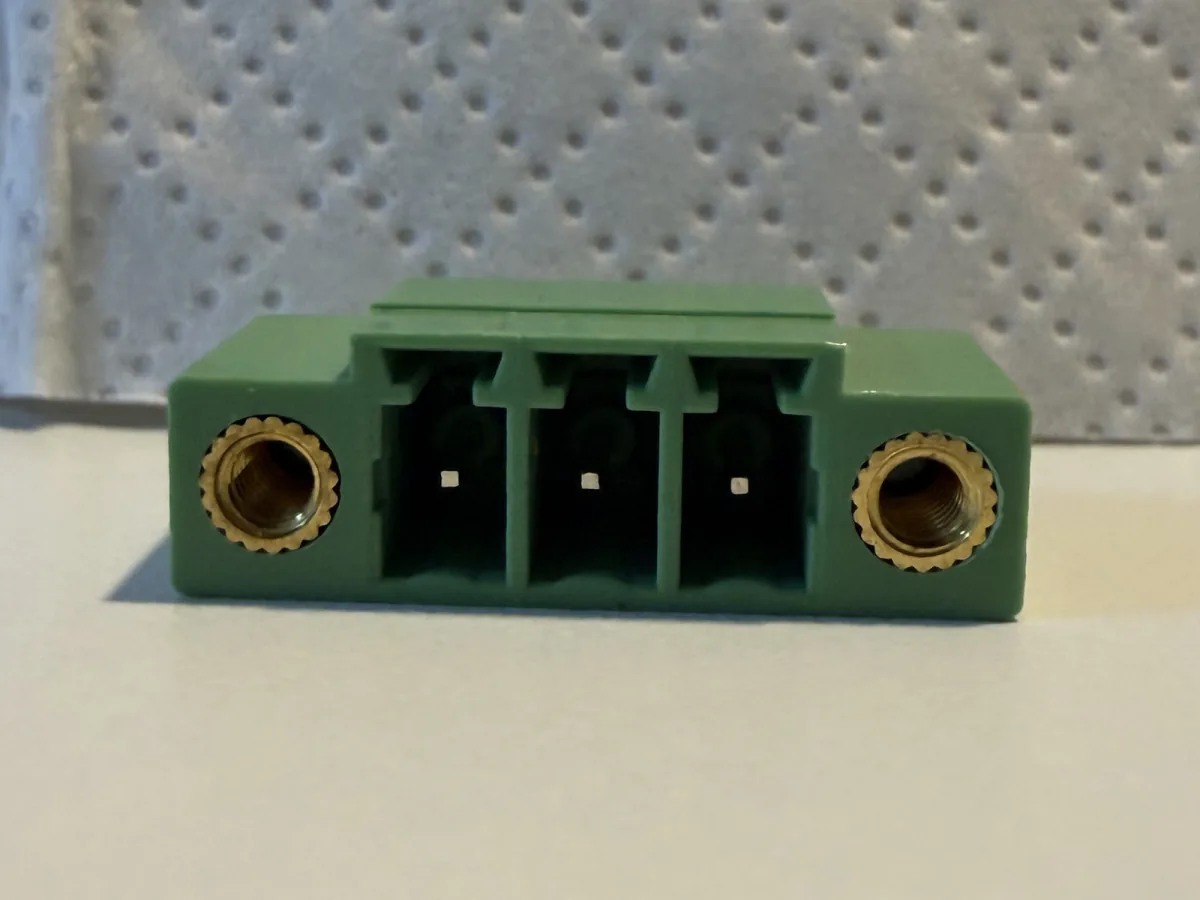

Inspect the connection from multiple angles.
Selection reference for KF15EDGKP-3.81.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 10A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 3.81mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 28-16AWG (1.5mm²)
- Strip length
- 5-6mm
- Recommended torque
- 0.2Nm
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, tin plated
- Standard color
- Green
PLUG & HEADER PAIR REQUEST
Need the mating half for KF15EDGKP-3.81?
The supplied catalog lists this model in the pluggable terminal-side range. The exact counterpart still depends on the complete model and suffix, position count, mating face, orientation, coding, latch or flange, ratings, drawings and a fully mated sample.
Pitch alone does not approve a counterpart. Keep an unknown model explicit so it can be resolved during supplier review.
- CURRENT REFERENCE
- KF15EDGKP-3.81
- CATALOG ROLE
- TERMINAL-SIDE REFERENCE
- REQUESTED EVIDENCE
- matching PCB header + both drawings + mated sample
Continue within Pluggable.
Ranked from current catalog fields: same pitch first, then terminal/header role and mounting direction. These are comparison references, not confirmed substitutes or mating parts.
