KF15EDGKA(B)M-3.81 Screw-clamp pluggable terminal block with latch and flange

01 / 03

PLUGGABLE TERMINAL BLOCKS

KF15EDGKA(B)M-3.81

Screw-clamp pluggable terminal block with latch and flange

Screw-clamp plug with A/B latch options and mounting flange

PITCH3.81mm

POSITIONS2P-24P

RATED VOLTAGE300V

RATED CURRENT10A

Request quote for KF15EDGKA(B)M-3.81 →Compare family models Email specifications

PRODUCT VIEWS

Inspect the connection from multiple angles.

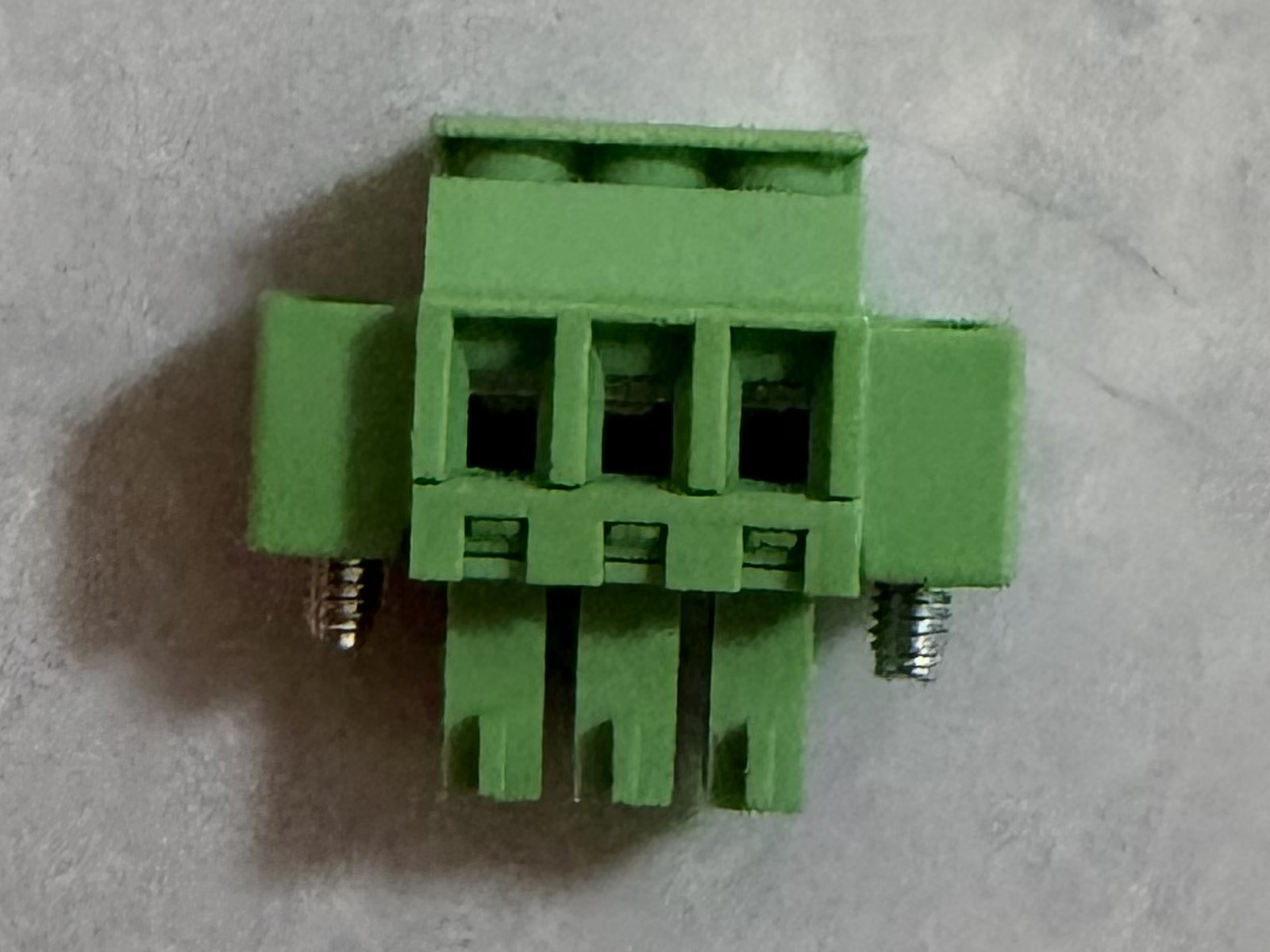

KF15EDGKA(B)M-3.81 product view 2 — 02

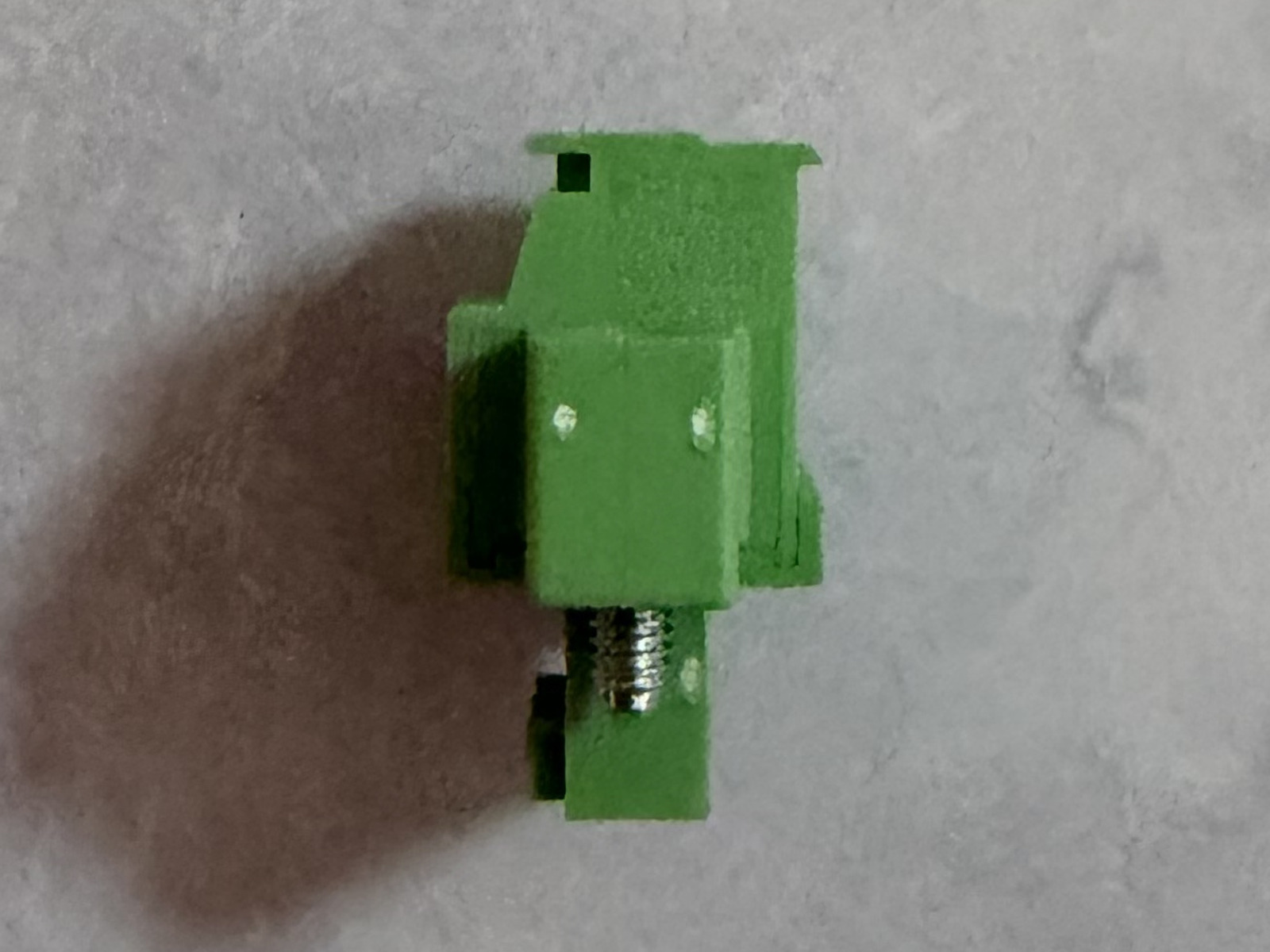

KF15EDGKA(B)M-3.81 product view 3 — 03

TECHNICAL DRAWING

Check dimensions before sample approval.

Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.

PDFOpen Technical drawingYIHENTRA selection reference

TECHNICAL DATA

Selection reference for KF15EDGKA(B)M-3.81.

Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.

Rated voltage: 300V
Rated current: 10A
Contact resistance: ≤20mΩ
Insulation resistance: ≥5000MΩ/1000V
Withstand voltage: AC1500V/1Min
Operating temperature: -40℃ ~ +105℃
Pitch: 3.81mm
Positions: 2P-24P
Mounting: Vertical PCB mount
Wire range: 28-16AWG (1.5mm²)
Strip length: 5-6mm
Recommended torque: 0.2Nm
Screw: M2 steel, zinc plated
Insulator: PA66, UL94V-0
Contact: Phosphor bronze, tin plated
Standard color: Green
