01 / 04PCB SCREW TERMINAL BLOCKS
KFA(B)-1016
A/B type high-current PCB screw terminal block
A/B housing options with a wide-pitch, high-current design
PITCH10.16mm
POSITIONS2P-12P
RATED VOLTAGE600V
RATED CURRENT41A

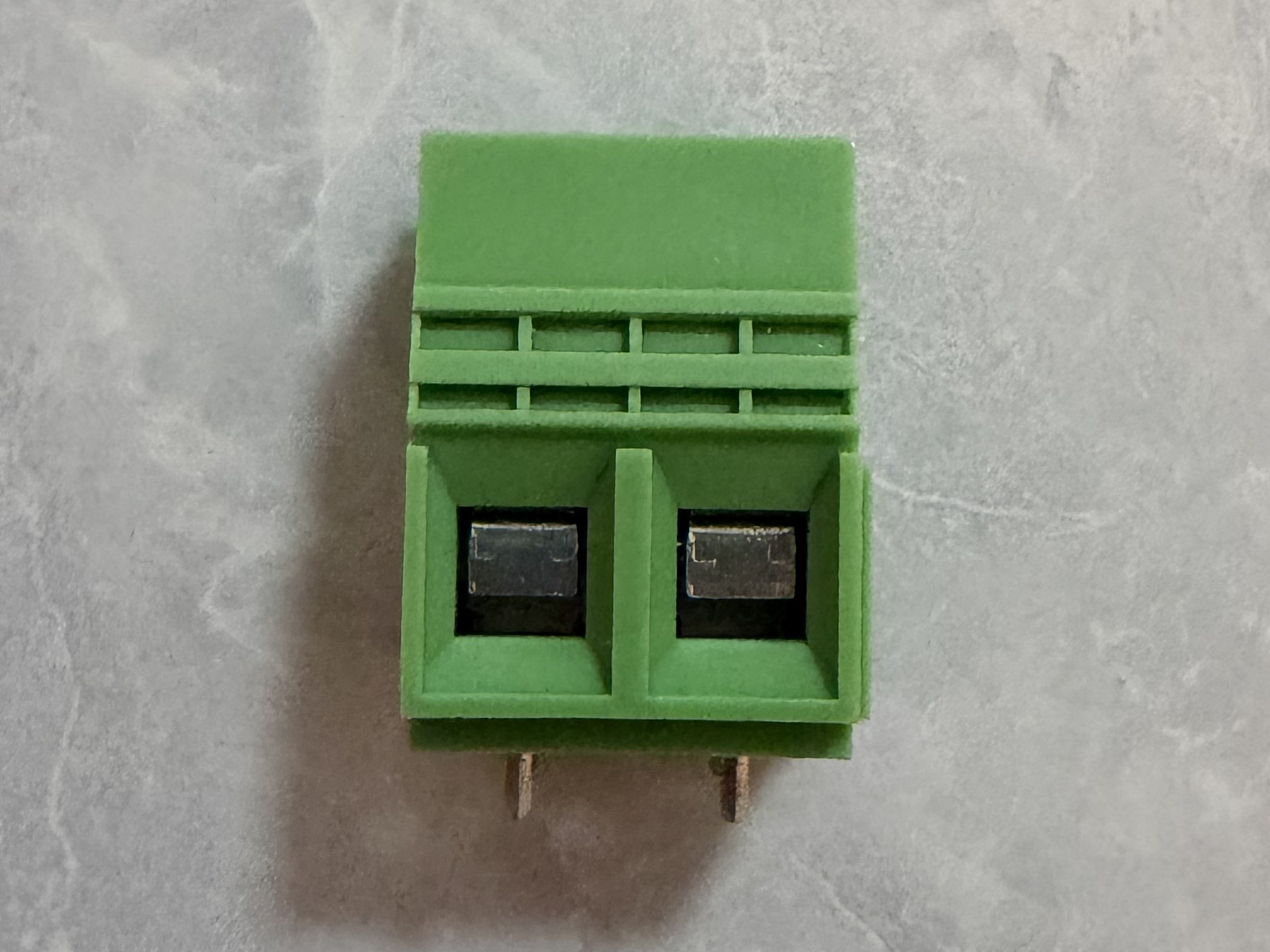

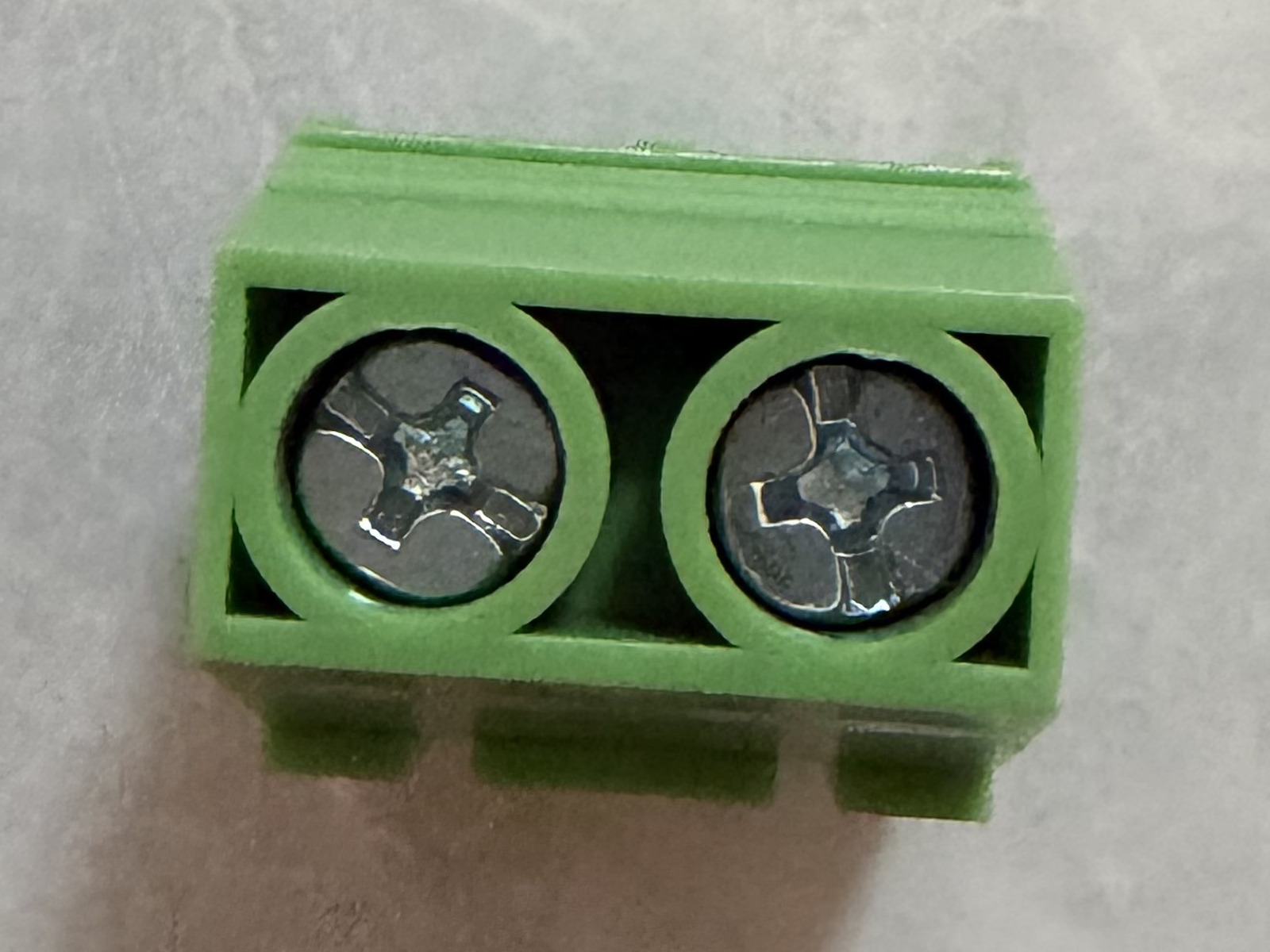

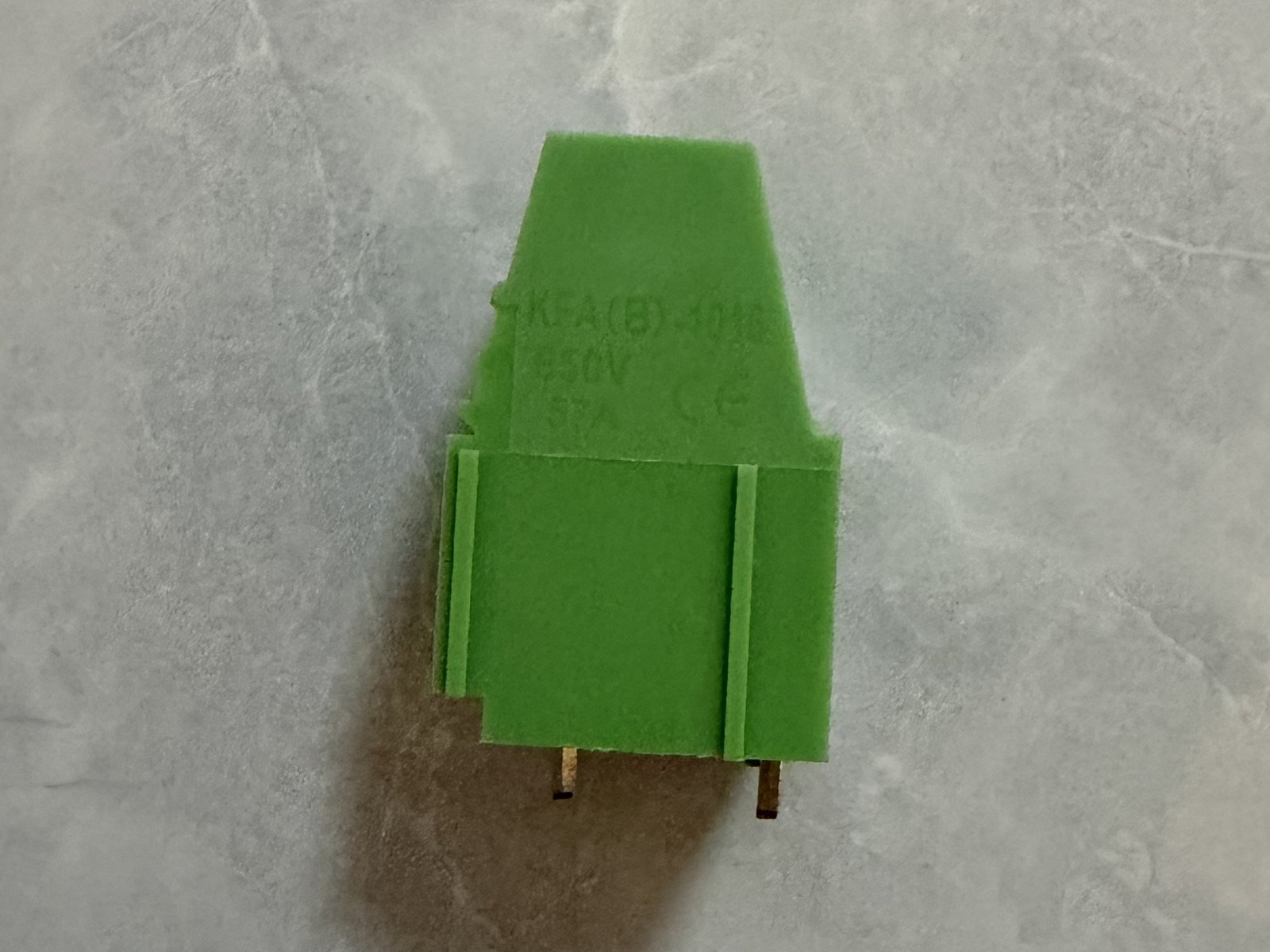

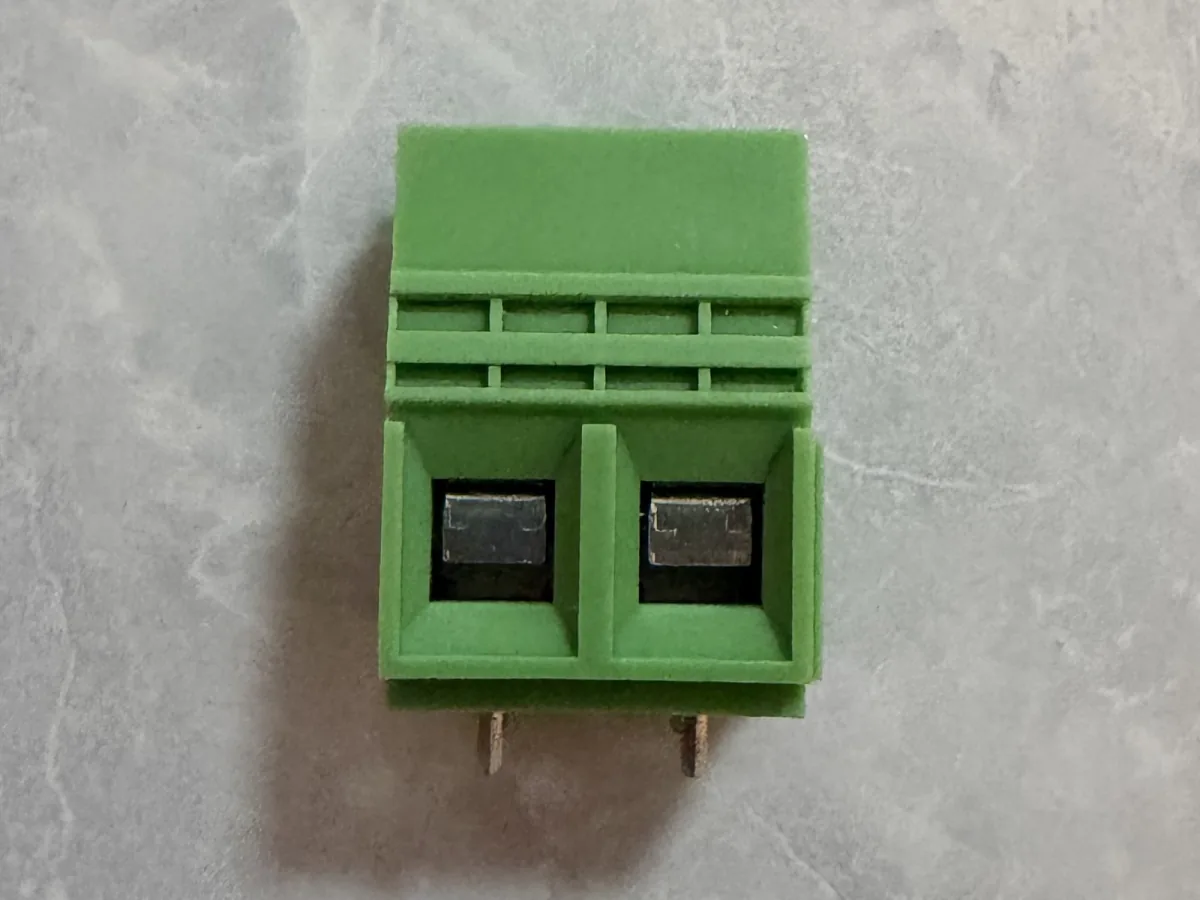

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KFA(B)-1016.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 600V
- Rated current
- 41A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 10.16mm
- Positions
- 2P-12P
- Mounting
- Vertical PCB mount
- Wire range
- 18-8AWG (10.0mm²)
- Strip length
- 10mm
- Recommended torque
- 1.2Nm
- Screw
- M4 steel, zinc plated
- Insulator
- PA66, UL94V-0
- Contact
- Copper alloy, tin plated
- Standard color
- Green / blue
