01 / 03PCB SCREW TERMINAL BLOCKS
KF135-1016
High-current PCB screw terminal block
Wide-pitch, high-current design
PITCH10.16mm
POSITIONS2P-12P
RATED VOLTAGE600V
RATED CURRENT41A

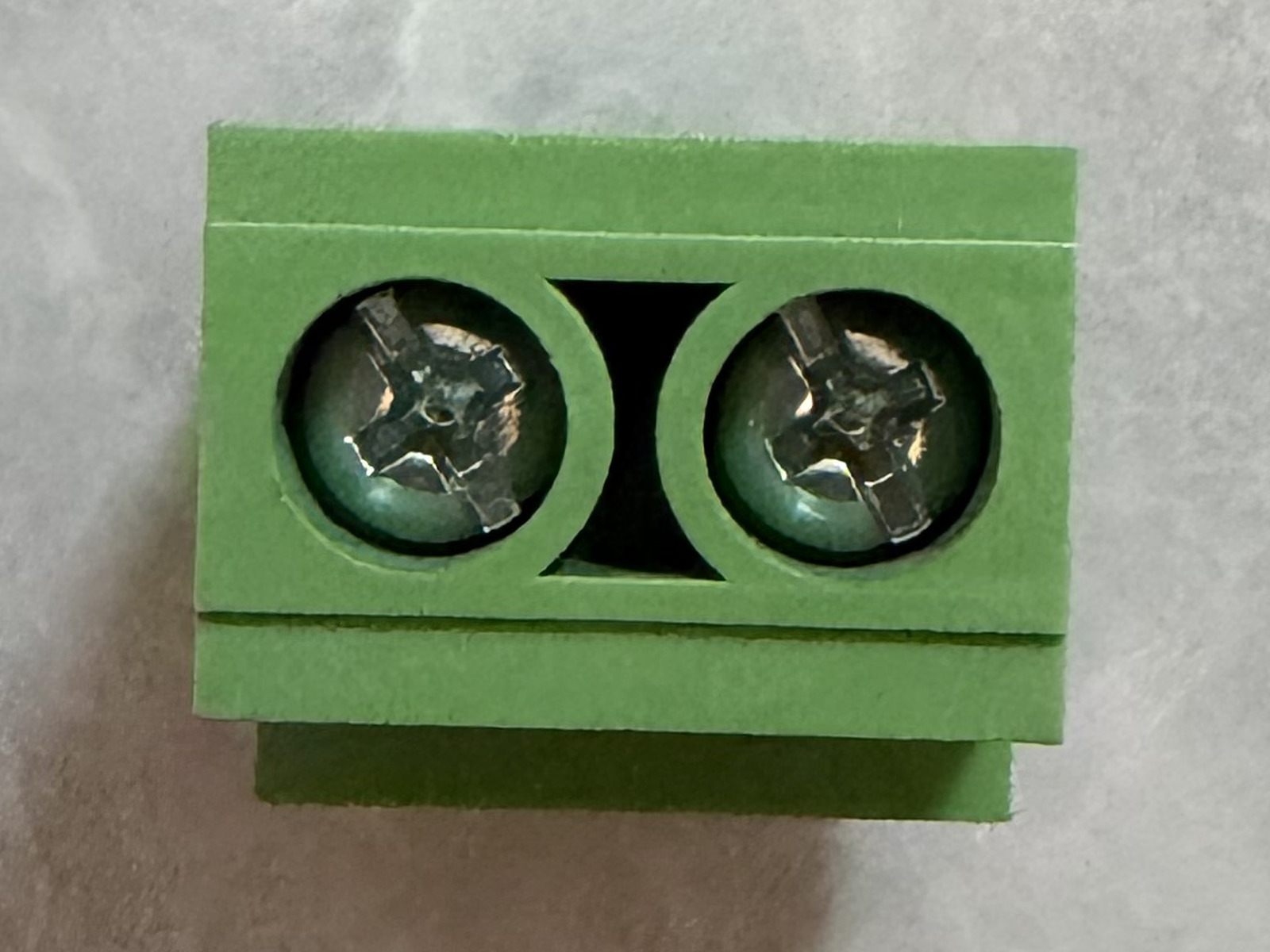

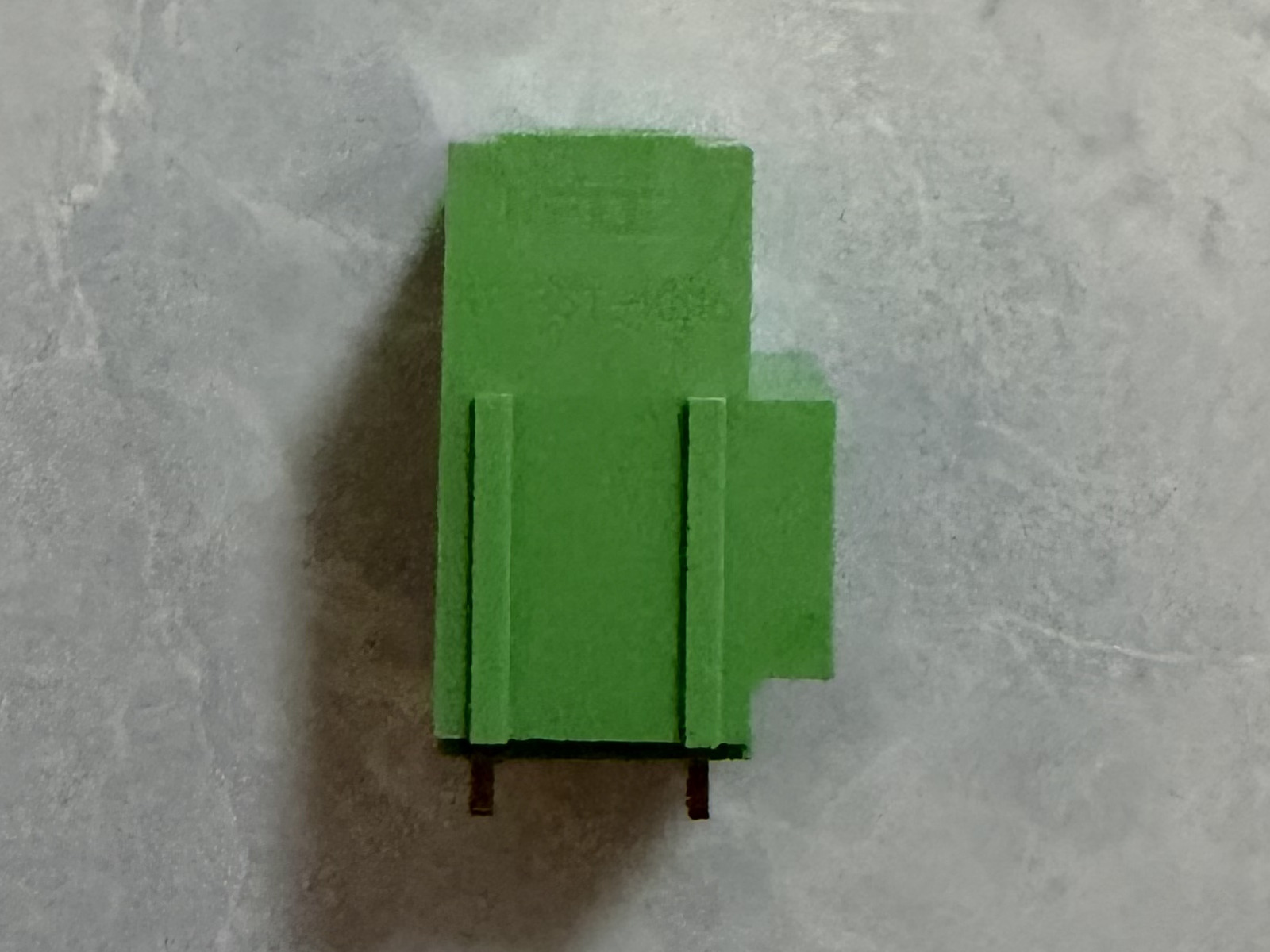

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF135-1016.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 600V
- Rated current
- 41A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 10.16mm
- Positions
- 2P-12P
- Mounting
- Vertical PCB mount
- Wire range
- 18-8AWG (10.0mm²)
- Strip length
- 10mm
- Recommended torque
- 1.2Nm
- Screw
- M4 steel, zinc plated
- Insulator
- PA66, UL94V-0
- Contact
- Copper alloy, tin plated
- Standard color
- Green / blue
