01 / 02BARRIER TERMINAL BLOCKS
HB9500 With Cover
Barrier terminal block with protective cover
Protective cover with a high-current design
PITCH9.5mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT30A

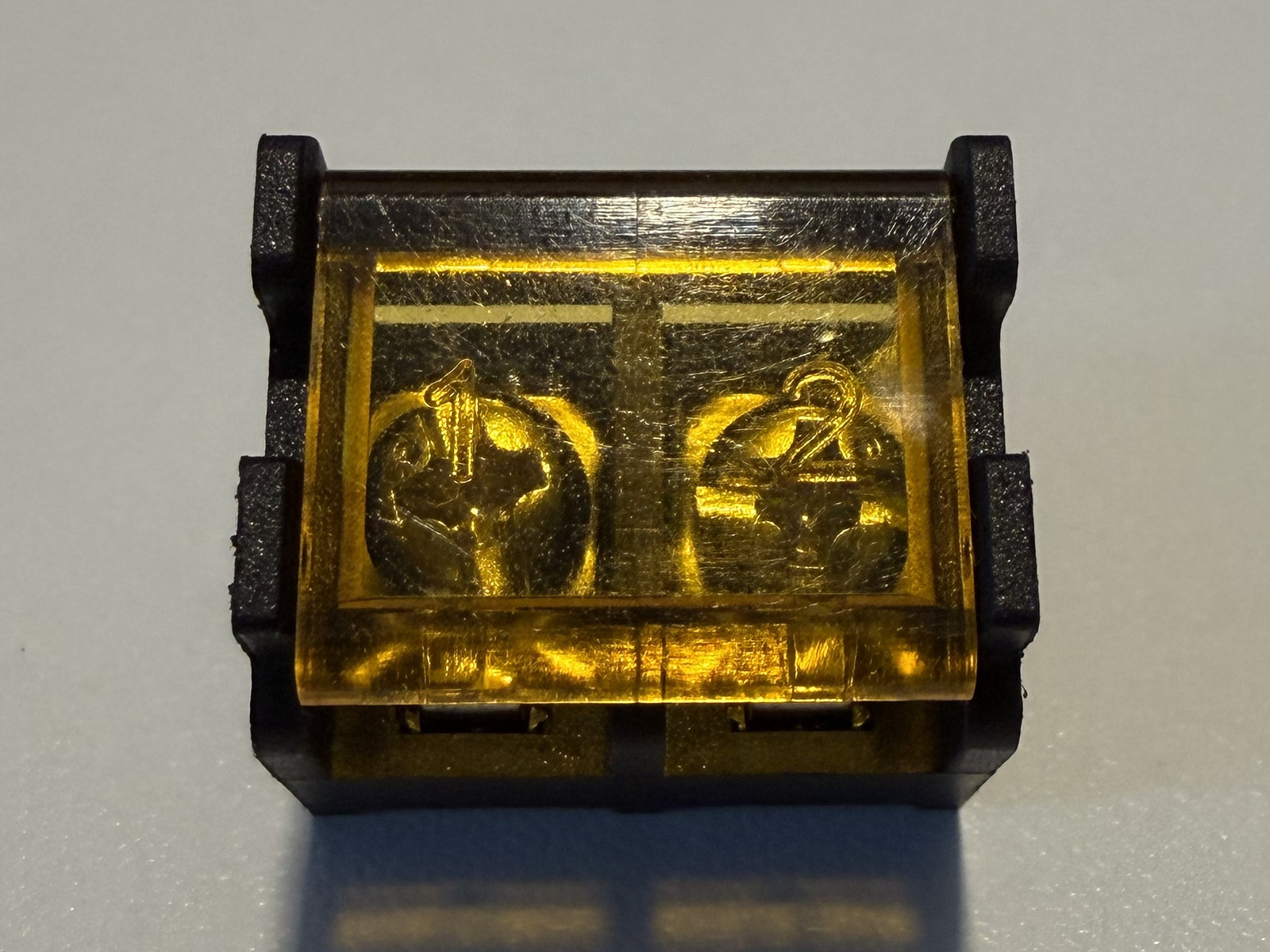

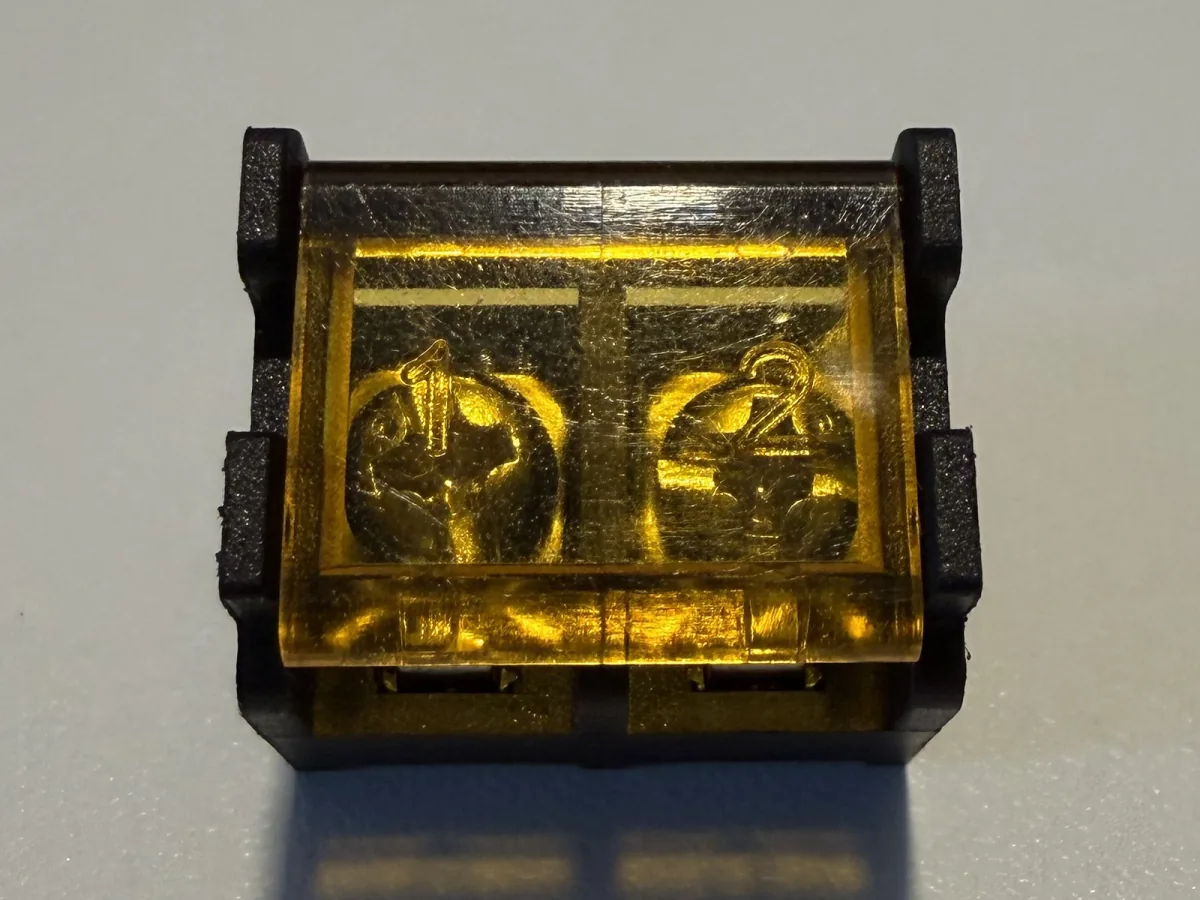

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for HB9500 With Cover.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 30A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 9.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 18-10AWG (4.0mm²)
- Recommended torque
- 0.8Nm
- Screw
- M4
- Insulator
- PA66, UL94V-0
- Contact
- Brass, tin plated
- Standard color
- Black / green
