HB825
Barrier terminal block
Barrier construction with side-pin or center-pin options
PITCH8.25mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT20A

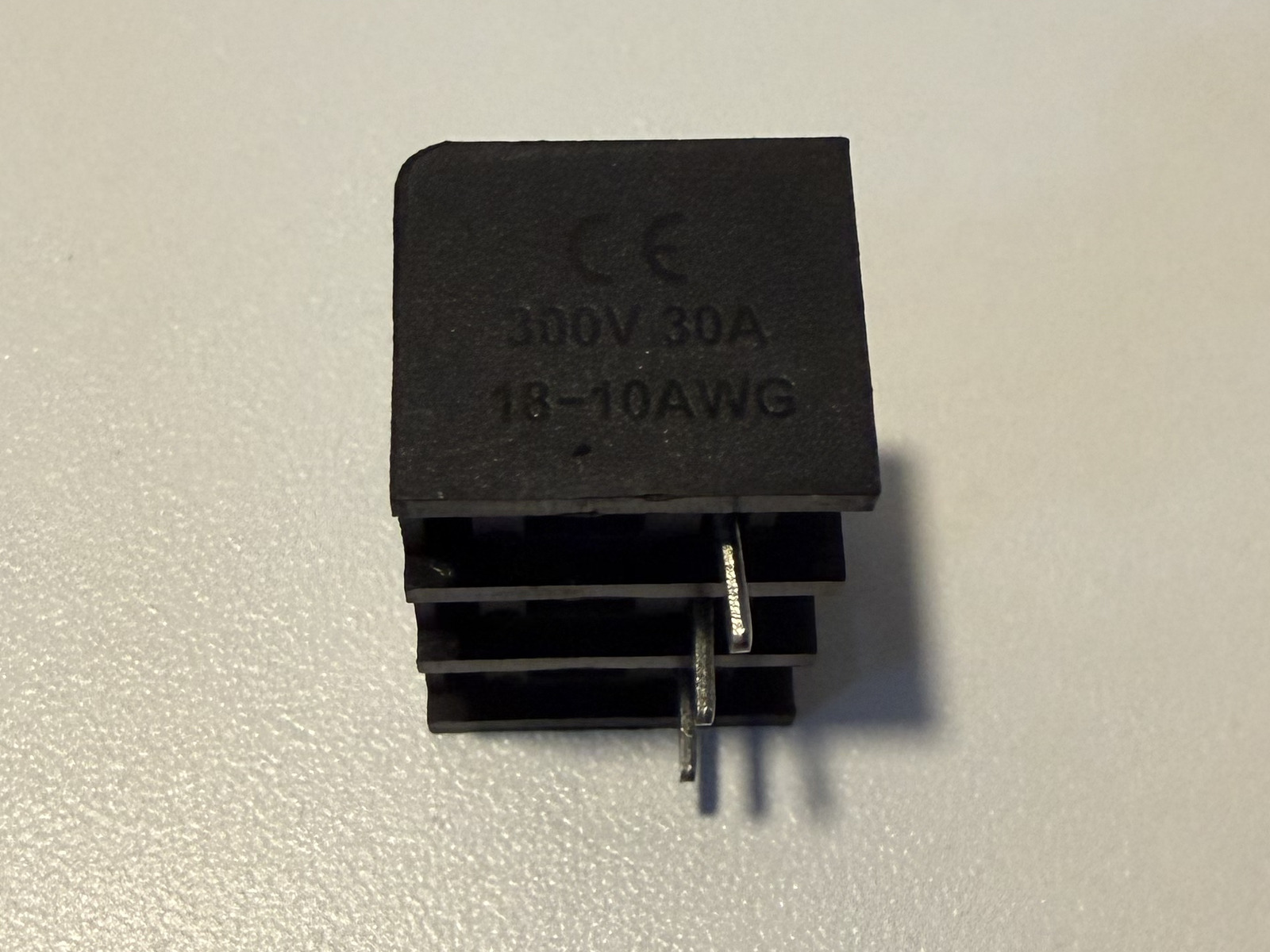

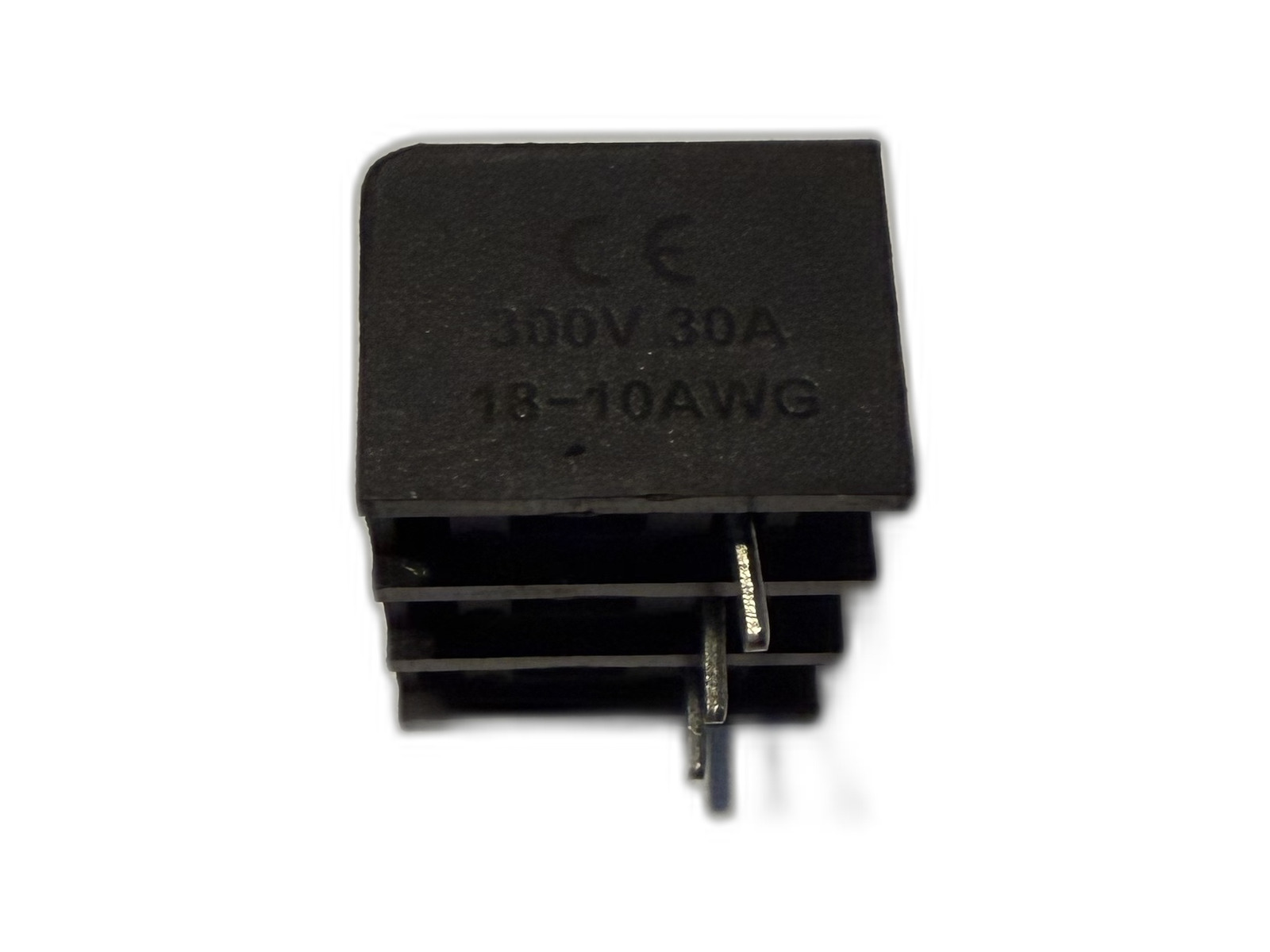

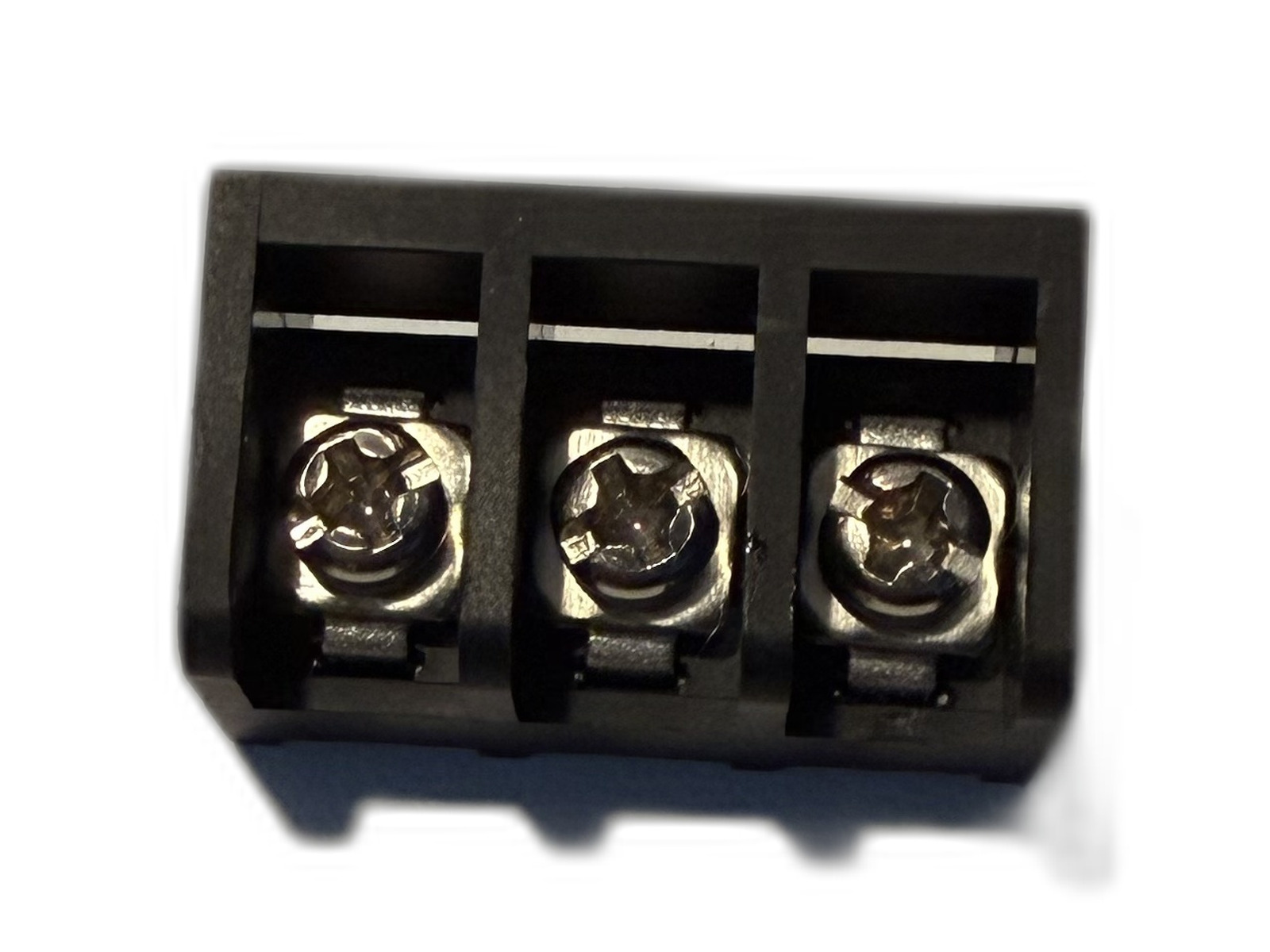

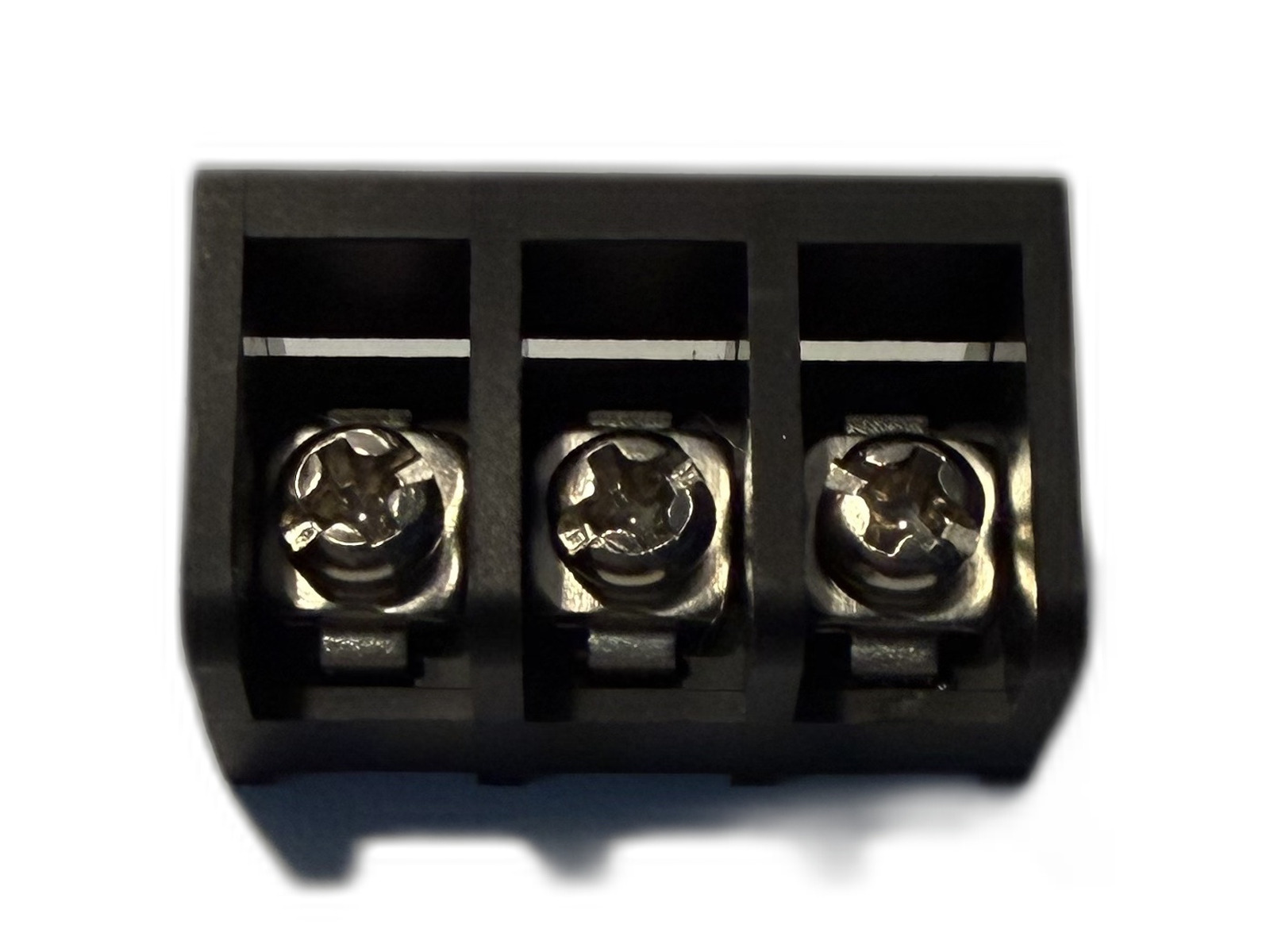

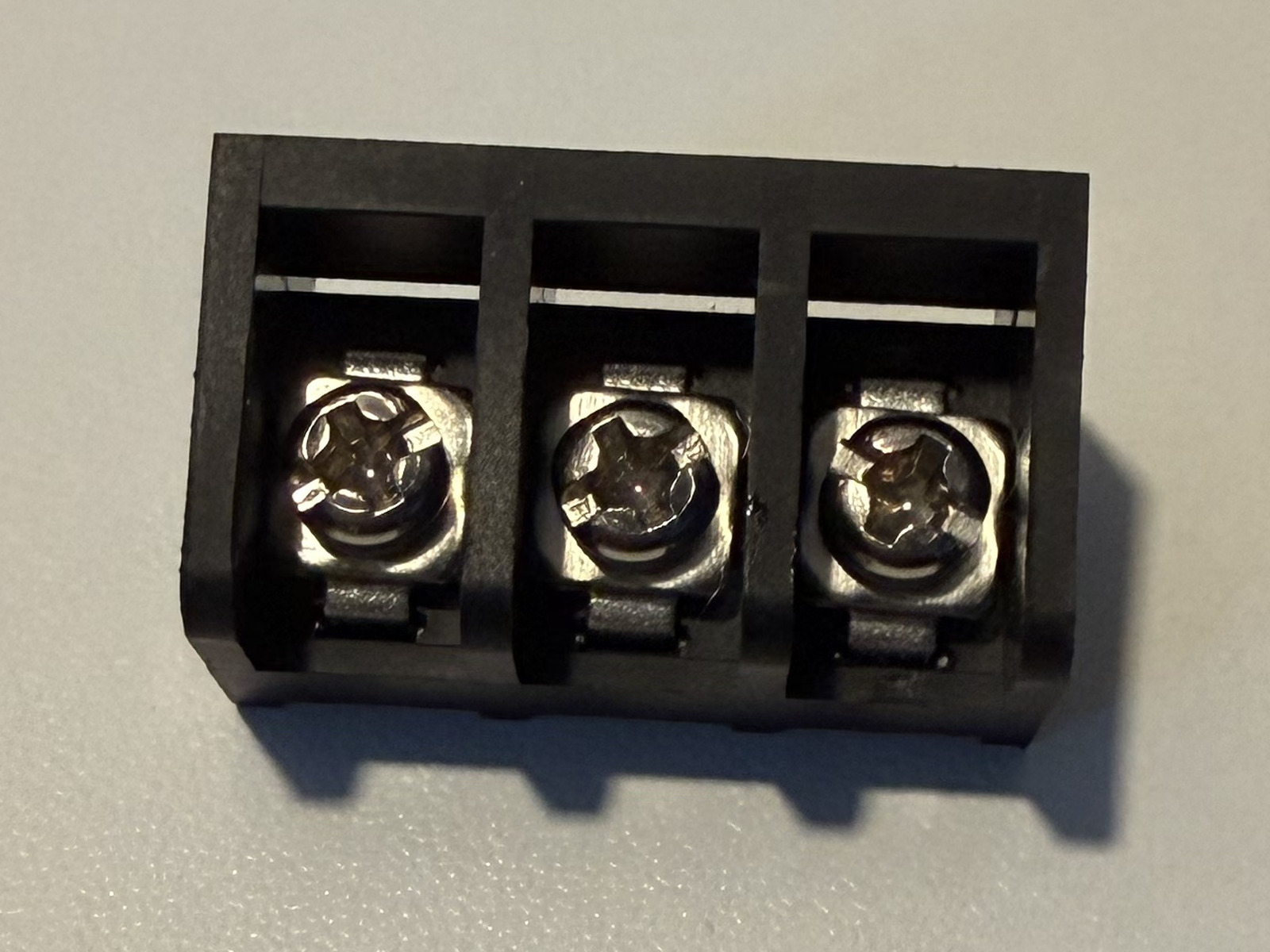

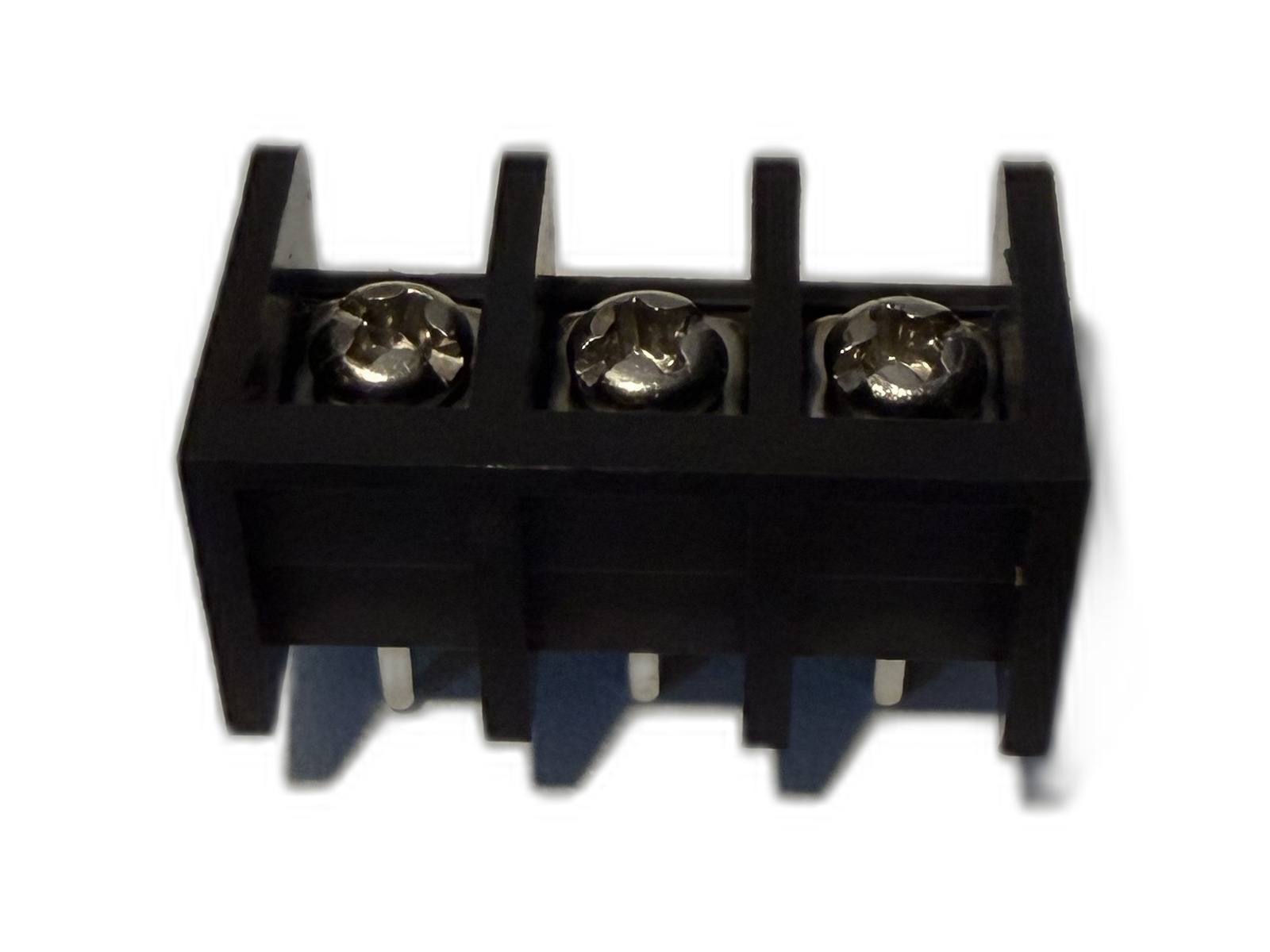

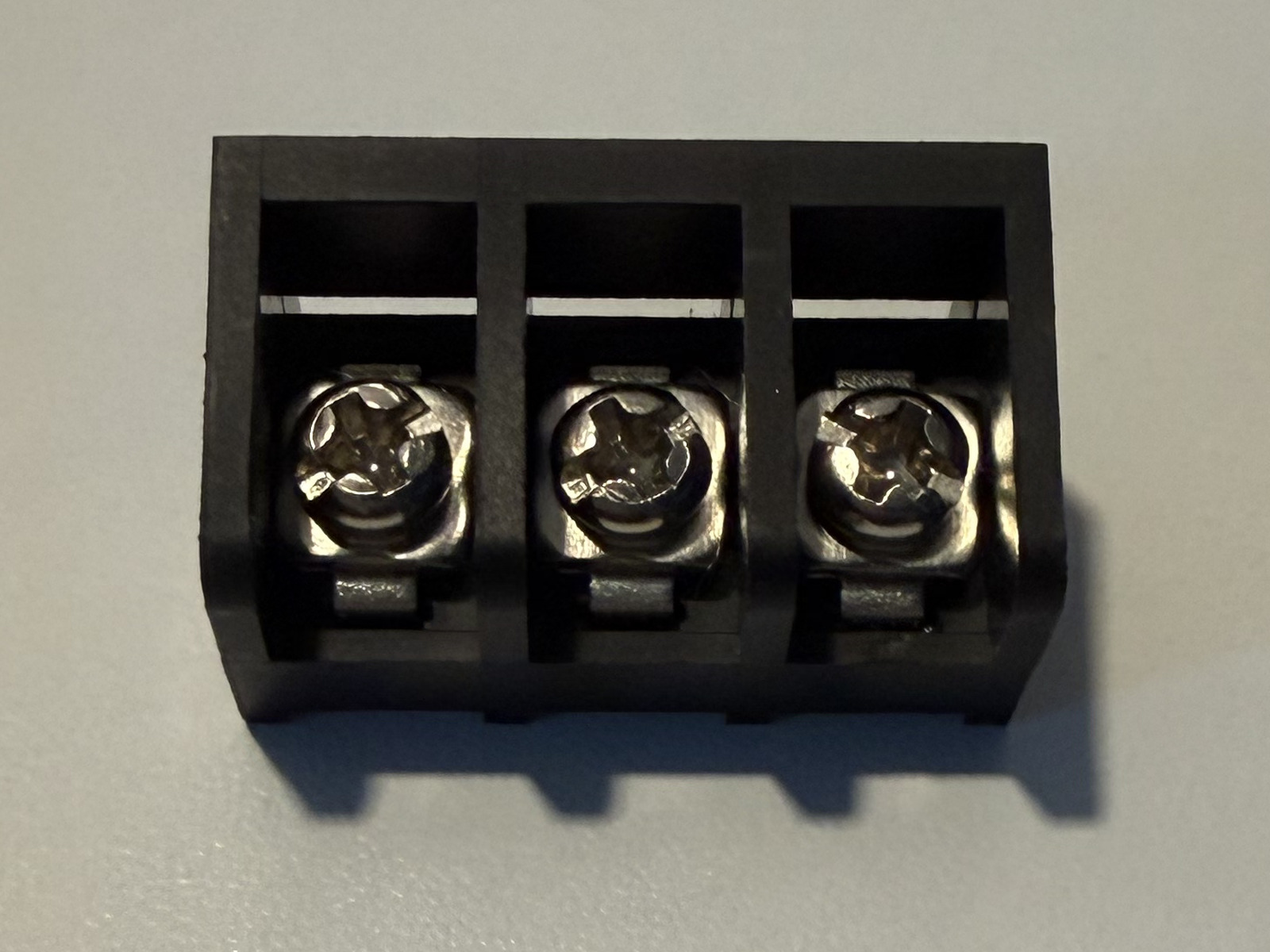

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for HB825.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 20A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 8.25mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 22-12AWG (2.5mm²)
- Recommended torque
- 0.5Nm
- Screw
- M3
- Insulator
- PA66, UL94V-0
- Contact
- Brass, tin plated
- Standard color
- Black / green
