01 / 02BARRIER TERMINAL BLOCKS
KF35M
Barrier terminal block
Barrier construction with double-sided partitions
PITCH8.25mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT20A

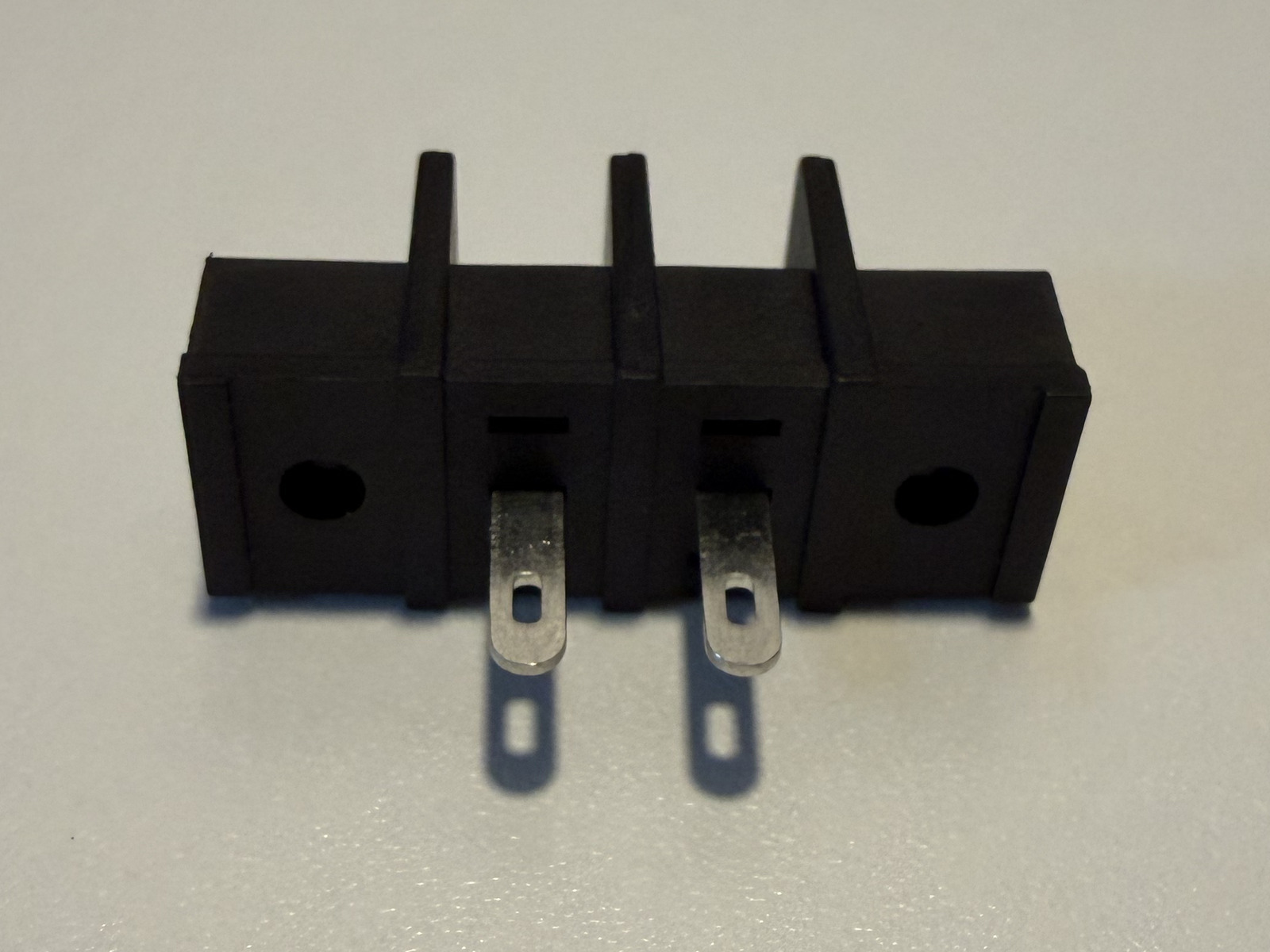

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF35M.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 20A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 8.25mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 22-12AWG (2.5mm²)
- Recommended torque
- 0.5Nm
- Screw
- M3
- Insulator
- PA66, UL94V-0
- Contact
- Copper alloy, tin plated
- Standard color
- Black
