01 / 02BARRIER TERMINAL BLOCKS
KF45
Barrier terminal block
Wide-pitch, high-current barrier construction
PITCH9.5mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT25A

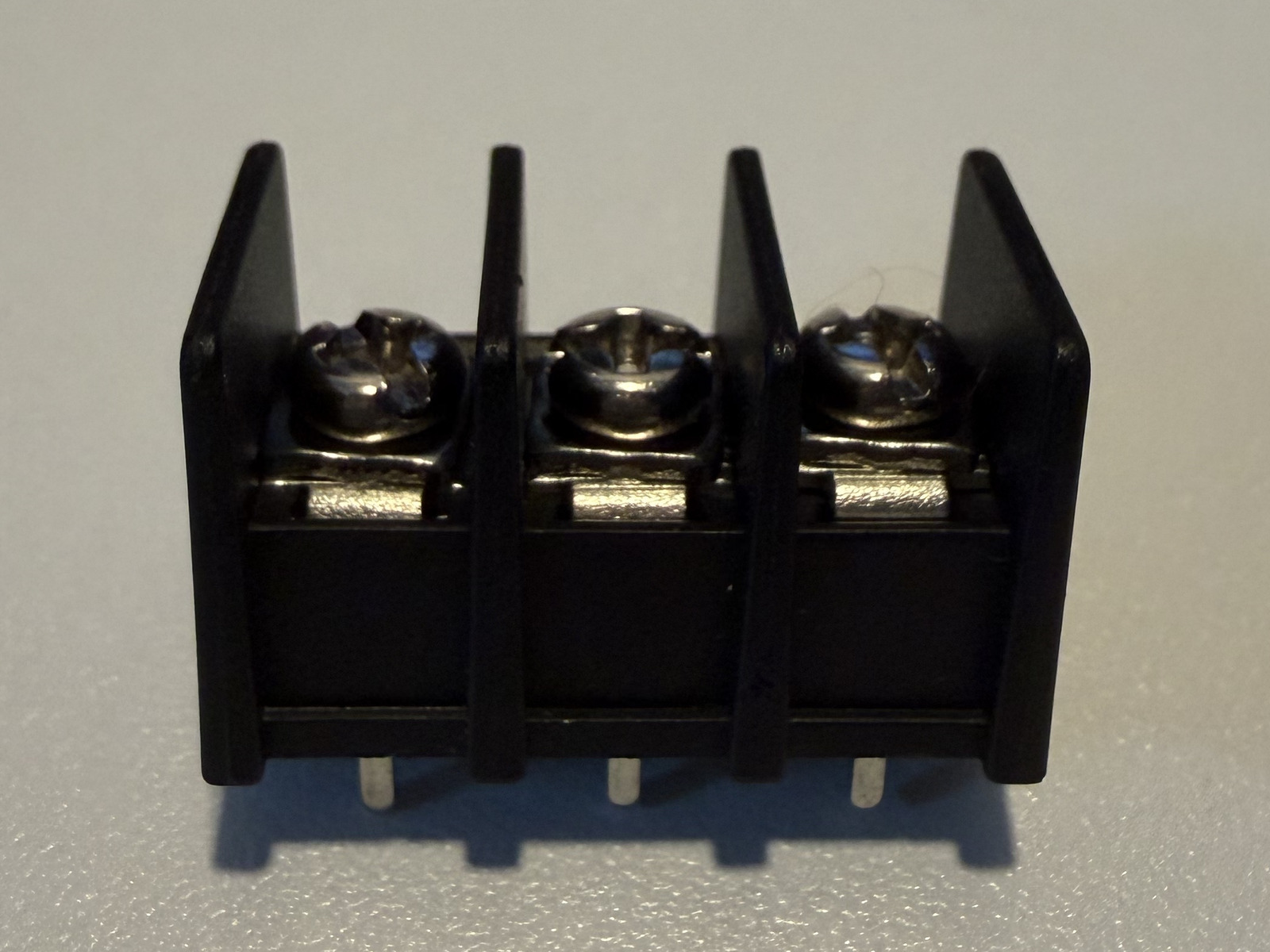

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF45.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 25A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 9.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 22-12AWG (4.0mm²)
- Recommended torque
- 0.8Nm
- Screw
- M4
- Insulator
- PA66, UL94V-0
- Contact
- Copper alloy, tin plated
- Standard color
- Black
