KF45R
Right-angle barrier terminal block
Right-angle pins for higher-voltage and higher-current applications
PITCH9.5mm
POSITIONS2P-24P
RATED VOLTAGE750V
RATED CURRENT32A

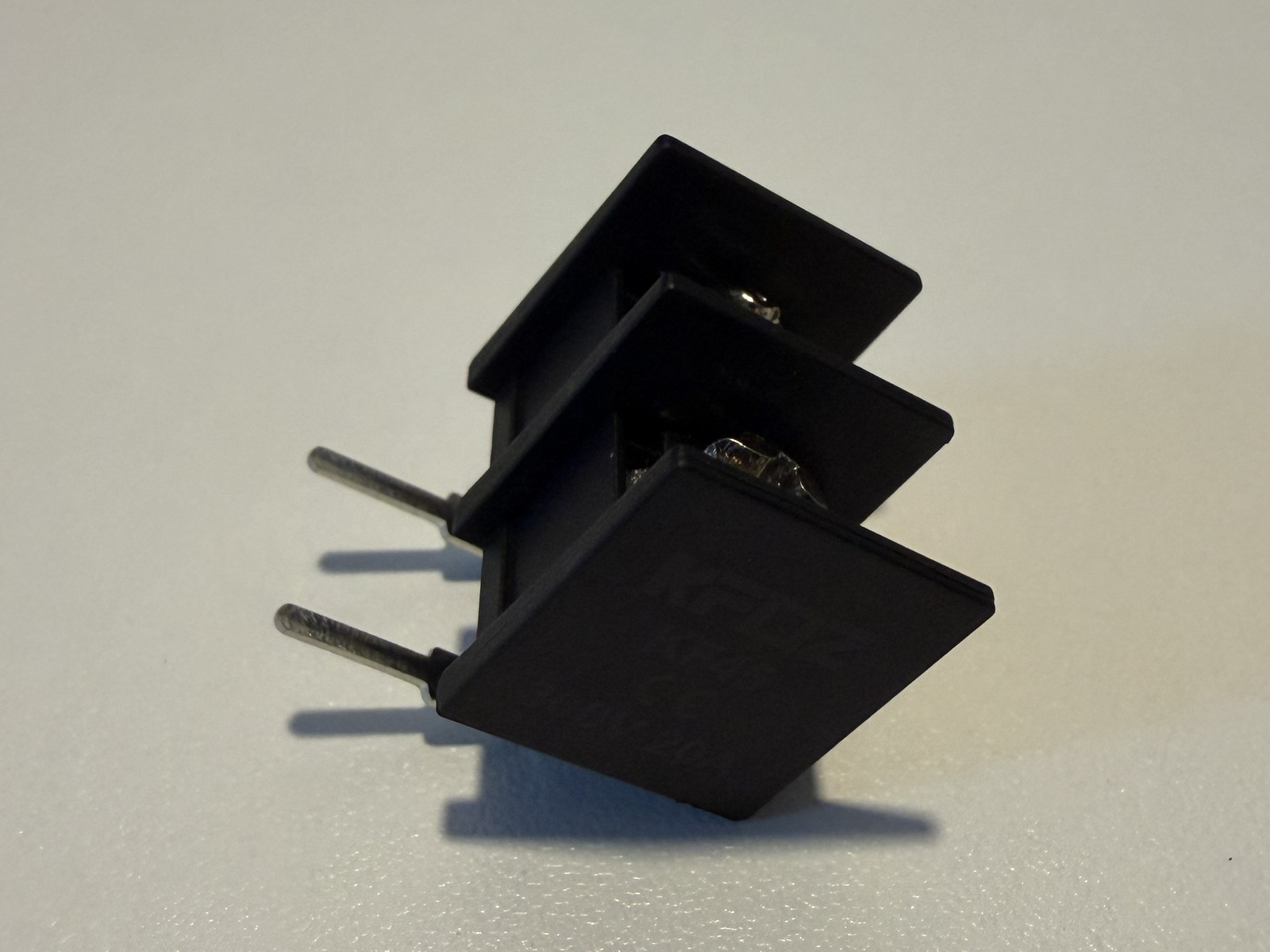

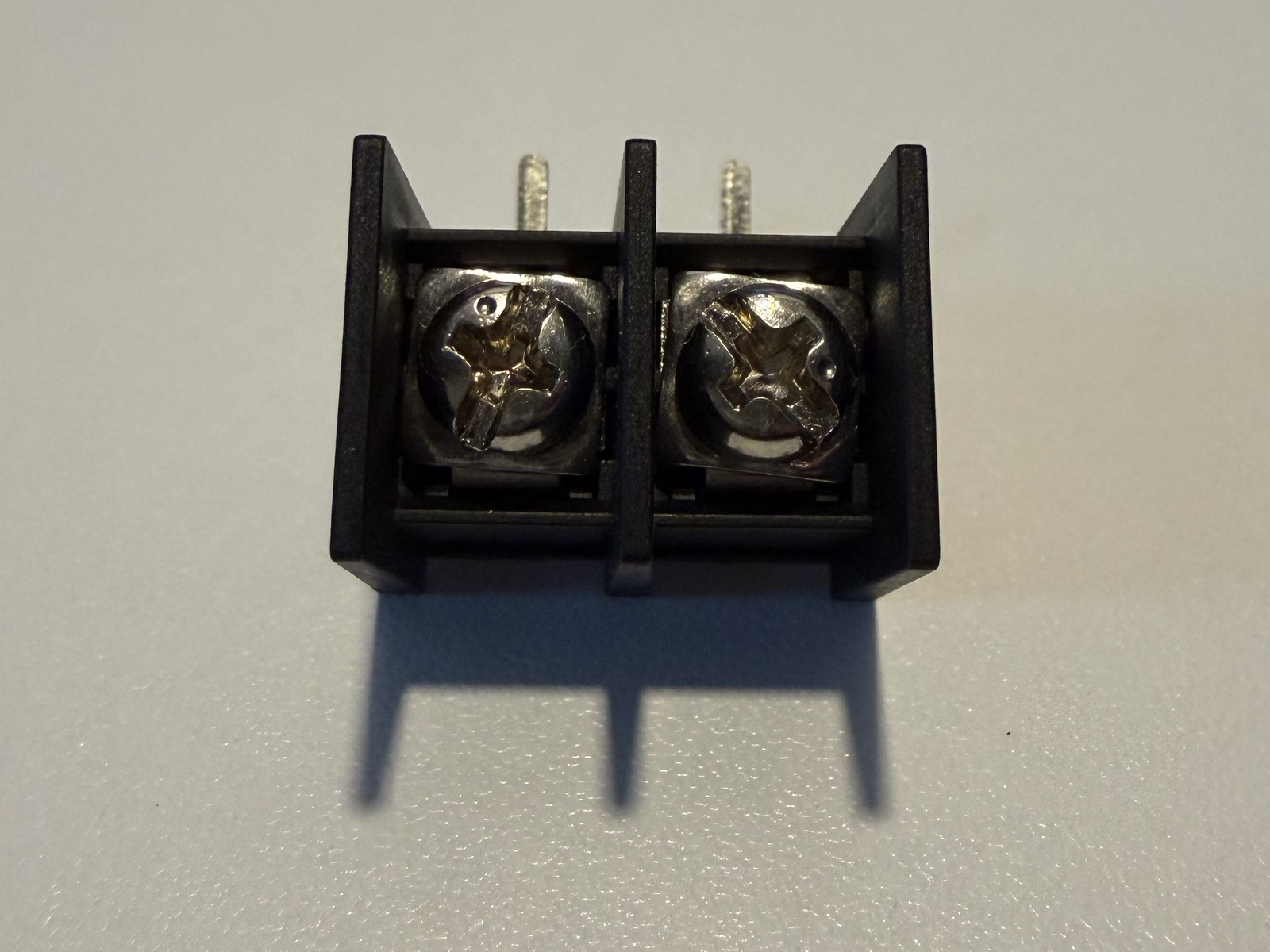

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KF45R.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 750V
- Rated current
- 32A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 9.5mm
- Positions
- 2P-24P
- Mounting
- Right-angle PCB mount
- Wire range
- 22-12AWG (4.0mm²)
- Recommended torque
- 0.8Nm
- Screw
- M4
- Insulator
- PA66, UL94V-0
- Contact
- Copper alloy, tin plated
- Standard color
- Black
