01 / 04PLUGGABLE TERMINAL BLOCKS
KF15EDGRK-3.81
Right-angle pluggable terminal block with latch
Right-angle pins with locking latch
PITCH3.81mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT10A

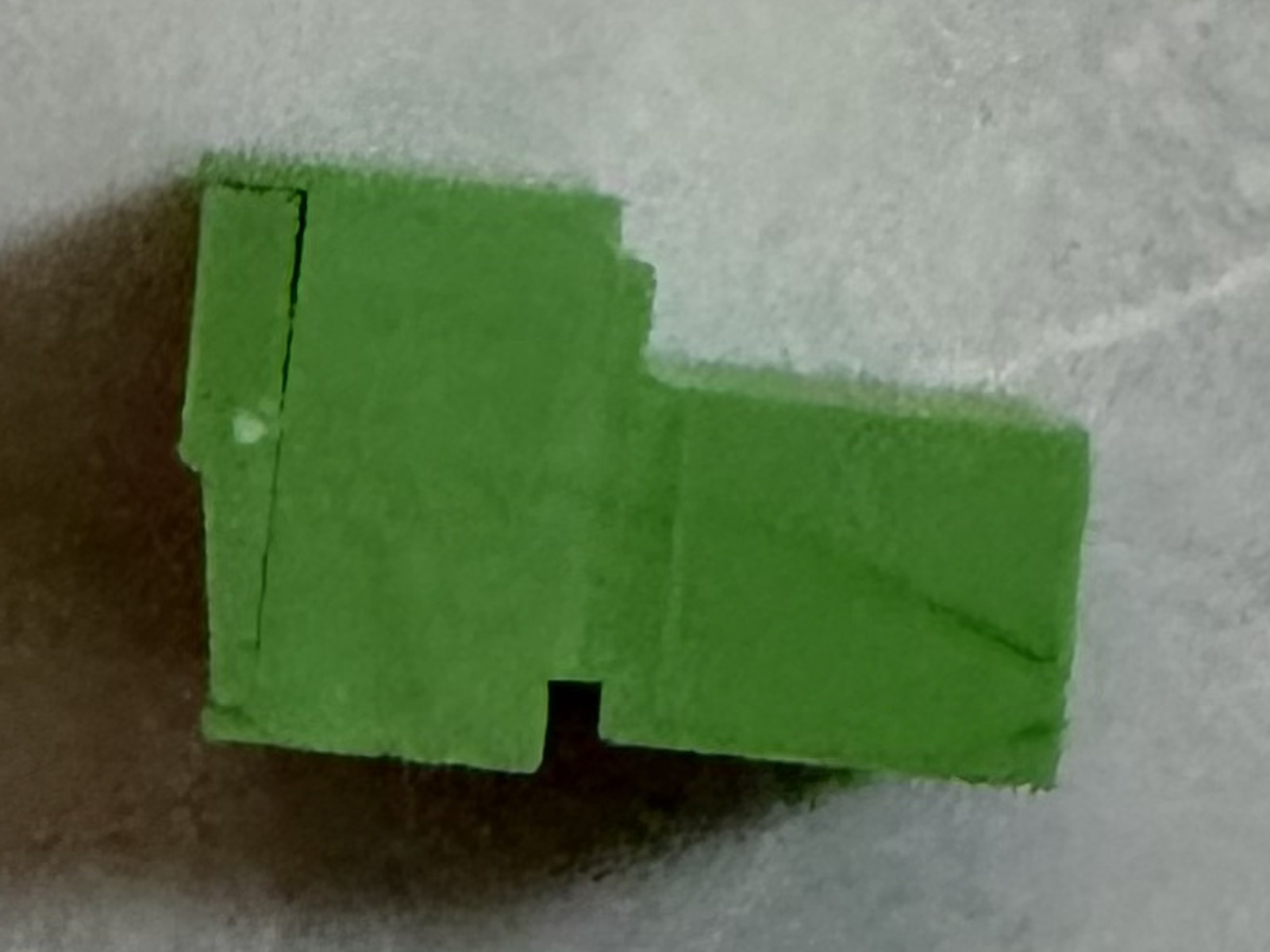

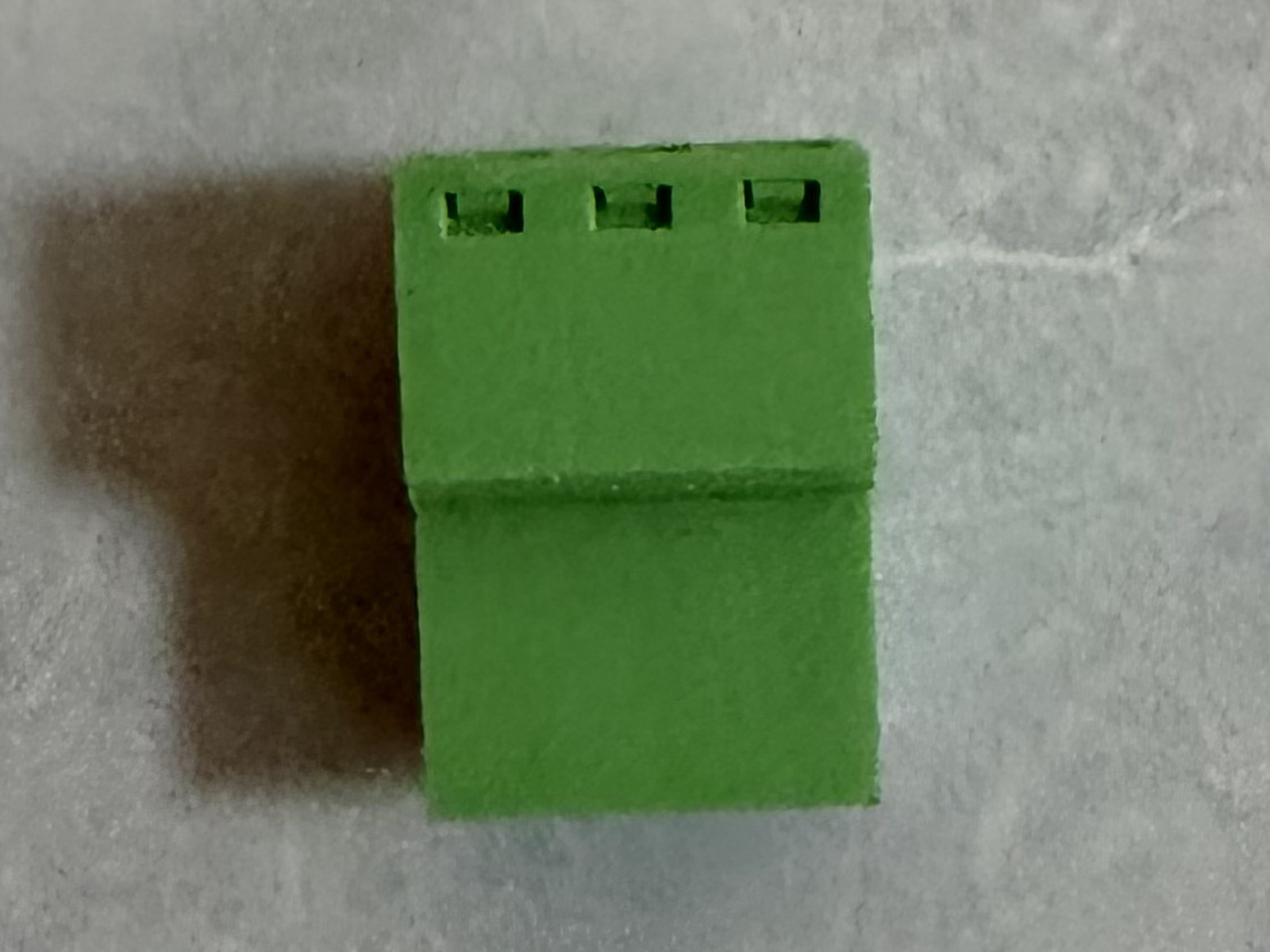

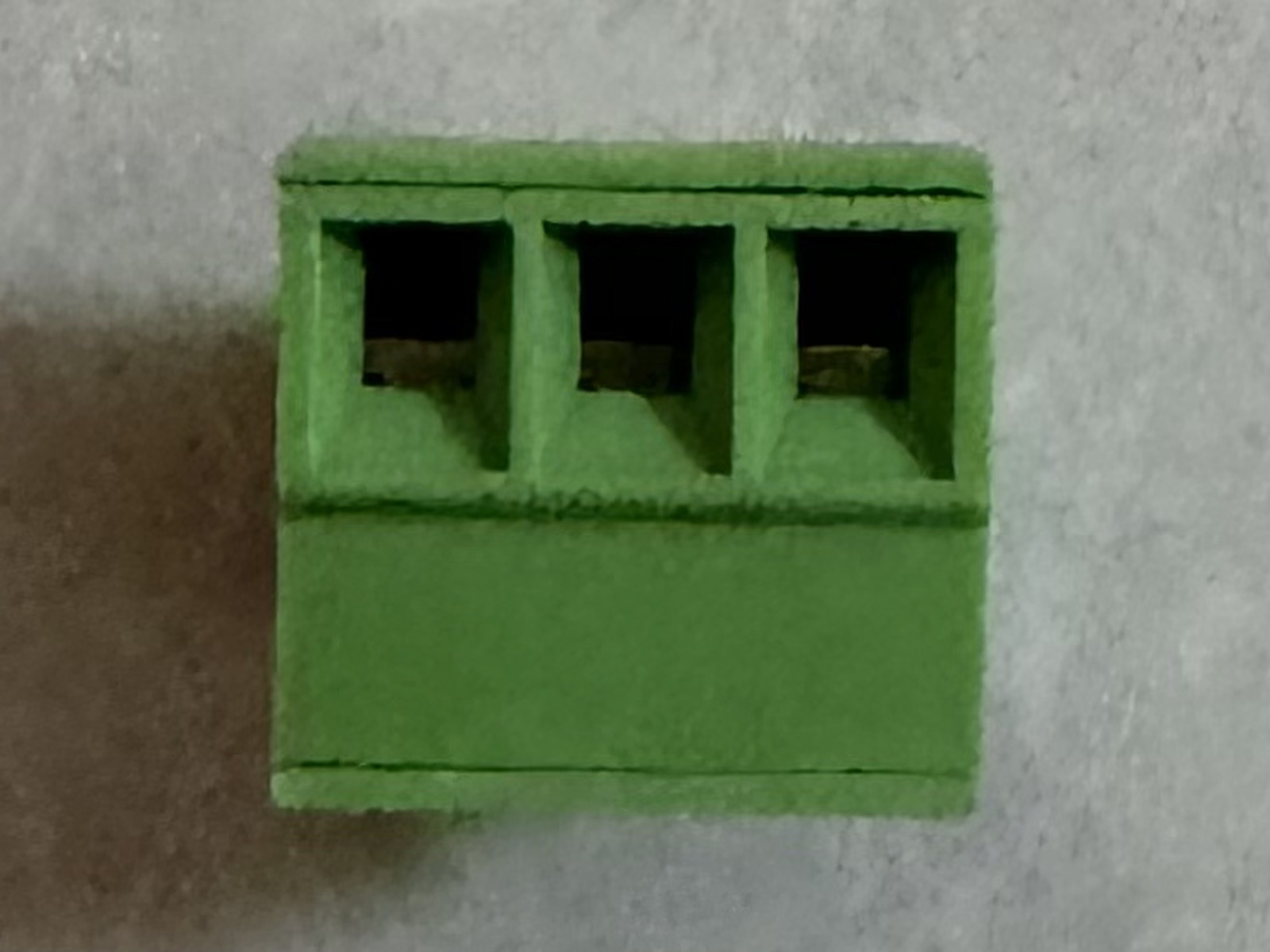

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KF15EDGRK-3.81.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 10A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 3.81mm
- Positions
- 2P-24P
- Mounting
- Right-angle PCB mount
- Wire range
- 28-16AWG (1.5mm²)
- Strip length
- 5-6mm
- Recommended torque
- 0.2Nm
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, tin plated
- Standard color
- Green
