KF2EDGKA(B)M-5.08 Pluggable terminal block with A/B latch and flange

01 / 05

PLUGGABLE TERMINAL BLOCKS

KF2EDGKA(B)M-5.08

Pluggable terminal block with A/B latch and flange

A/B latch options with mounting flange

PITCH5.08mm

POSITIONS2P-24P

RATED VOLTAGE300V (UL) / 320V (IEC)

RATED CURRENT15A (UL) / 20A (IEC)

Request quote for KF2EDGKA(B)M-5.08 →Compare family models Email specifications

PRODUCT VIEWS

Inspect the connection from multiple angles.

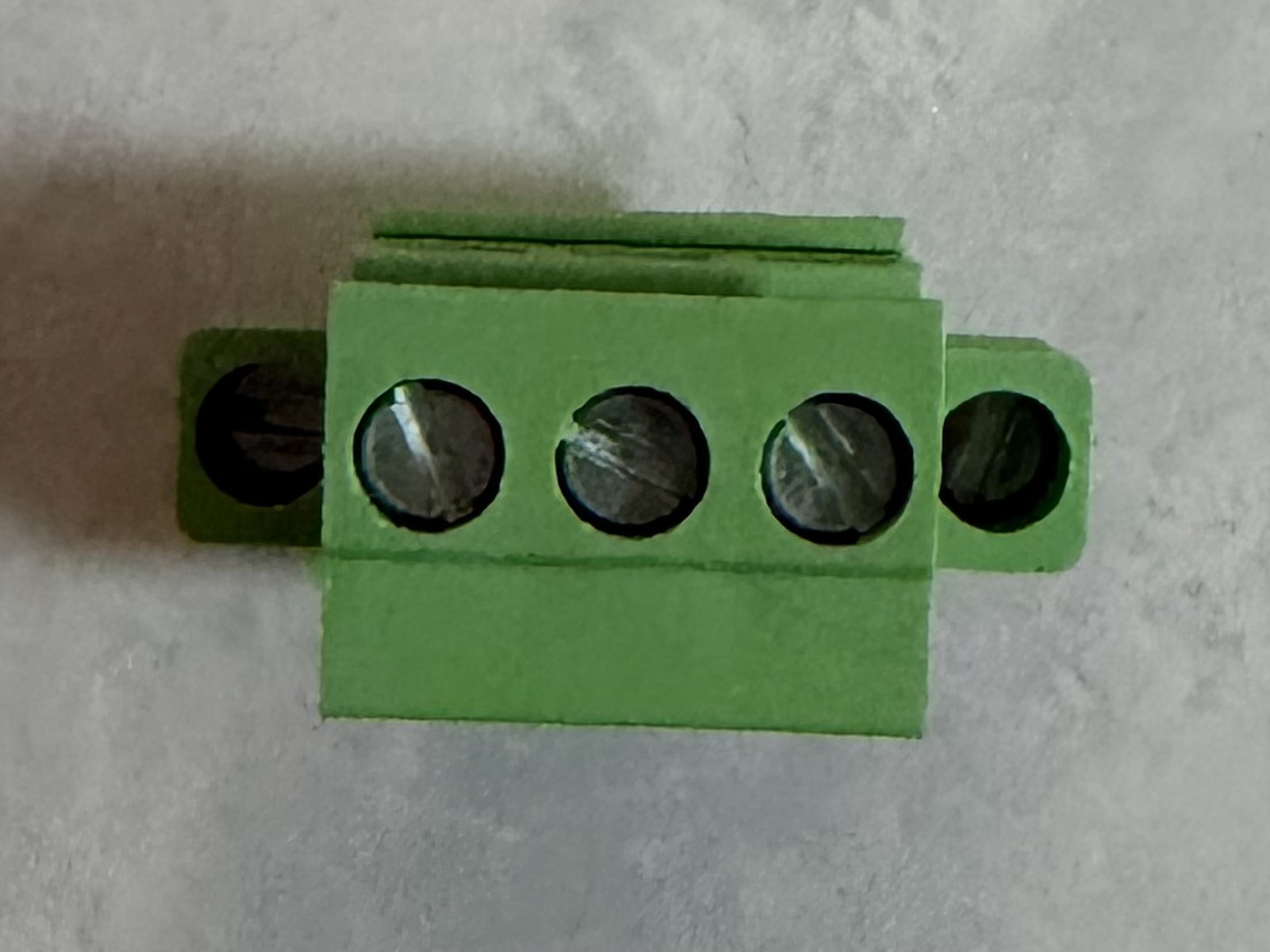

KF2EDGKA(B)M-5.08 product view 2 — 02

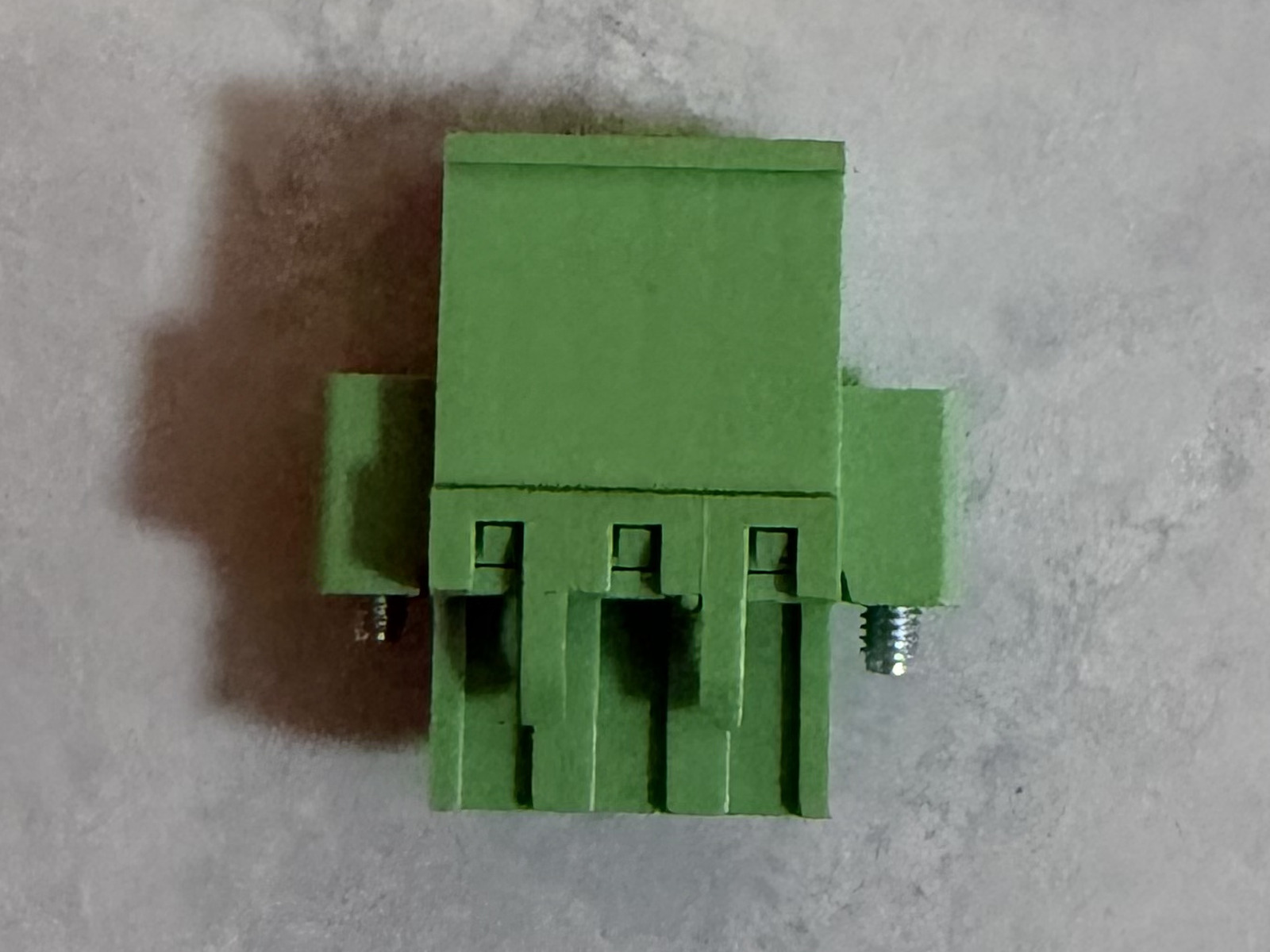

KF2EDGKA(B)M-5.08 product view 3 — 03

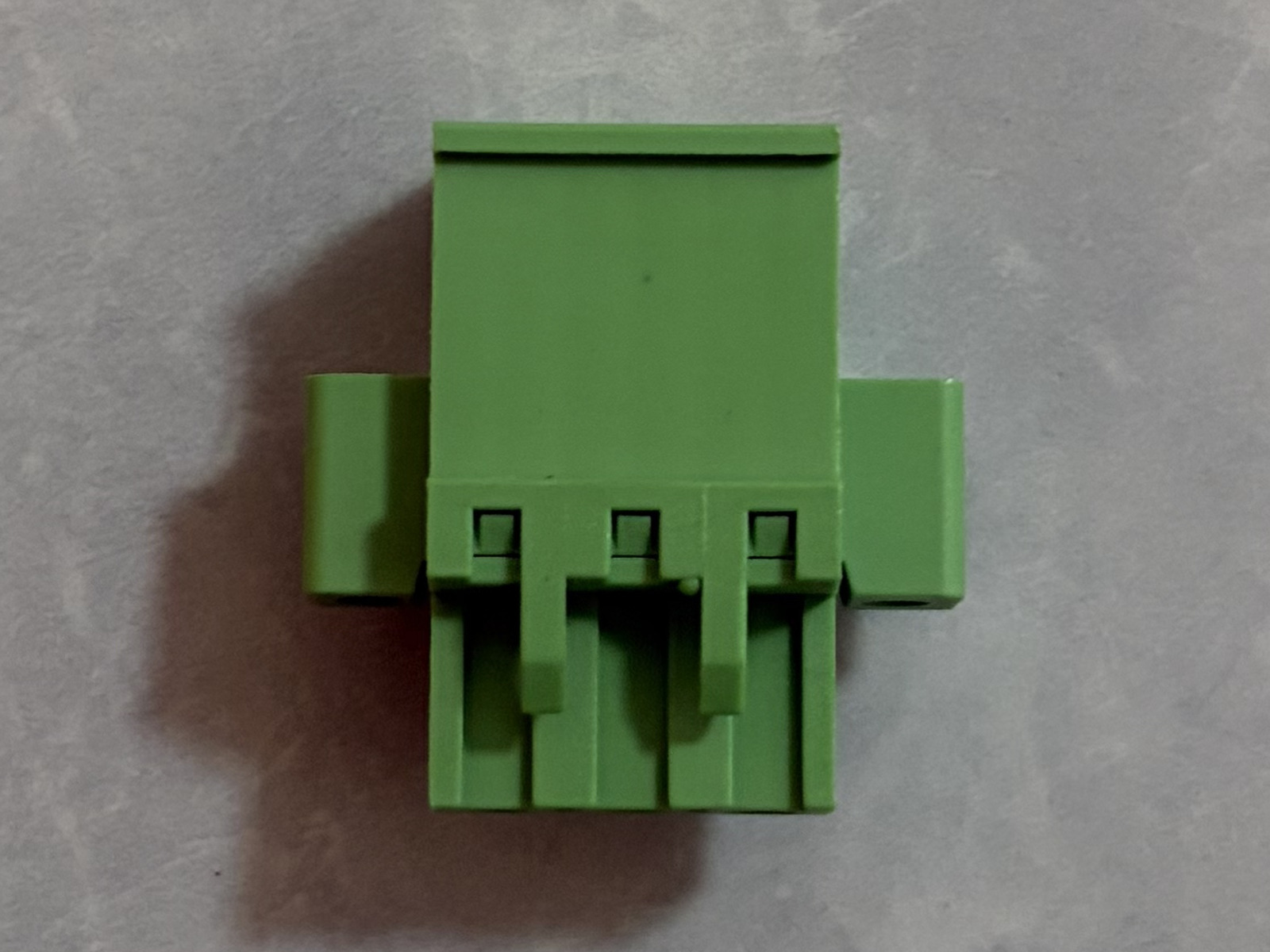

KF2EDGKA(B)M-5.08 product view 4 — 04

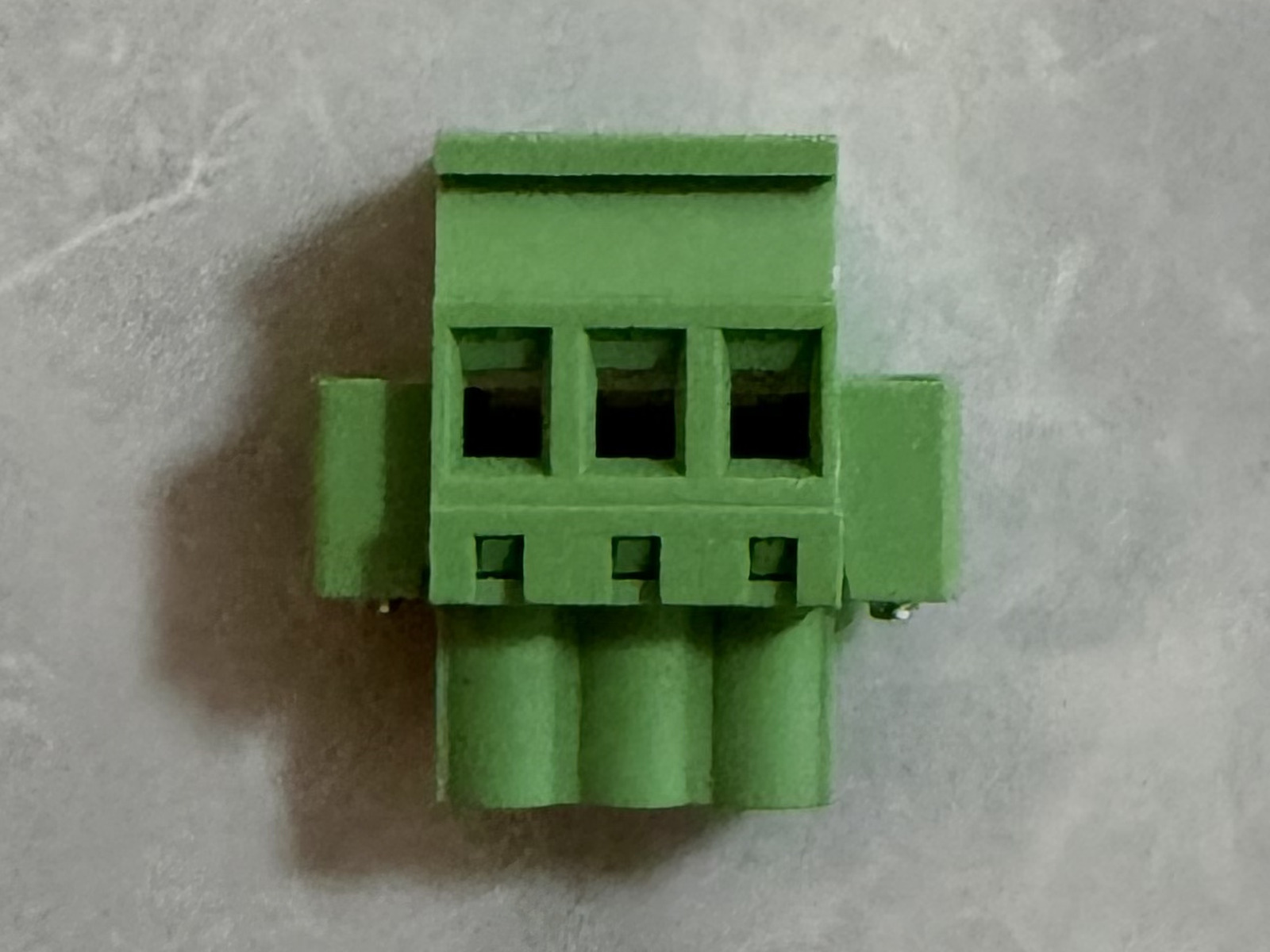

KF2EDGKA(B)M-5.08 product view 5 — 05

TECHNICAL DRAWING

Check dimensions before sample approval.

Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.

PDFOpen Technical drawingYIHENTRA selection reference

TECHNICAL DATA

Selection reference for KF2EDGKA(B)M-5.08.

Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.

Rated voltage: 300V (UL) / 320V (IEC)
Rated current: 15A (UL) / 20A (IEC)
Contact resistance: ≤20mΩ
Insulation resistance: ≥5000MΩ/1000V
Withstand voltage: AC1500V/1Min
Operating temperature: -40℃ ~ +105℃
Pitch: 5.08mm
Positions: 2P-24P
Mounting: Vertical PCB mount
Wire range: 28-12AWG (2.5mm²)
Strip length: 6-7mm
Recommended torque: 0.5Nm
Screw: M2.6
Insulator: PA66, UL94V-0
Contact: Phosphor bronze, nickel plated
Standard color: Green
