01 / 03PLUGGABLE TERMINAL BLOCKS
KF2EDGKM-5.08
Pluggable terminal block with latch and flange
Locking latch with mounting flange
PITCH5.08mm
POSITIONS2P-24P
RATED VOLTAGE300V (UL) / 320V (IEC)
RATED CURRENT15A (UL) / 20A (IEC)

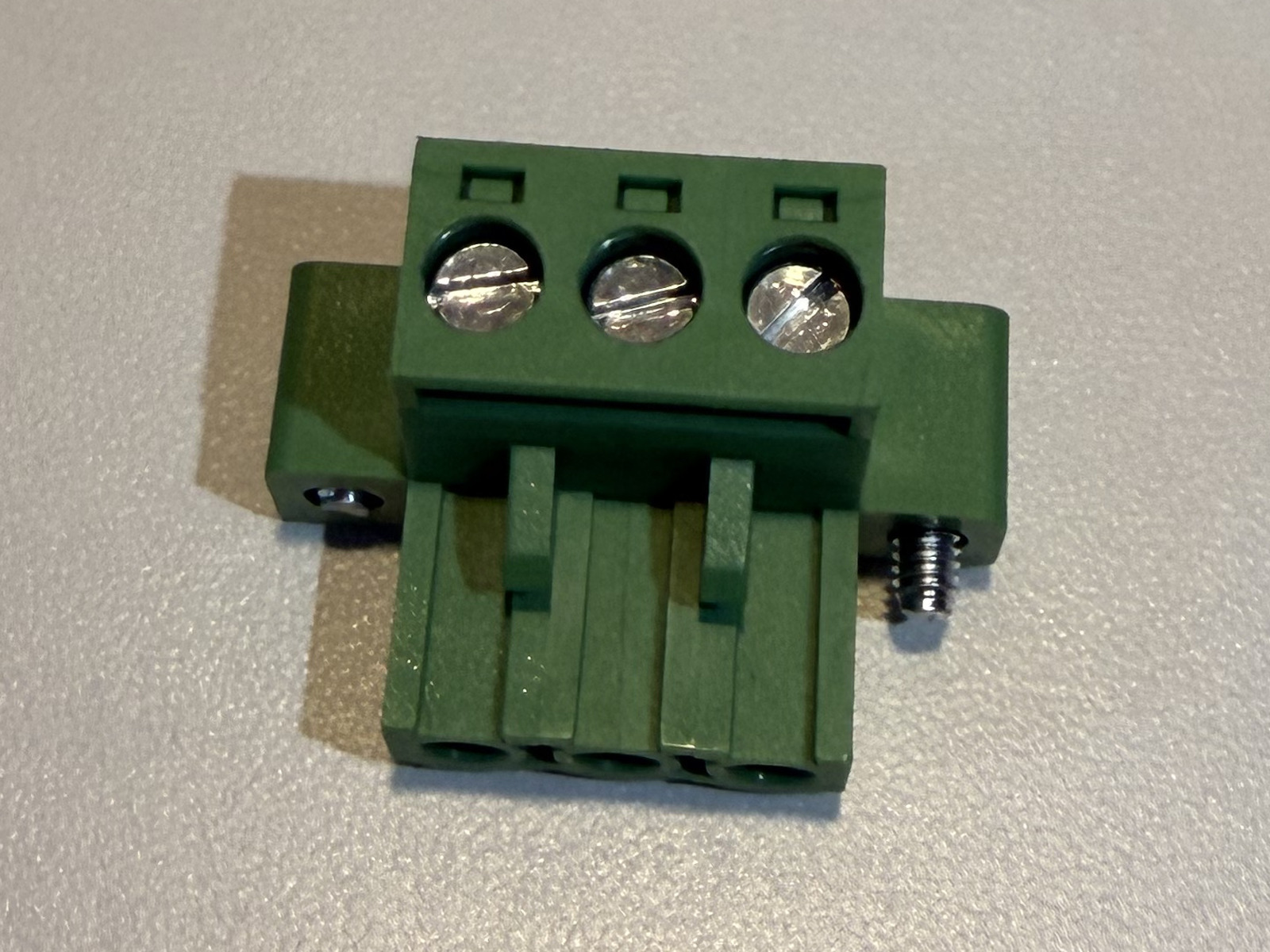

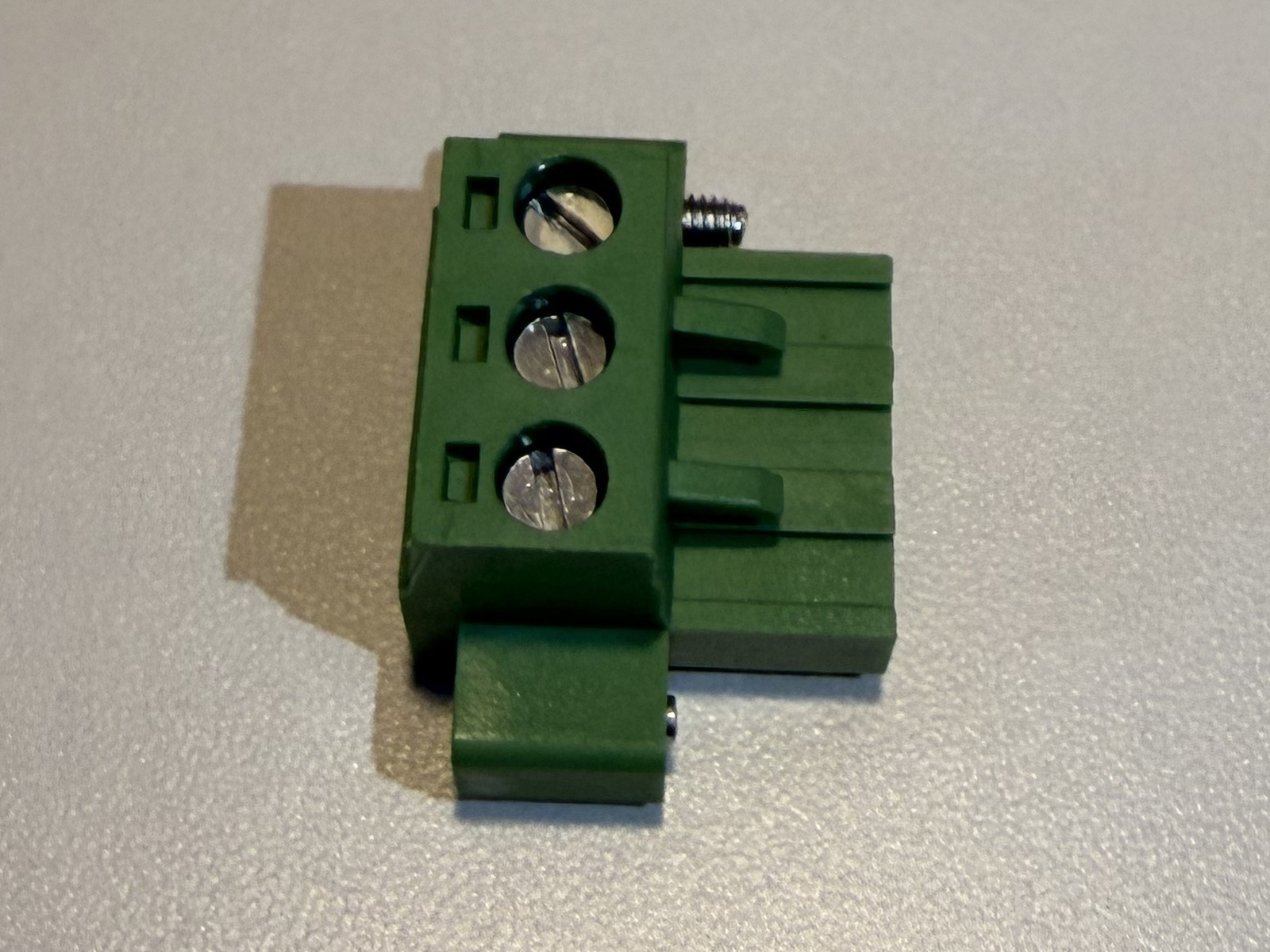

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DRAWING
Check dimensions before sample approval.
Review product dimensions, PCB layout and selection data. The final ordered configuration remains subject to confirmation.
TECHNICAL DATA
Selection reference for KF2EDGKM-5.08.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V (UL) / 320V (IEC)
- Rated current
- 15A (UL) / 20A (IEC)
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 5.08mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 28-12AWG (2.5mm²)
- Strip length
- 6-7mm
- Recommended torque
- 0.5Nm
- Screw
- M2.6
- Insulator
- PA66, UL94V-0
- Contact
- Phosphor bronze, nickel plated
- Standard color
- Green
