01 / 04PLUGGABLE TERMINAL BLOCKS
KF2EDG-7.62 Pin Header
Pluggable terminal block pin header
Wide-pitch, high-current male pin header

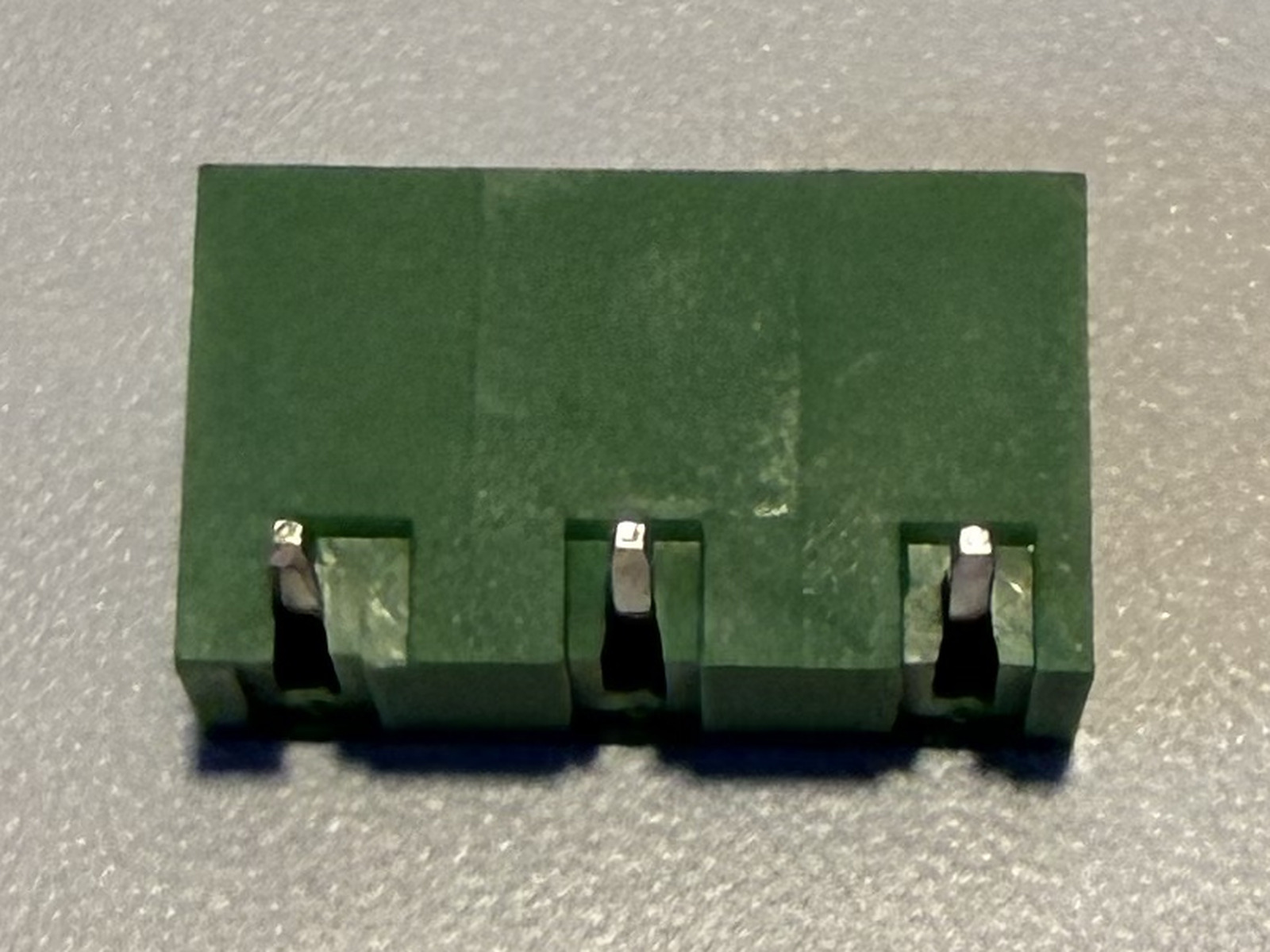

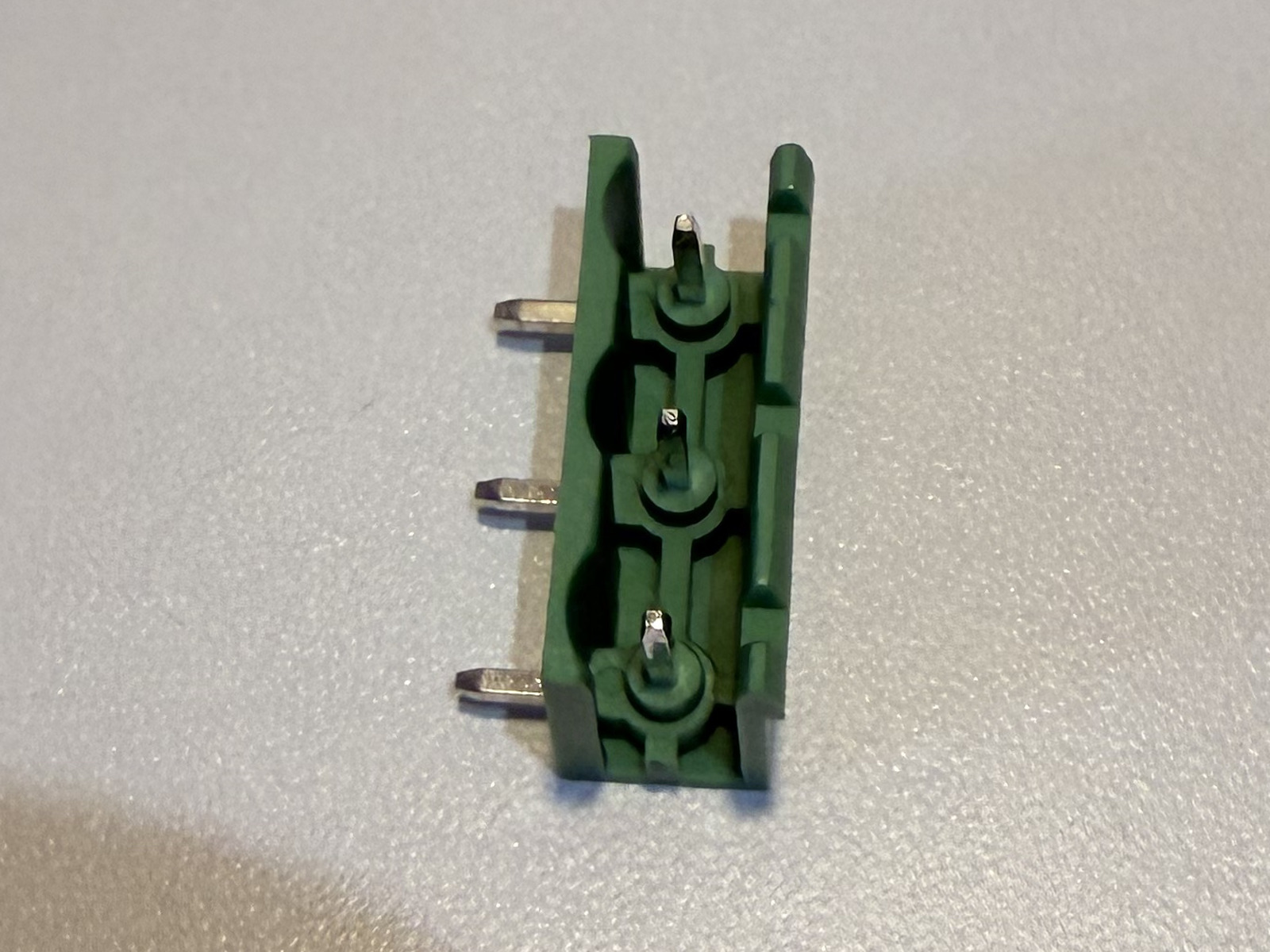

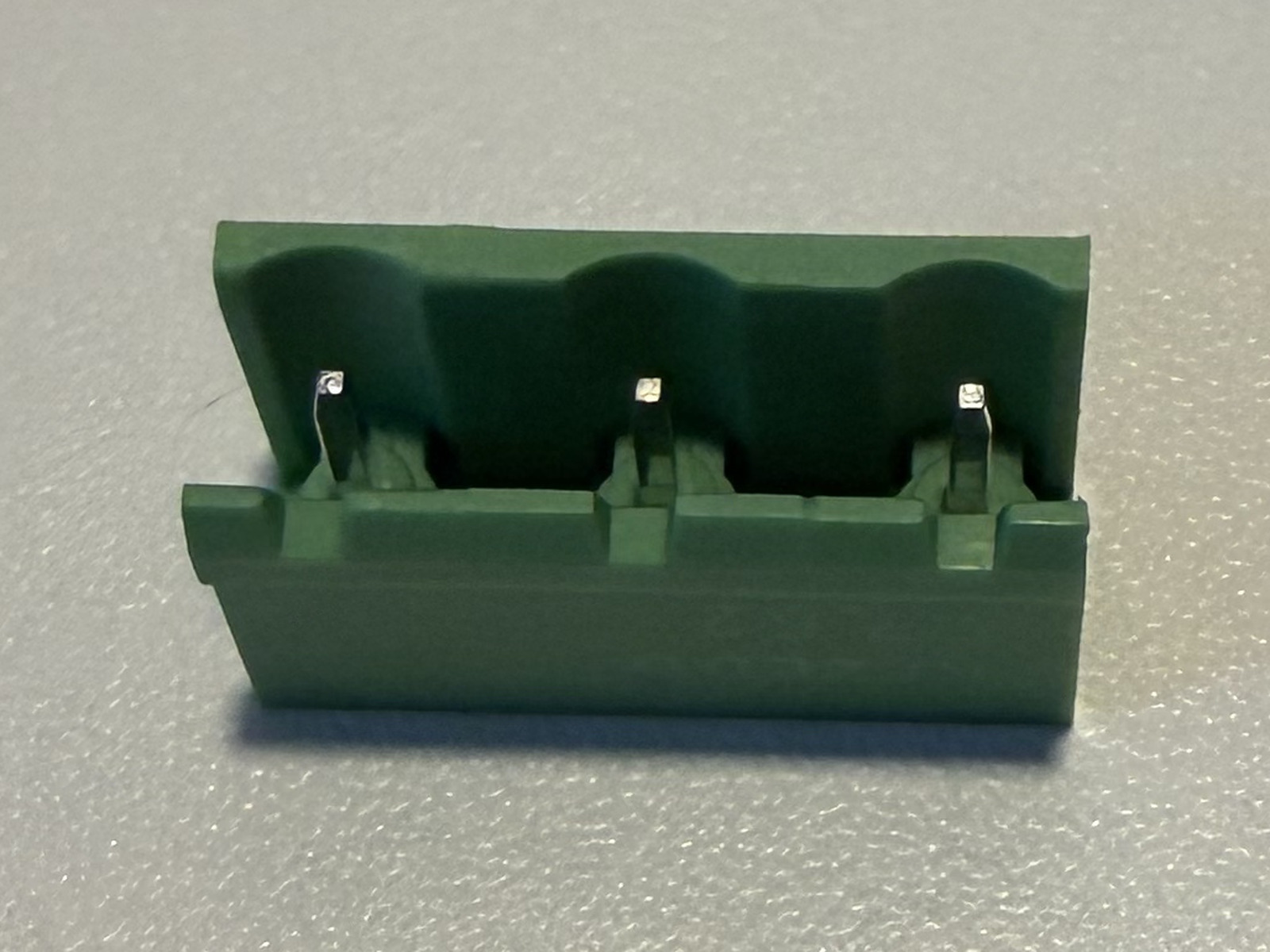

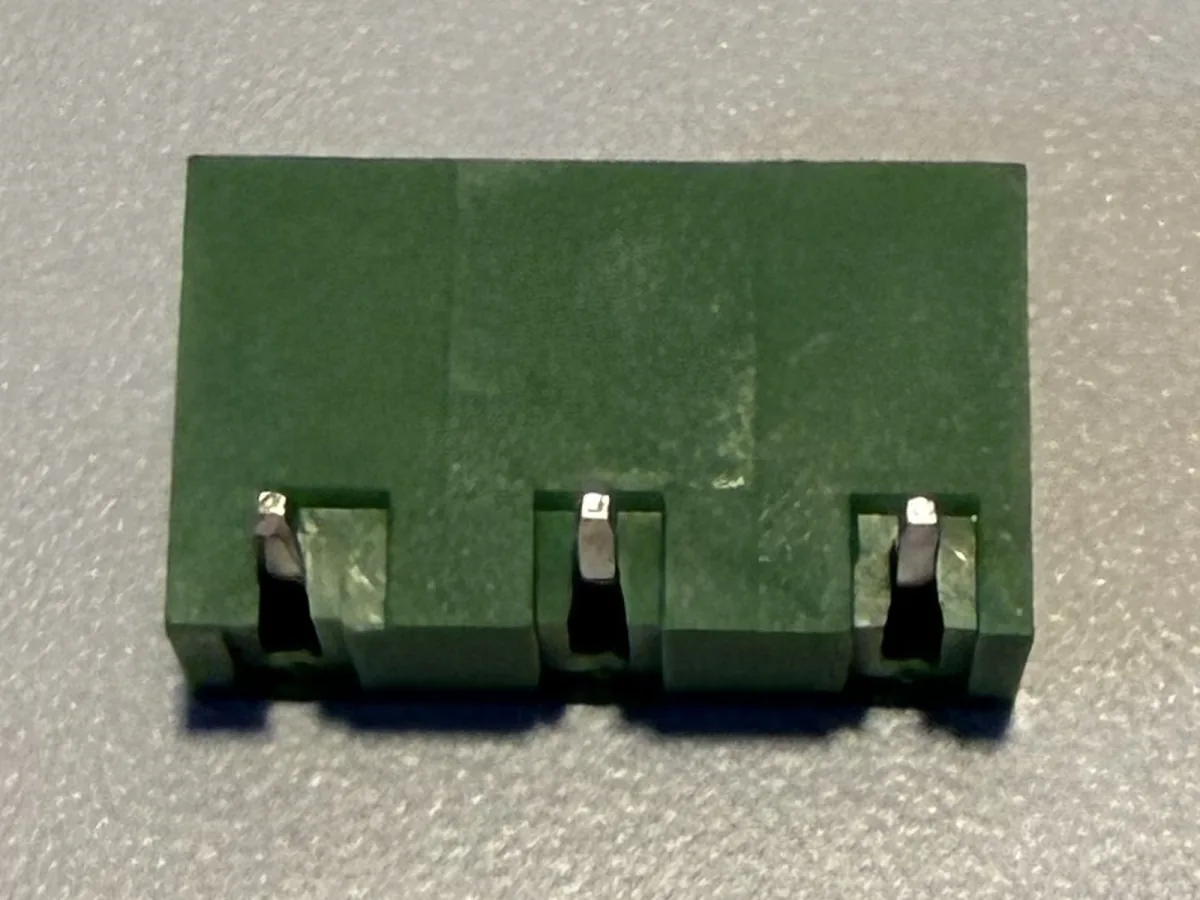

Inspect the connection from multiple angles.
Selection reference for KF2EDG-7.62 Pin Header.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V (UL) / 400V (IEC)
- Rated current
- 20A (UL) / 30A (IEC)
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC2000V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 7.62mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 24-10AWG (6.0mm²)
- Insulator
- PA66, UL94V-0
- Contact
- Brass, tin plated
- Standard color
- Green
PLUG & HEADER PAIR REQUEST
Need the mating half for KF2EDG-7.62 Pin Header?
The supplied catalog explicitly identifies this model as a pin header. The exact counterpart still depends on the complete model and suffix, position count, mating face, orientation, coding, latch or flange, ratings, drawings and a fully mated sample.
Pitch alone does not approve a counterpart. Keep an unknown model explicit so it can be resolved during supplier review.
- CURRENT REFERENCE
- KF2EDG-7.62 Pin Header
- CATALOG ROLE
- PCB HEADER REFERENCE
- REQUESTED EVIDENCE
- matching plug / terminal side + both drawings + mated sample
Continue within Pluggable.
Ranked from current catalog fields: same pitch first, then terminal/header role and mounting direction. These are comparison references, not confirmed substitutes or mating parts.
