01 / 03PLUGGABLE TERMINAL BLOCKS
KF15EDGOC-2.5
Spring-clamp pluggable terminal block
Push-button spring connection without screws
PITCH2.5mm
POSITIONS2P-24P
RATED VOLTAGE300V
RATED CURRENT6A

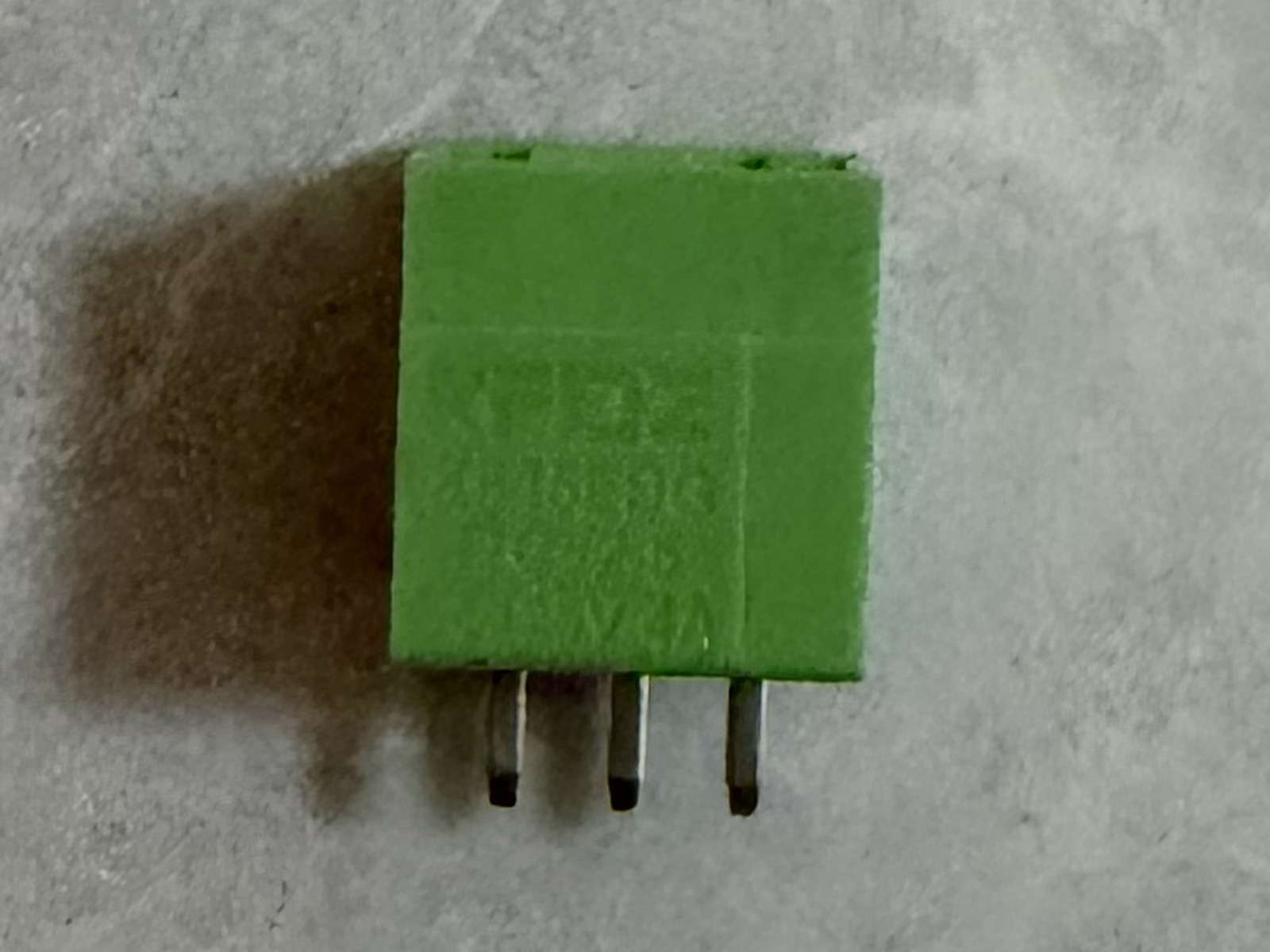

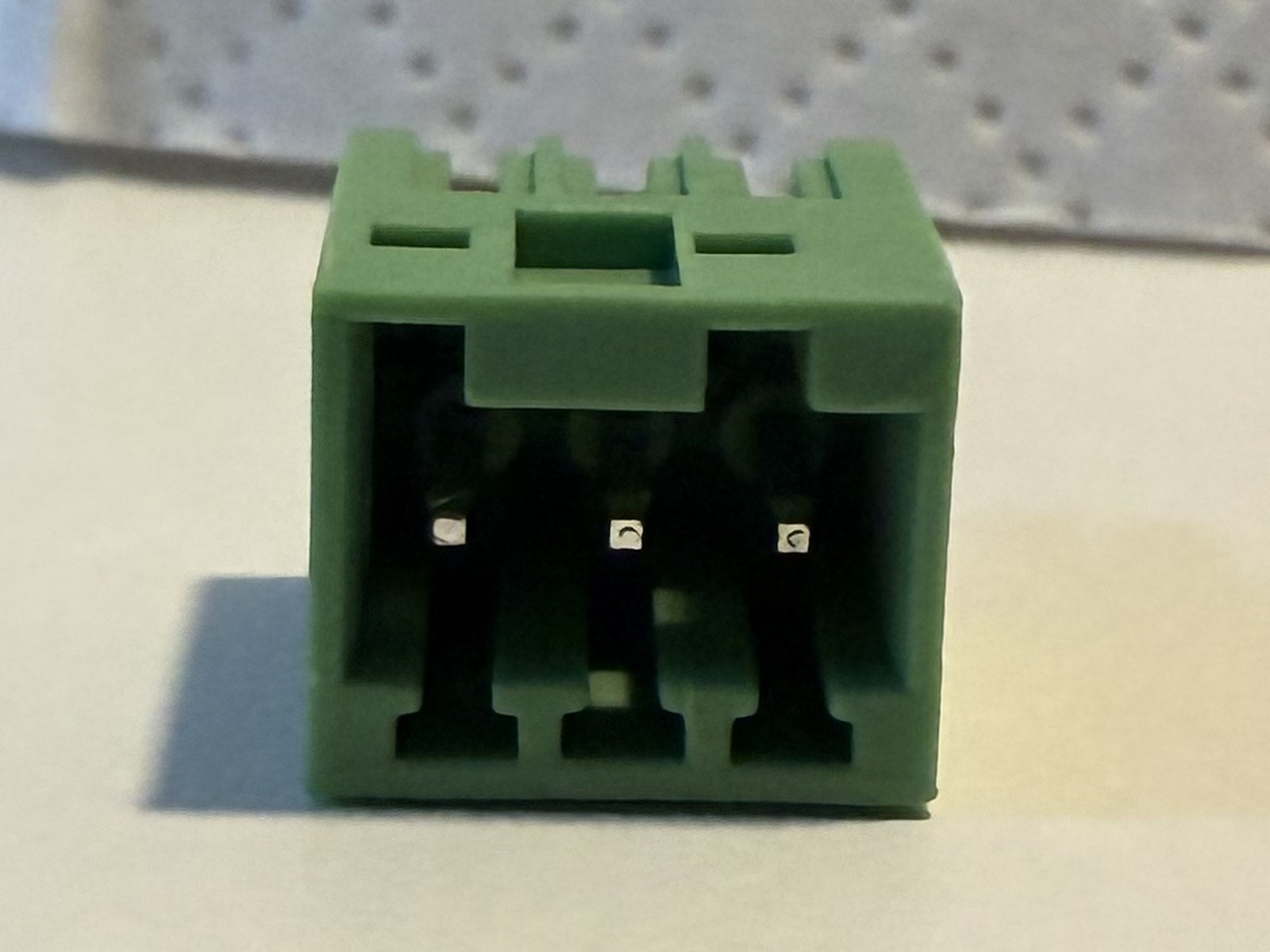

PRODUCT VIEWS
Inspect the connection from multiple angles.
TECHNICAL DATA
Selection reference for KF15EDGOC-2.5.
Values shown are supplied product data. Confirm the exact pole count, rating, materials and approval documents for your order.
- Rated voltage
- 300V
- Rated current
- 6A
- Contact resistance
- ≤20mΩ
- Insulation resistance
- ≥5000MΩ/1000V
- Withstand voltage
- AC1500V/1Min
- Operating temperature
- -40℃ ~ +105℃
- Pitch
- 2.5mm
- Positions
- 2P-24P
- Mounting
- Vertical PCB mount
- Wire range
- 28-18AWG (0.75mm²)
- Strip length
- 5mm
- Insulator
- PA66, UL94V-0
- Contact
- Spring steel, tin plated
- Standard color
- Green
